Steering axle cement beam transport truck with cylinder lock cement beam transporter low flat semi-trailer

Short Description:

The vehicle has a large load capacity, self-propelled, and transportation is not limited by distance. Reliable performance, complete safety facilities, reasonable structure of the whole machine, stable operation, comfortable operation, convenient maintenance, good anti-overturning stability, and high production efficiency. The operation is simple and convenient, and the operator only needs a simple training to be competent. The maintenance is convenient, and the accessories are all national standard parts.

Product name:Cement beam transport truck

Capacity:100t/ 150t

Engine power: 55kw/88kw


  • Brand Name: KORIG
  • Place of Origin: Henan, China
  • Customize Service: Available
  • Certification: CE ISO SGS
  • Min.Order Quantity: 1 set
  • Payment Terms: L/C, T/T, Western Union
  • Delivery Time: 20~30 Workdays
  • Supply Ability: 1000 Set/Month
  • Port of Shipment: Qingdao Port, Tianjin Port, Shanghai Port
  • Packaging Details: Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
  • Product Detail

    company information

    FAQ

    Product Tags

    Performance introduction

    It is mainly suitable for prefabricated beam yard and bridge erection site which is far away, not suitable for occasions where track laying or track laying cost is high. The brake system of the beam truck has a great adaptability to the longitudinal slope. The frictional resistance between the tire and the ground has a significant advantage over the track-type beam carrier.

    Universal gantry crane, highway bridge erection machine, railway special bridge erection machine, mobile formwork, railway beam lifter, box hydraulic inner mold, high frequency vibrator complete set of equipment, beam transport flat car can be used with these equipment

    Advantages

    1.380 hp engine
    2. Integral gearbox
    3. The width of the whole vehicle is 2.98 meters, and the stability is very good
    4. All beam trucks have brakes
    5. Crane steering machine, easy to master at a speed of 60 kilometers per hour
    6. Two-way driving system, push and pull beams are in the positive direction
    7.1200/24 tires, large load for mining

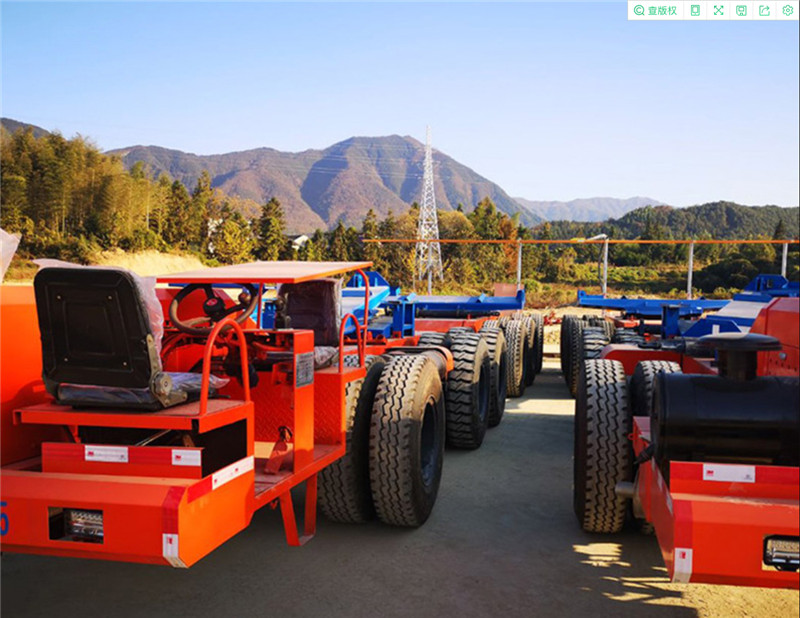

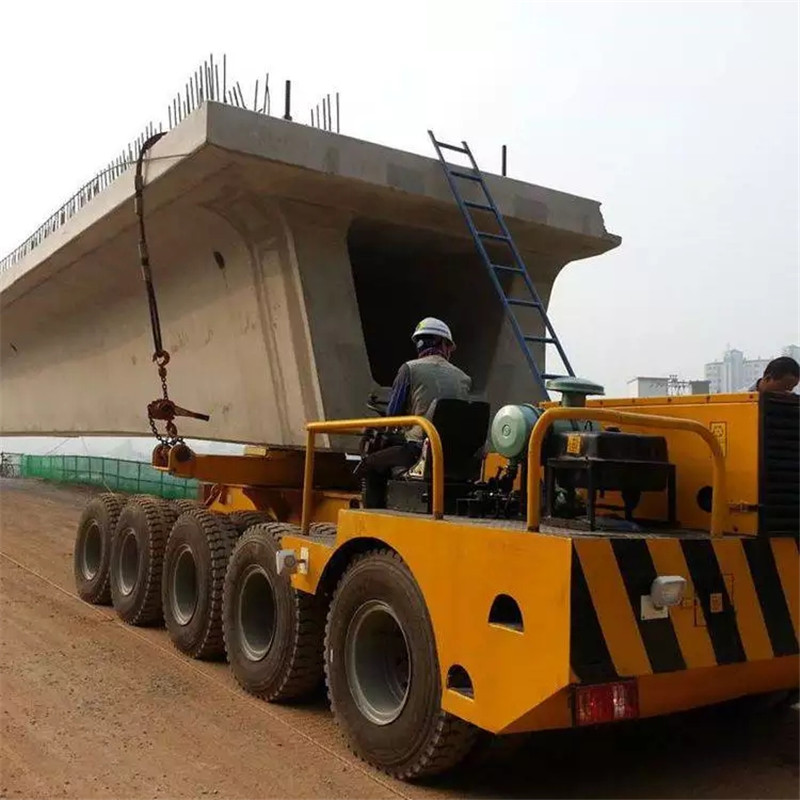

    Steering axle cement beam transport truck with cylinder lock cement beam transporter low flat semi-trailer  (5)

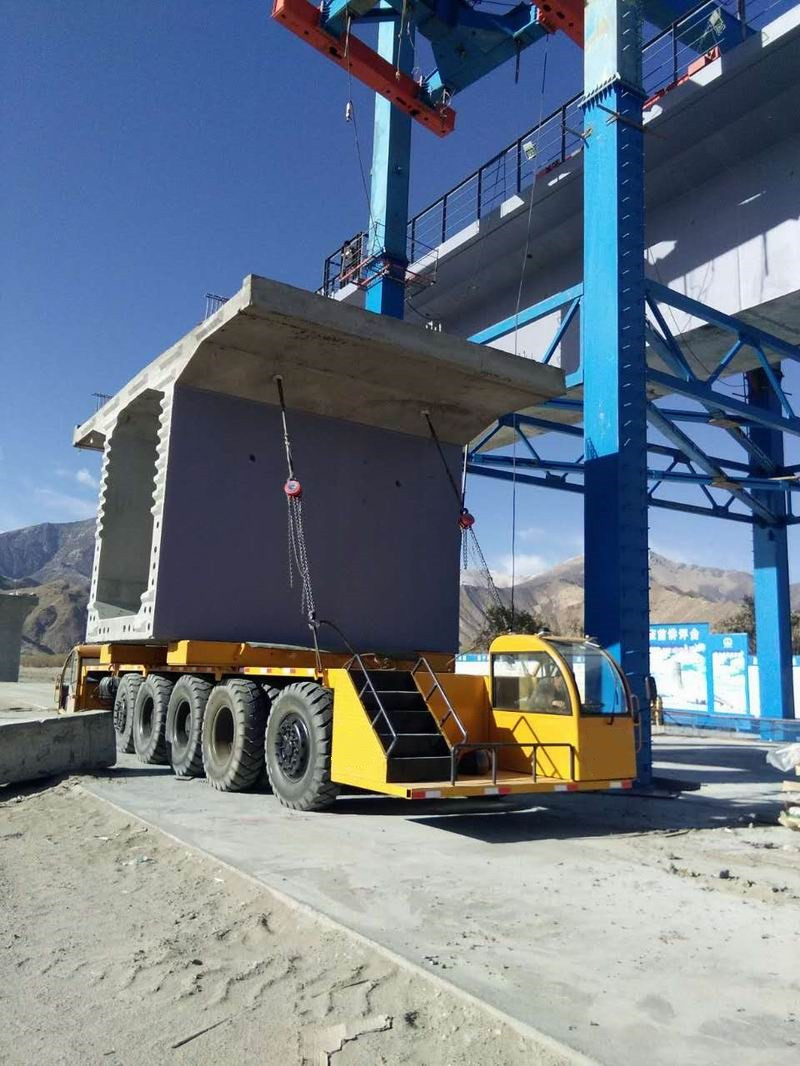

    Steering axle cement beam transport truck with cylinder lock cement beam transporter low flat semi-trailer  (3)

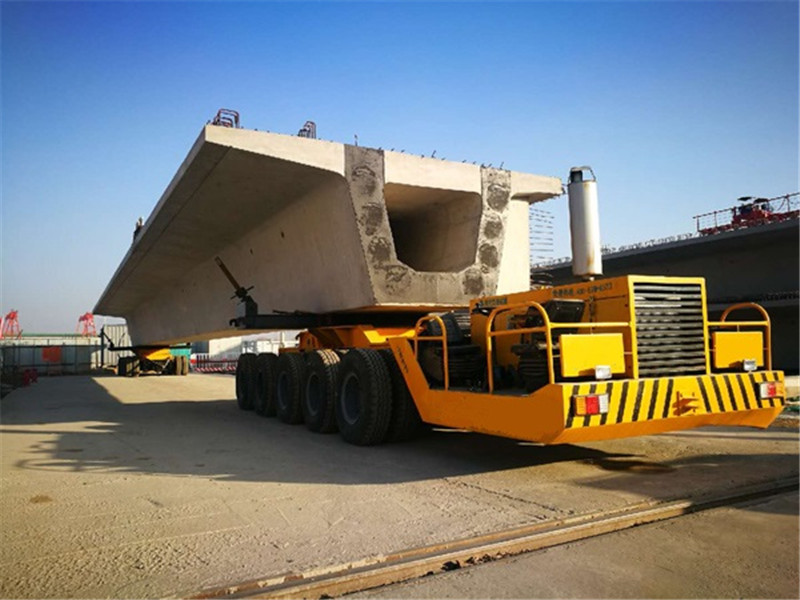

    Steering axle cement beam transport truck with cylinder lock cement beam transporter low flat semi-trailer  (3)

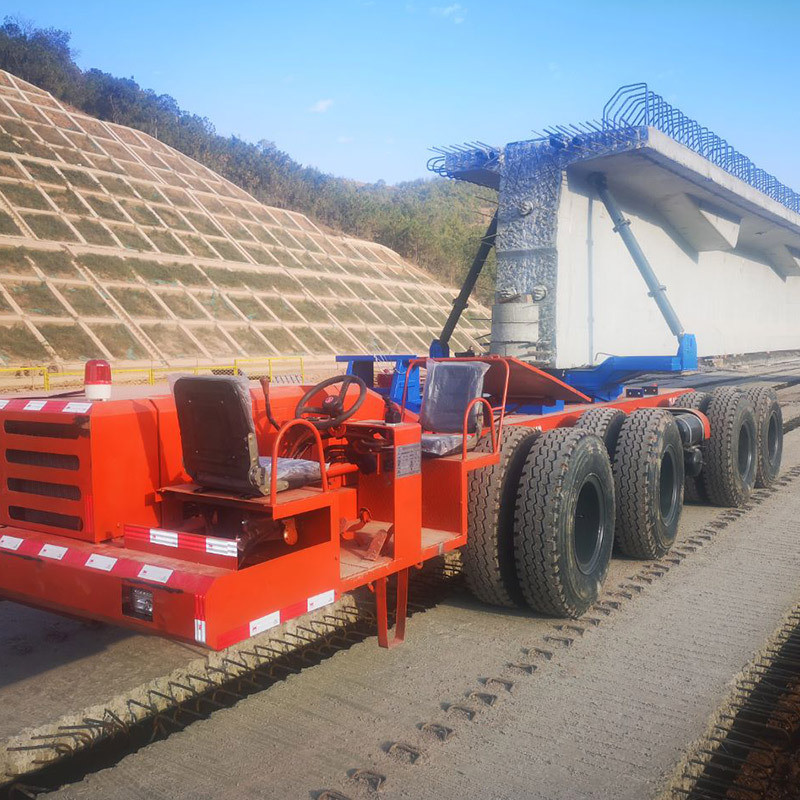

    Steering axle cement beam transport truck with cylinder lock cement beam transporter low flat semi-trailer  (4)

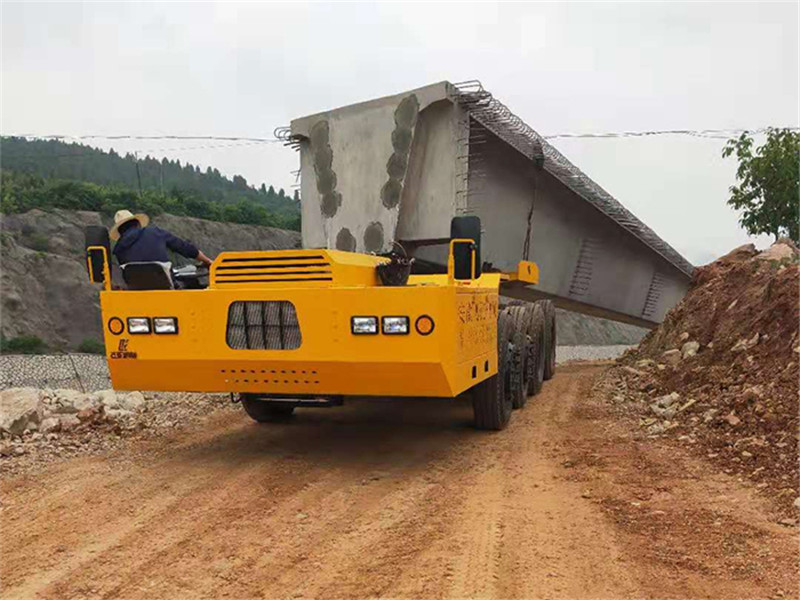

    Steering axle cement beam transport truck with cylinder lock cement beam transporter low flat semi-trailer  (2)

    Operating procedures

    1. Loading beams, bundling

    1. The beam transporter is parked on one side of the beam plate, and the main and auxiliary vehicles are parked in suitable positions.

    2. The gantry crane lifts and translates the beam plate to the top of the beam transporter, and slowly lowers the beam plate on the beam transporter.

    3. The bundling personnel support the 4 reinforced support rods of the beam transporter--after adjusting the screw rods to the tightened state--the gantry lifting hook is completed to install the beam.

    4. Use four wire ropes and four hoists for final reinforcement of the beam plate.

    5. Check the tightness of the struts and wire ropes before starting the car. After meeting the requirements, start the vehicle and drive out of the beam field at a low speed.

    2. Transportation and feeding beams

    1. When driving with heavy loads, the straight line speed is 15~50 kilometers per hour; the turning speed is 3 kilometers per hour. When passing bridges and ramps, you must drive at a constant speed and steadily, and rapid acceleration and sudden braking are strictly prohibited.

    2. Auxiliary personnel check the beam position and the tightness of the wire rope every 5 kilometers during transportation.

    3. The main and co-pilots have a walkie-talkie to maintain communication at any time.

    4. When the beam transporter drives under the bridge erecting machine, first remove the hoist wire ropes of the main and auxiliary cars. The bridge erecting machine hangs the lifting beam wire ropes and then releases the main car support rod. The bridge erecting machine lifts one beam plate of the main car to a suitable height. The auxiliary car hangs and feeds the beam at the same speed with the overhead crane of the bridge erecting machine.

    5. The end of beam feeding The bridge erection machine hangs the wire rope for lifting the beam first, the beam transporter lifts the auxiliary car strut and hoist, the bridge erection machine lifts the beam plate and feeds the beam by itself, and the beam transporter returns to load the beam.

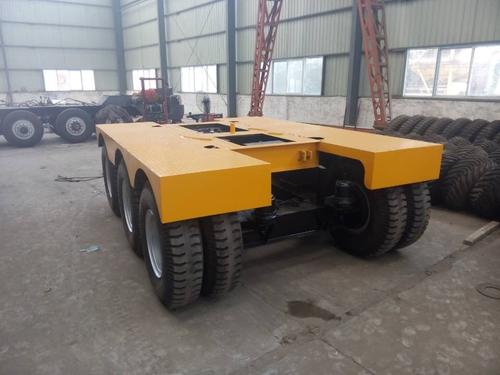

    • about us
