Hydraulic RTG Crane Container Rubber Tyre Gantry Crane Straddle carrier

Short Description:

Product name: Container Rubber Tyre Gantry Crane

Capacity: 36—50t Under Hoisting Device

Working duty: A7

Lifing height: 6-30m

Max lifting Velocity: 12-20m/min

It can work independently, or two units work synchronously to lift longer items.


  • Brand Name: KORIG
  • Place of Origin: Henan, China
  • Customize Service: Available
  • Certification: CE ISO SGS
  • Min.Order Quantity: 1 set
  • Payment Terms: L/C, T/T, Western Union
  • Delivery Time: 20~30 Workdays
  • Supply Ability: 1000 Set/Month
  • Port of Shipment: Qingdao Port, Tianjin Port, Shanghai Port
  • Packaging Details: Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
  • Product Detail

    company information

    FAQ

    Product Tags

    Features

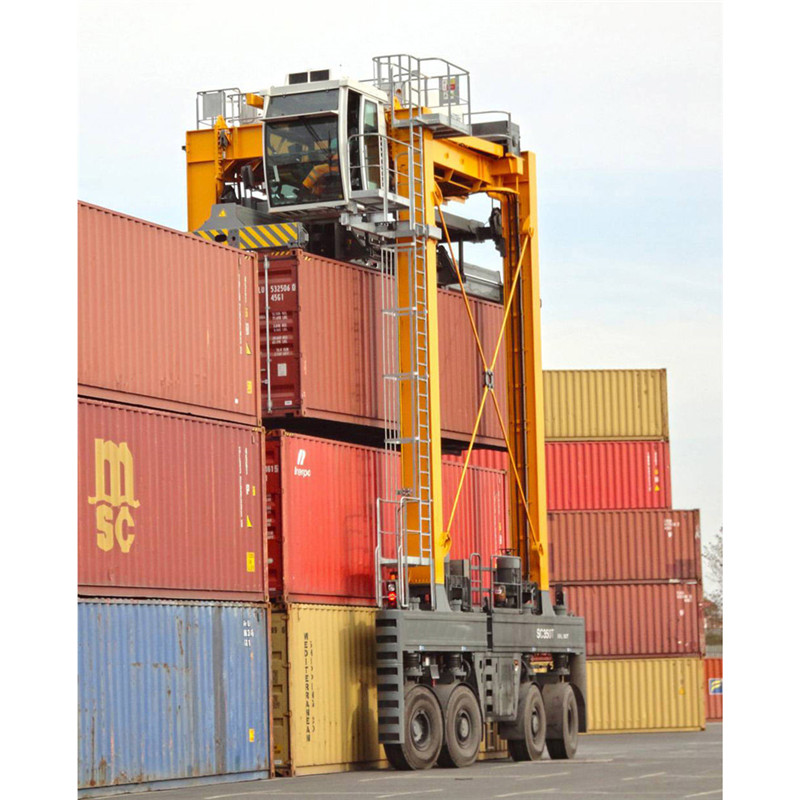

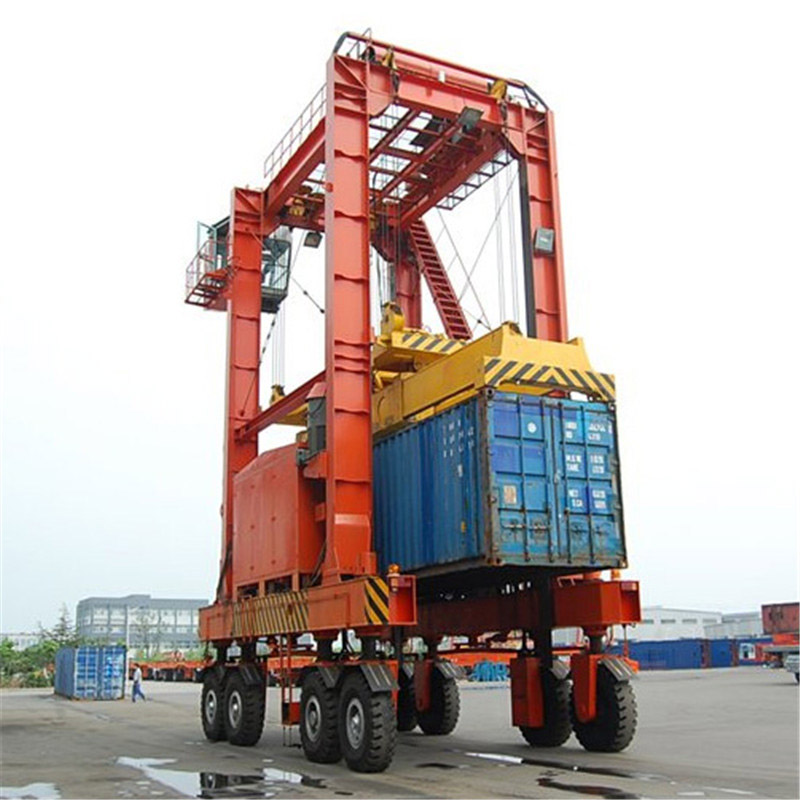

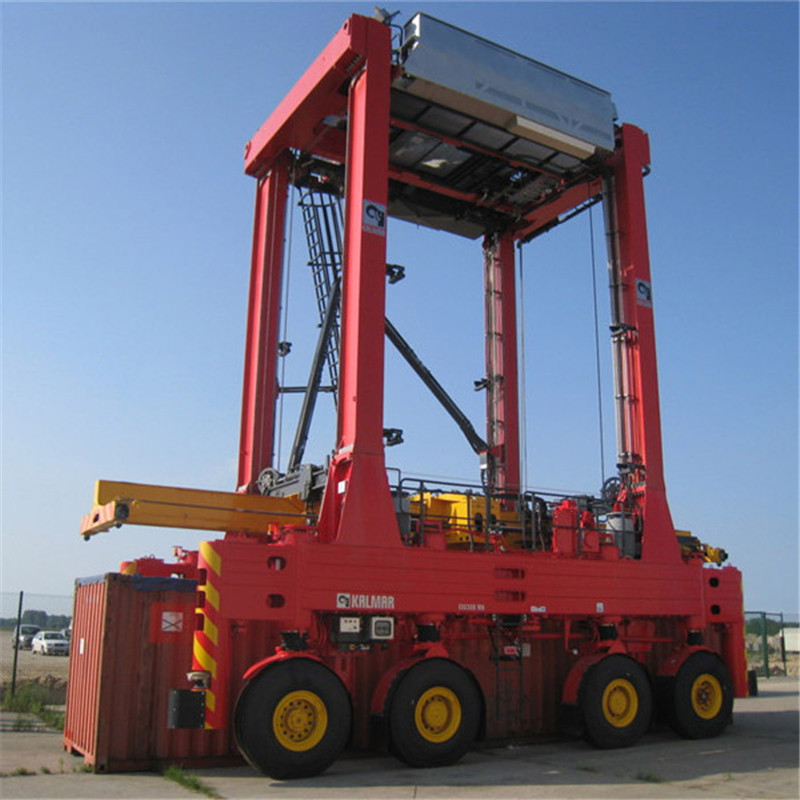

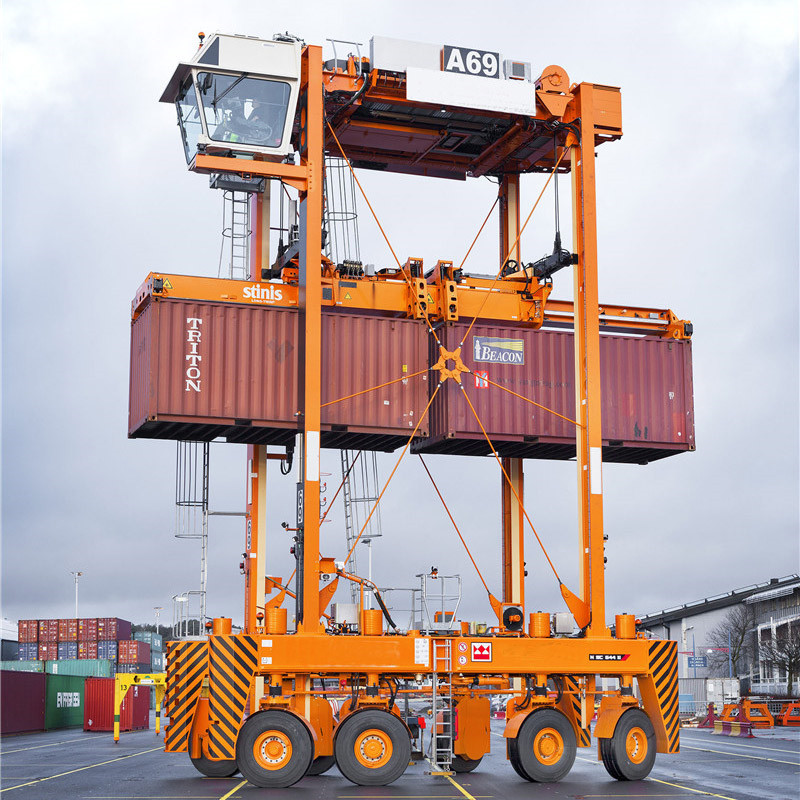

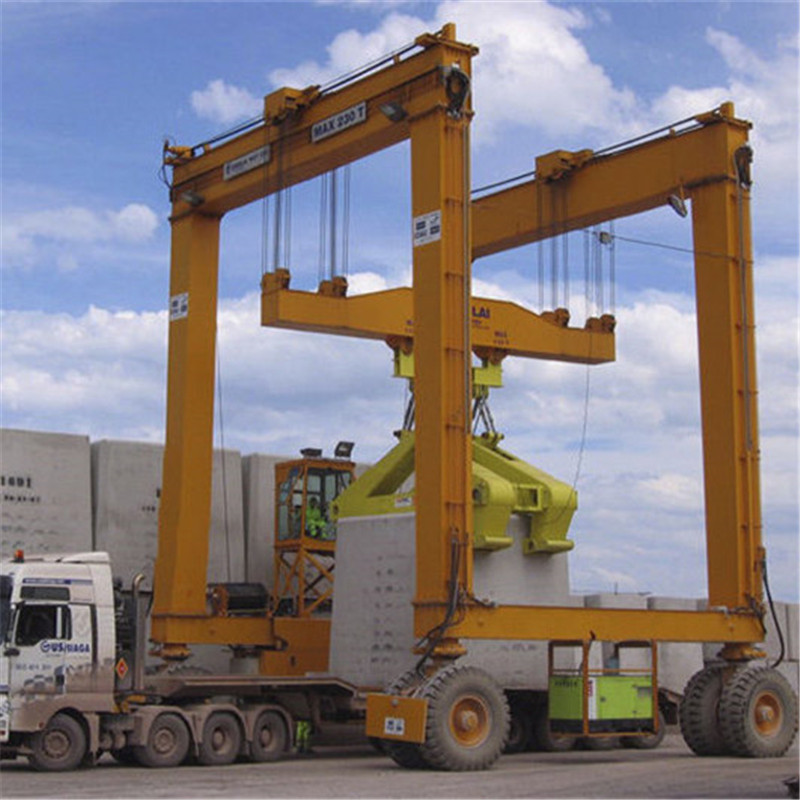

    Straddle carrier gantry crane also called industrial straddle carriers, it is mainly used to help clients to lift, move, load, unload, erect, transfer heavy material horizontally and vertically without rails restrictions,
    such as: precast concrete beams, long concrete beam, pipes, wall, handling plates, slab;

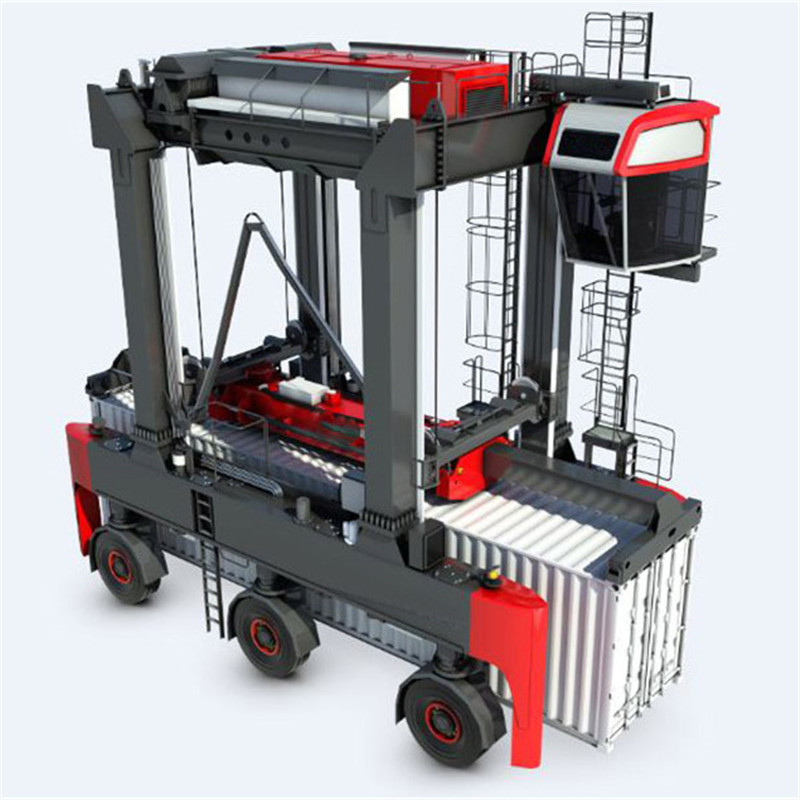

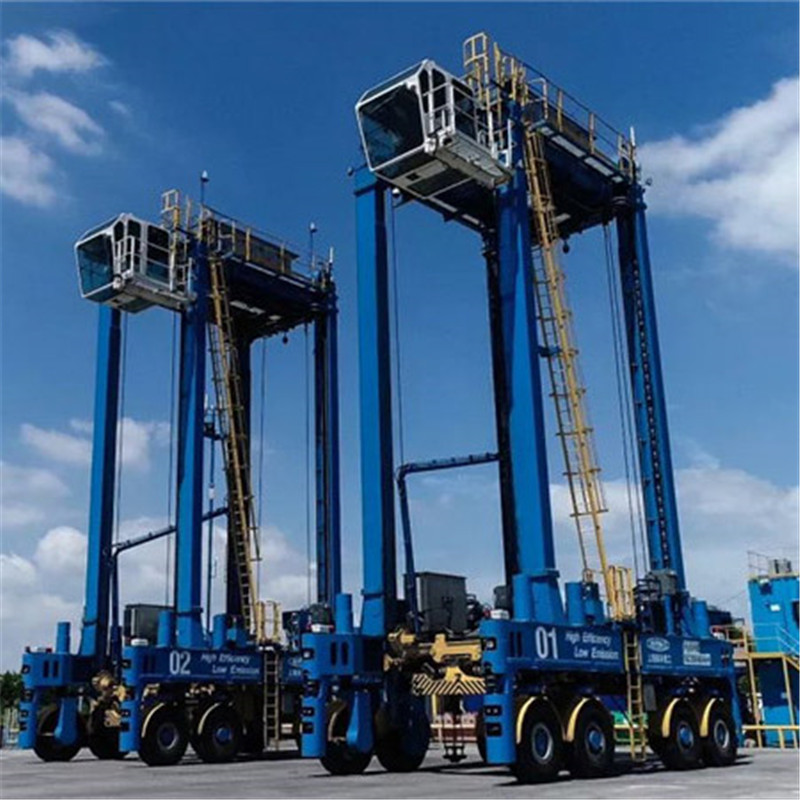

    Our straddle carriers are stable and reliable, with high performance. They are high-efficiency machines for straddle carrier terminal operations. They can be stacked in two ways: 3-stack 2 and 4-stack 3. Suitable for “shore to yard” container transport operations. The product is short, flexible and reliable, making it very attractive for operators of automated container terminals.

    parameter

    Crane Working Level A7
    Rated Lifting Weight 36—50t Under Hoisting Device
    Rail Torque 18m
    Effective Hanging Arm 6.5m Both Sides
    Lifting Height 6–30m
    Max lifting Velocity Full load12m/min,NO Load20m/min
    Gantry Traveling Velocity Full Load≥55m/min
    Trolley Traveling Velocity Full Load≥60m/min
    Trolley Slewing Velocity 1.01.5n/m
    Trolley Slewing Angle -10°+190°
    Max Wheel PressIn The Worst Working Condition ≤25t
    Net Length Between Supporting Legs ≥7.6m
    Anti-shaking Device Flexible Anti-shaking
    Hoisting Device 20ft 40ft 45ft,50ft Fixed Lead Board Liquid-press Flexibility
    Way To Power Supply 3-Phase 4Line Lead Power Supply:   380v/415v/440v   50Hz
    Maintenance Hoist Rated Lifting Capacity 2t or 5t  Meet Maintenance Required

    strong control

    Electro-hydraulic steering system for very good control of the machine touching the driving surface and loading and unloading containers. The steering system precisely adjusts the wheels to ensure directional stability and reduce tire wear.

    comfortable driving experience
    The chassis is equipped with six or eight independently suspended wheels, each with its own maintenance-free (lubrication-free) suspension system. The design of the suspension system is based on a special alignment between the spring elements and bearings in order to effectively control the movement of the lever during driving and braking, thus ensuring excellent stability in all driving conditions.

    Designed for lifting

    The hoisting motor, drum and gear box of the hoisting system cooperate with each other to achieve a real balance in the hoisting operation. Our straddle carrier lifting systems are renowned and field-proven in our RTG and rail-mounted gantry cranes.

    Our straddle carrier lifting systems reliably lift safe working loads with spreaders up to 50 metric tons. The hanging beam is very sturdy. In the event of a collision, the forces are transmitted to specially designed bolts, which break in a controlled manner, reducing damage and downtime.

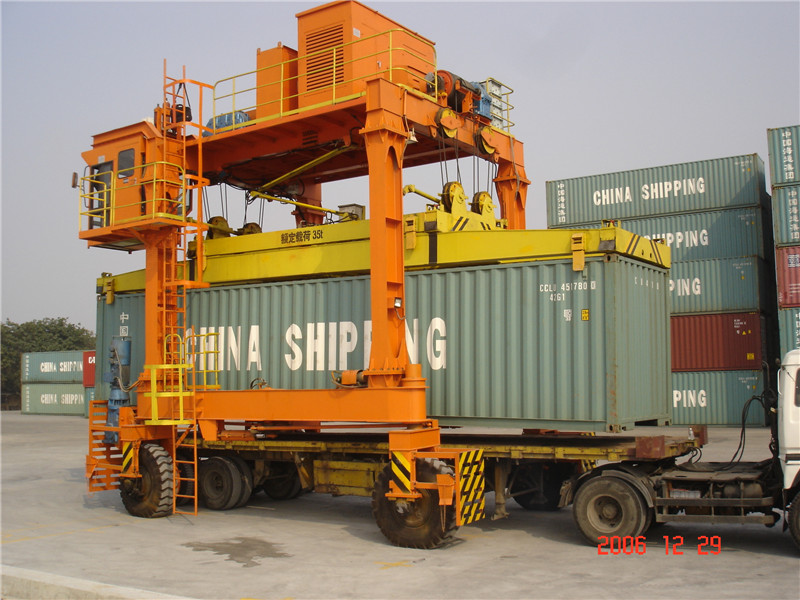

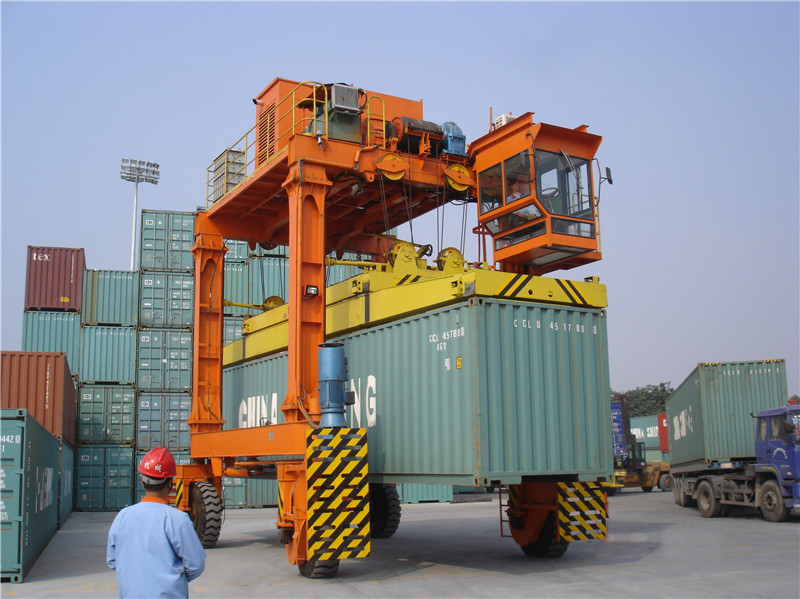

    • Container-Straddle-Carrier-Crane

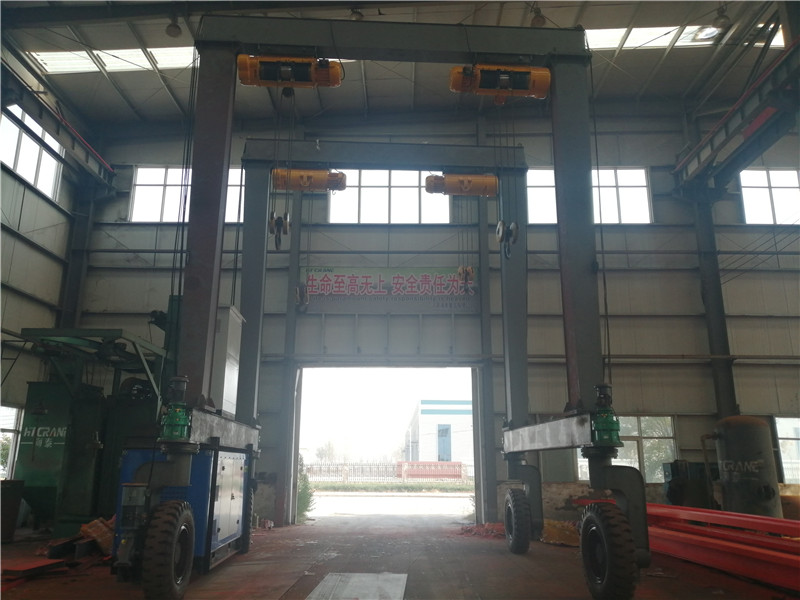

    • Container-Straddle-Carrier-Crane

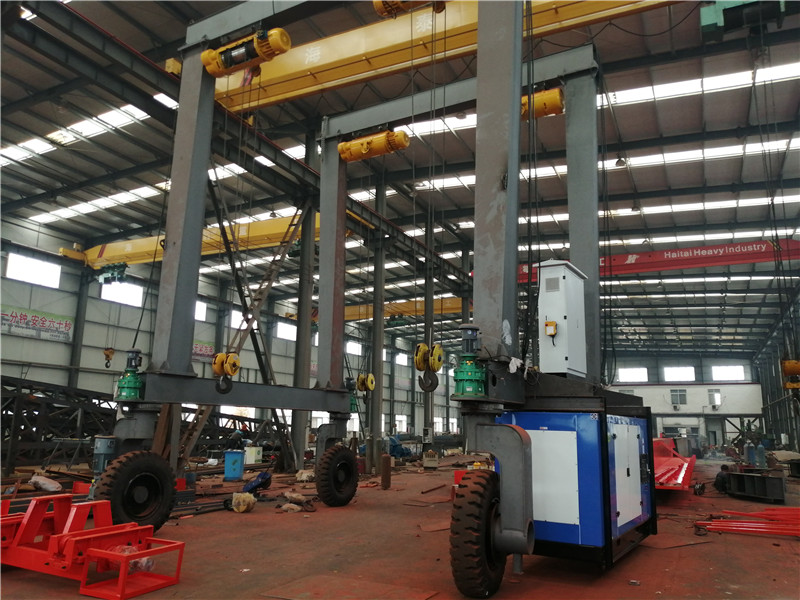

    • Container-Straddle-Carrier-Crane

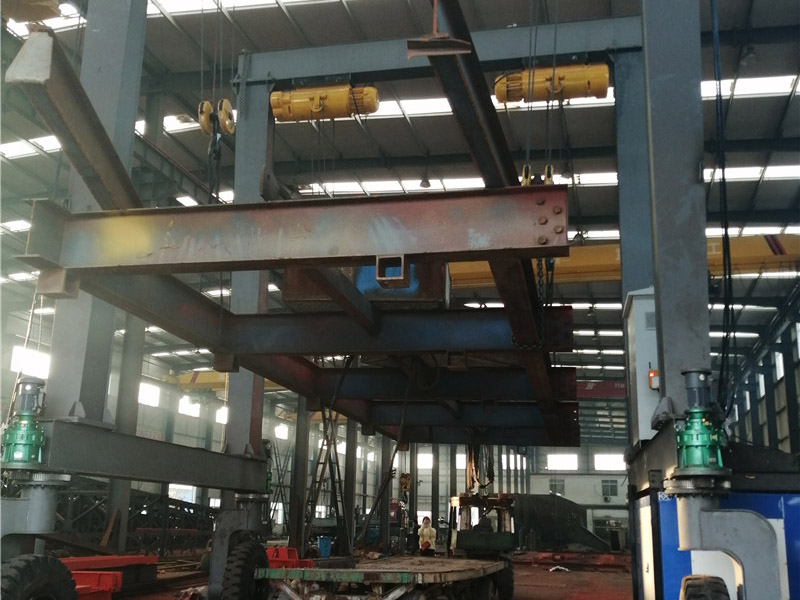

    • Container-Straddle-Carrier-Crane
    • Container-Straddle-Carrier-Crane

  • Previous:
  • Next:

  • About KORIGCRANES

    KORIGCRANES ( HENAN WEIHUA KORIG CRANES CO., LTD) located in crane hometown of China (cover more than 2/3 crane market in China), who is a trusted professional industry crane manufacturer and leading exporter. Specialized in design, manufacturing, installation and service of Overhead crane, Gantry crane, Port crane, Electric hoist etc, we have passed ISO 9001:2000, ISO 14001:2004, OHSAS 18001:1999, GB/T 19001-2000, GB/T 28001-2001, CE, SGS, GOST, TUV, BV and so on.

    Product Application

    To meet the demands of the oversea market, we independent research and development European type overhead crane, gantry crane; electrolytic aluminum multi-purpose overhead crane, hydro-power station crane etc. European type crane with light dead weight, compact structure, lower energy consumption etc. Many main performance reach the industry advanced level.
    KORIGCRANES Widely used in machinery, metallurgy, mining, electric power, railway, petroleum, chemical, logistics and other industries. Service for hundreds of large enterprises and national key projects such as China Datang Corporation, China Guodian Corporation, SPIC, Aluminum Corporation Of China(CHALCO), CNPC, Power China, China Coal, Three Gorges Group, China CRRC, Sinochem International, etc.

    Our Market

    Our cranes has been exported cranes to more than 110 countries for example Pakistan, Bangladesh, India, Vietnam, Thailand, Indonesia, Philippines, Malaysia、USA, Germany, France, Australia, Kenya, Ethiopia, Nigeria, Kazakhstan, Uzbekistan, Saudi Arabia、UAE、Bahrain、Brazil, Chile, Argentina, Peru etc and received good feedback from them. Very happy to be friends with each other come from all of the world and hope to establish long-terms good cooperation.

    KORIGCRANES has steel pre-treatment production lines, automatic welding production lines, machining centers, assembly workshops, electrical workshops, and anti-corrosion workshops. Can independently complete the whole process of crane production.

    Q. What’s the information should I provide when inquiry?
    More details or drawings, better.
    A: Lift capacity B: span C: lift height D: power source; other specials you give us will be more appreciated.

    Q. How many operating methods for my selection?
    Standard operating methods:
    A: remote control with push buttons
    B: cabin (space capsule seat) control with joystick. Choose any type as you like.

    Q. Can this type work in hazardous environment?
    A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.

    Q. Can you provide the serious lifting tools?
    A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!

    Q. How can we install the crane?
    A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
