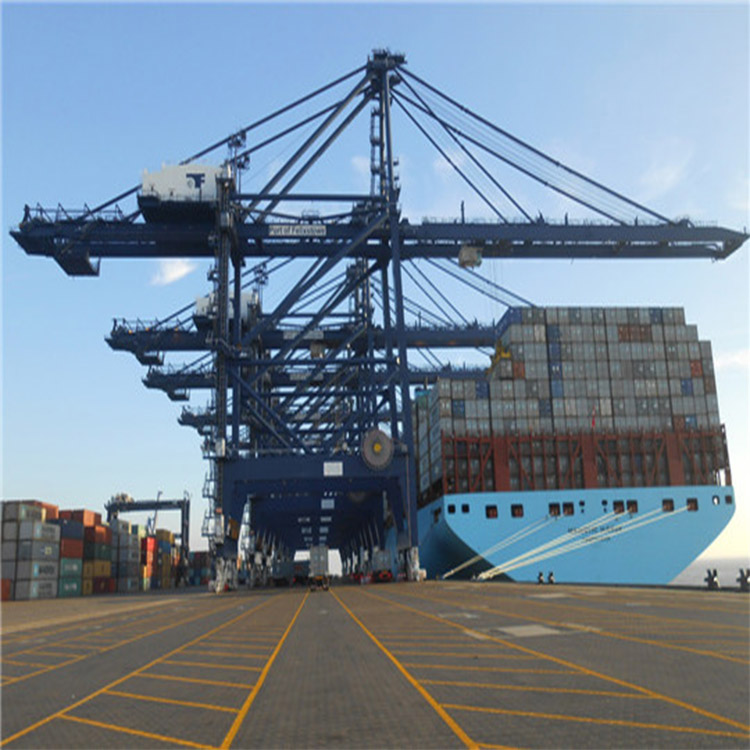

Ship to Shore Container Gantry Crane (STS)

Short Description:

The ship to shore container crane is a container handling crane installed at large dockside for loading and unloading ship-borne containers to the container trucks. The dockside container crane is composed of a supporting frame that can travel on a rail track. Instead of a hook, the cranes are equipped with a specialized spreader which can be locked on the container.

Product Name: Ship to Shore Container Gantry Crane
Capacity: 30.5tons,35tons,40.5tons,50tons
Span:10.5m~26m
Outreach:30-60mContainer size: ISO 20ft,40ft,45ft


  • Brand Name: KORIG
  • Place of Origin: Henan, China
  • Customize Service: Available
  • Certification: CE ISO SGS
  • Min.Order Quantity: 1 set
  • Payment Terms: L/C, T/T, Western Union
  • Delivery Time: 20~30 Workdays
  • Supply Ability: 1000 Set/Month
  • Port of Shipment: Qingdao Port, Tianjin Port, Shanghai Port
  • Packaging Details: Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
  • Product Detail

    company information

    FAQ

    Product Tags

    Description

    Ship to shore container cranes (abbreviation STS), mainly composed of luffing mechanism, lifting mechanism,crane traveling mechanism, trolley traveling mechanism, machinery room, spreader, electrical equipment and other necessary safety and auxiliary equipment.
    Depending on the type of trolley, the model is divided into traction, semi-traction, self-propelled, with the adoption of PLC control systems and CMMS automatic-fault monitoring and diagnostic functions, there is sufficient communication and lighting.

    Features of STS

    1.Handle 20ft,40ft,45ft container.
    2. All mechanism are interlock to ensure operation safety;
    3.Wind cable,electric hydraulic rail clamp,anchor, lighting rod etc.as safety device.
    4. PLC control, AC frequency speed control, stable and reliable running;
    5. Diesel engine power ;
    6. Adequate protection devices, communication and lighting system.
    7.Crane Monitoring Management system (CMS) to monitor each mechanism working condition and fault diagnose;

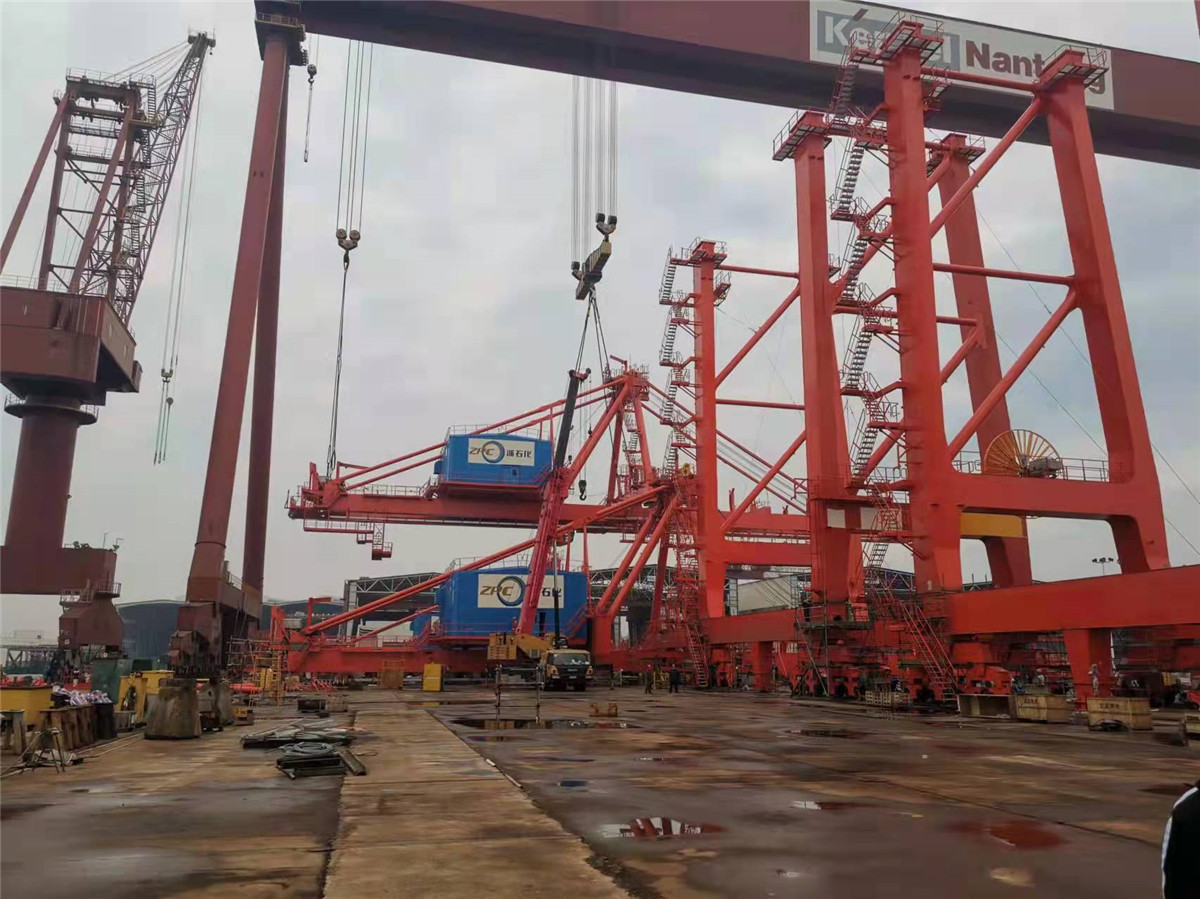

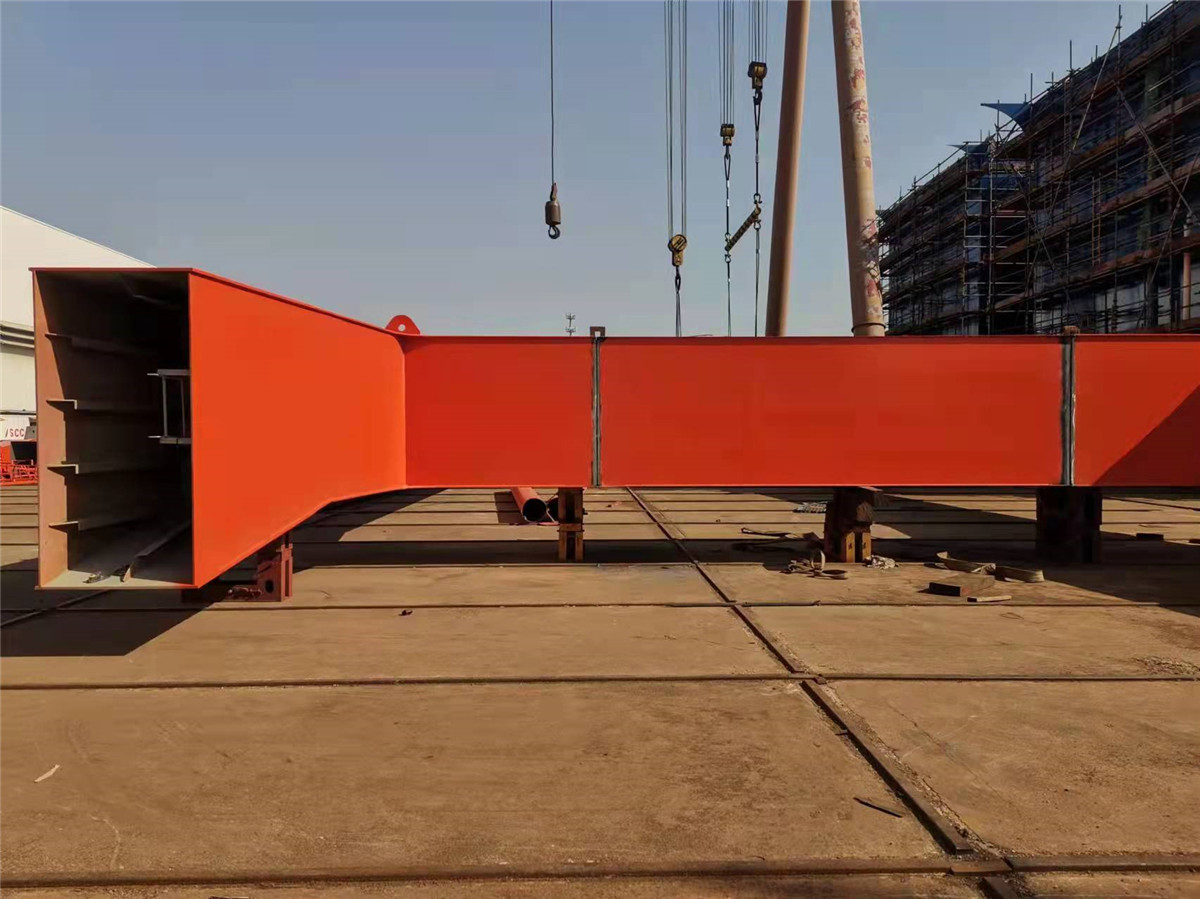

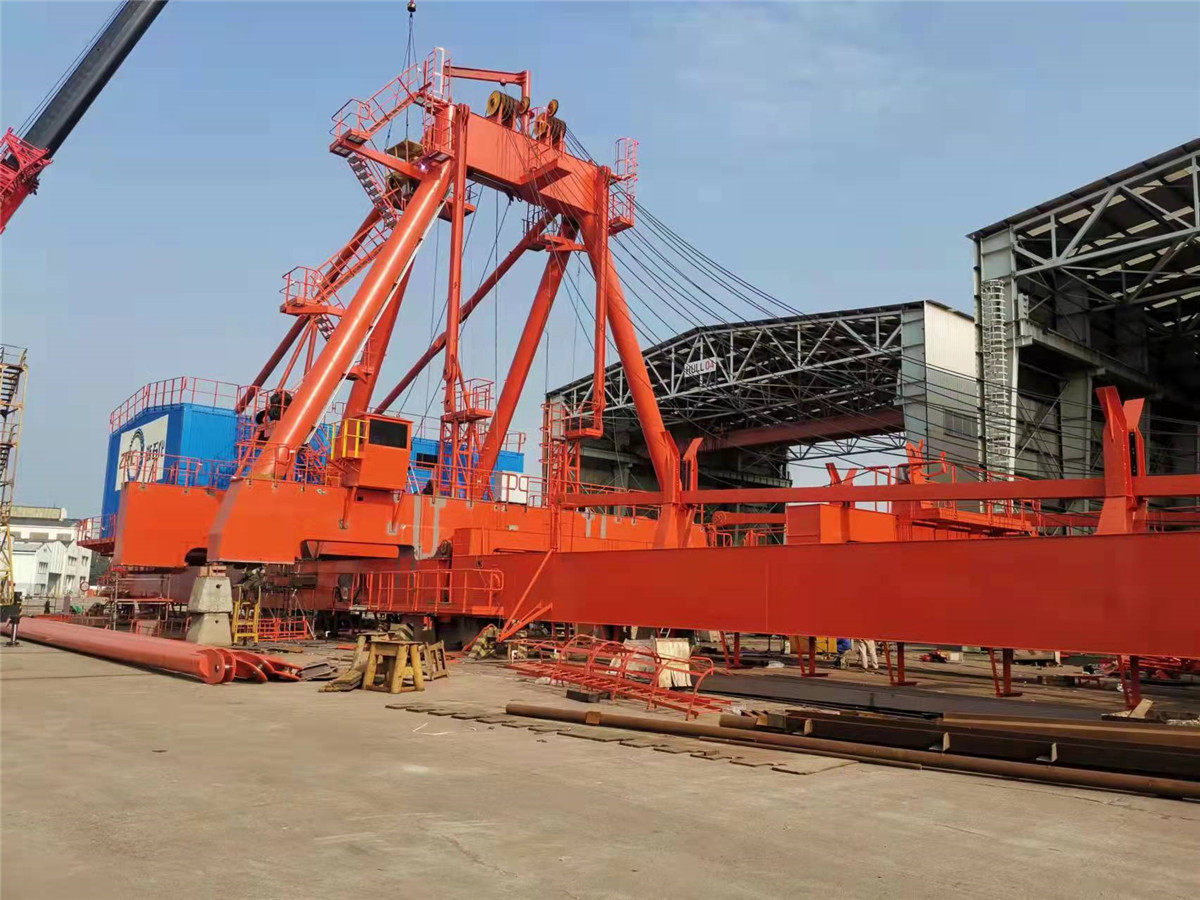

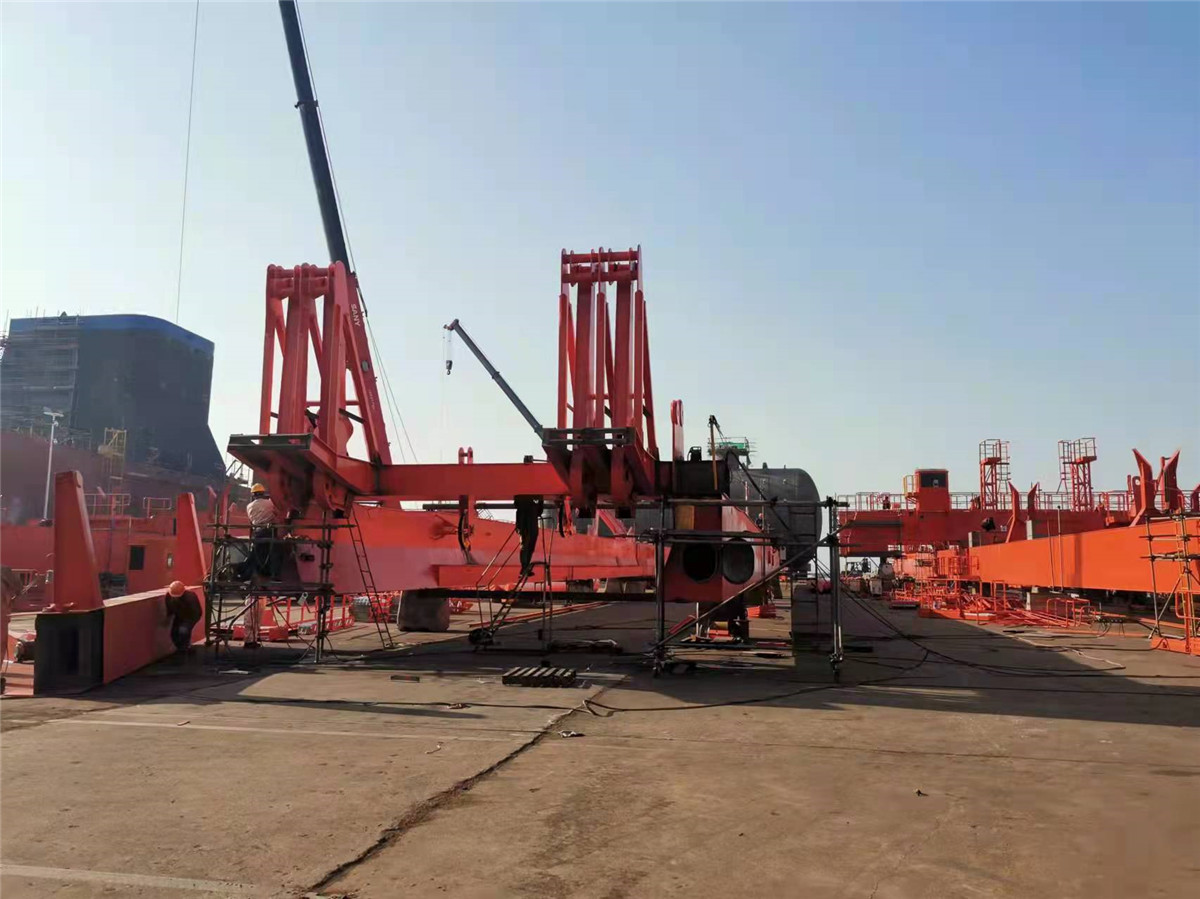

    Ship to Shore Container Gantry Crane (STS)  (1)

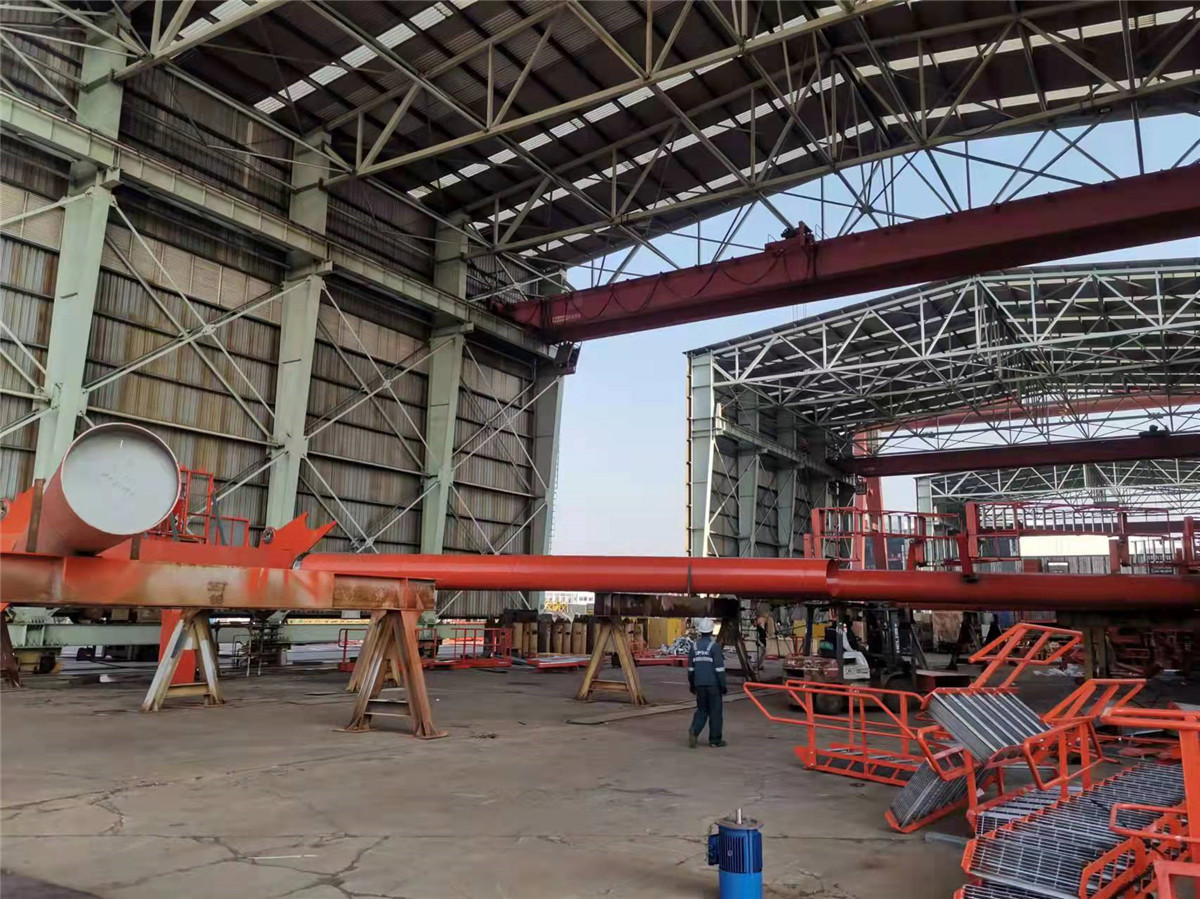

    Ship to Shore Container Gantry Crane (STS)  (6)

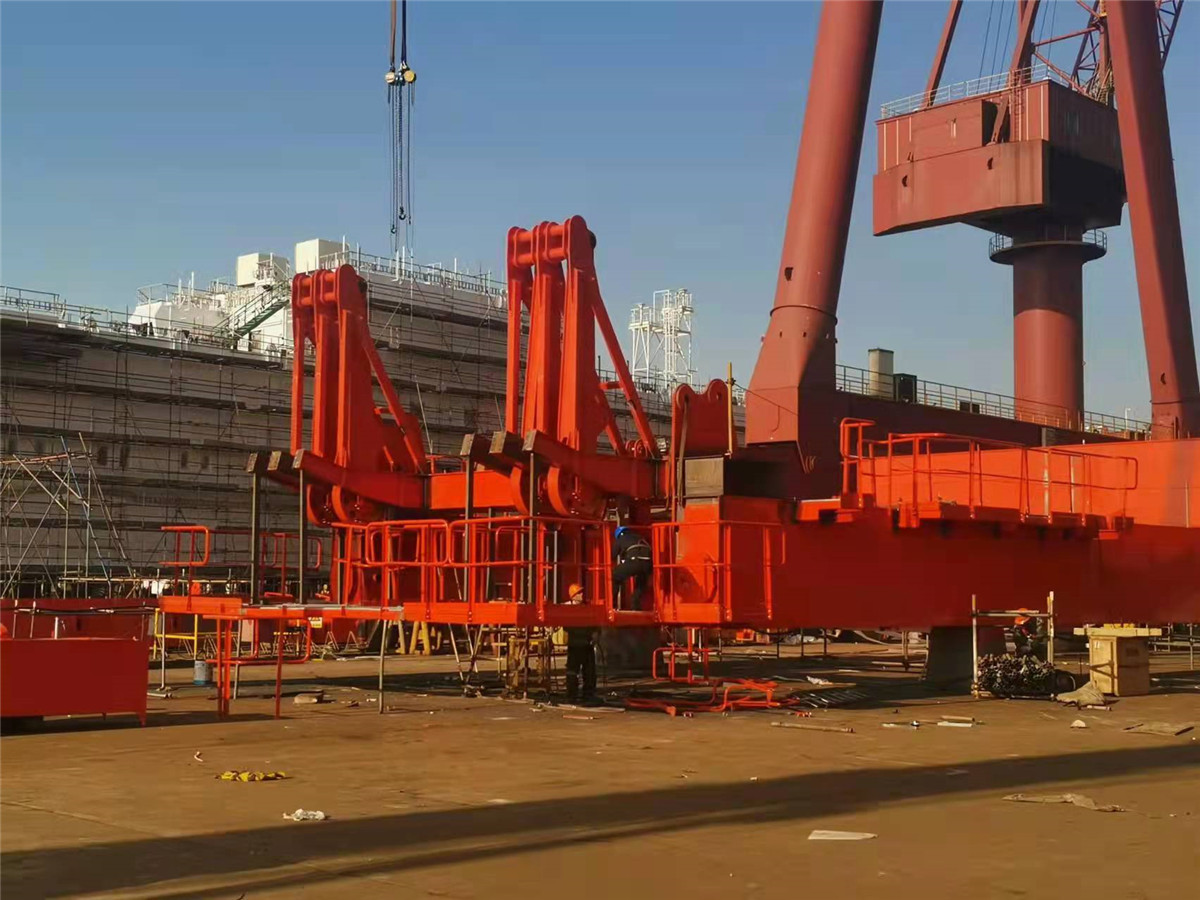

    Ship to Shore Container Gantry Crane (STS)  (2)

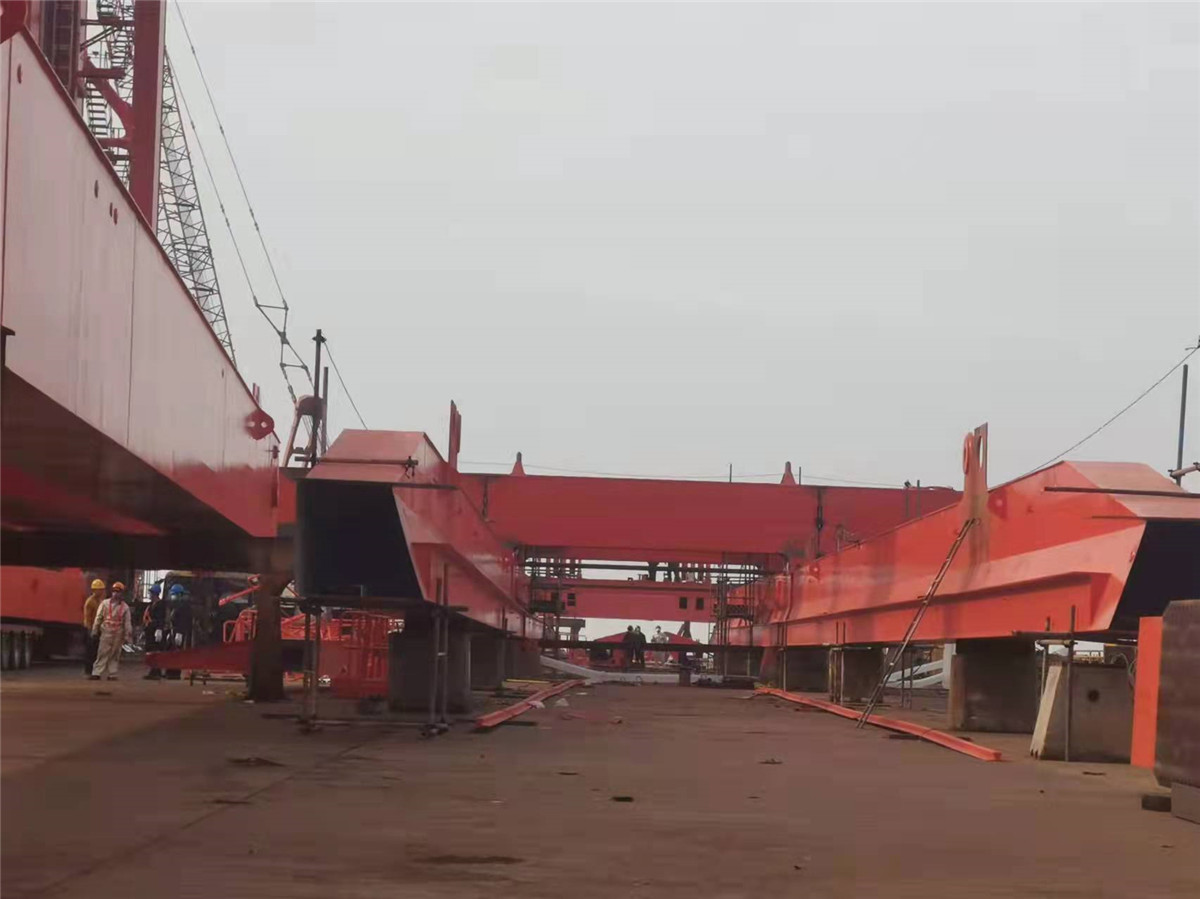

    Ship to Shore Container Gantry Crane (STS)  (7)

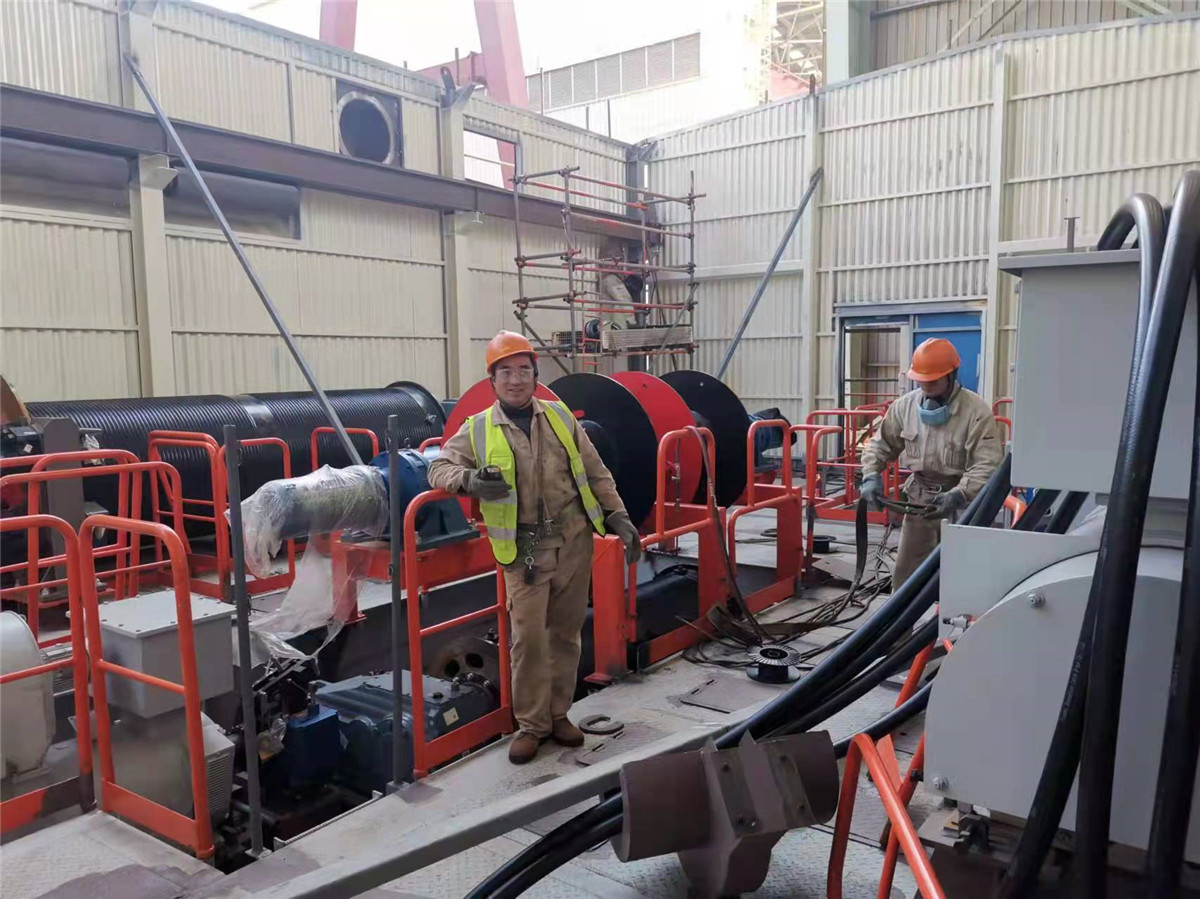

    Ship to Shore Container Gantry Crane (STS)  (4)

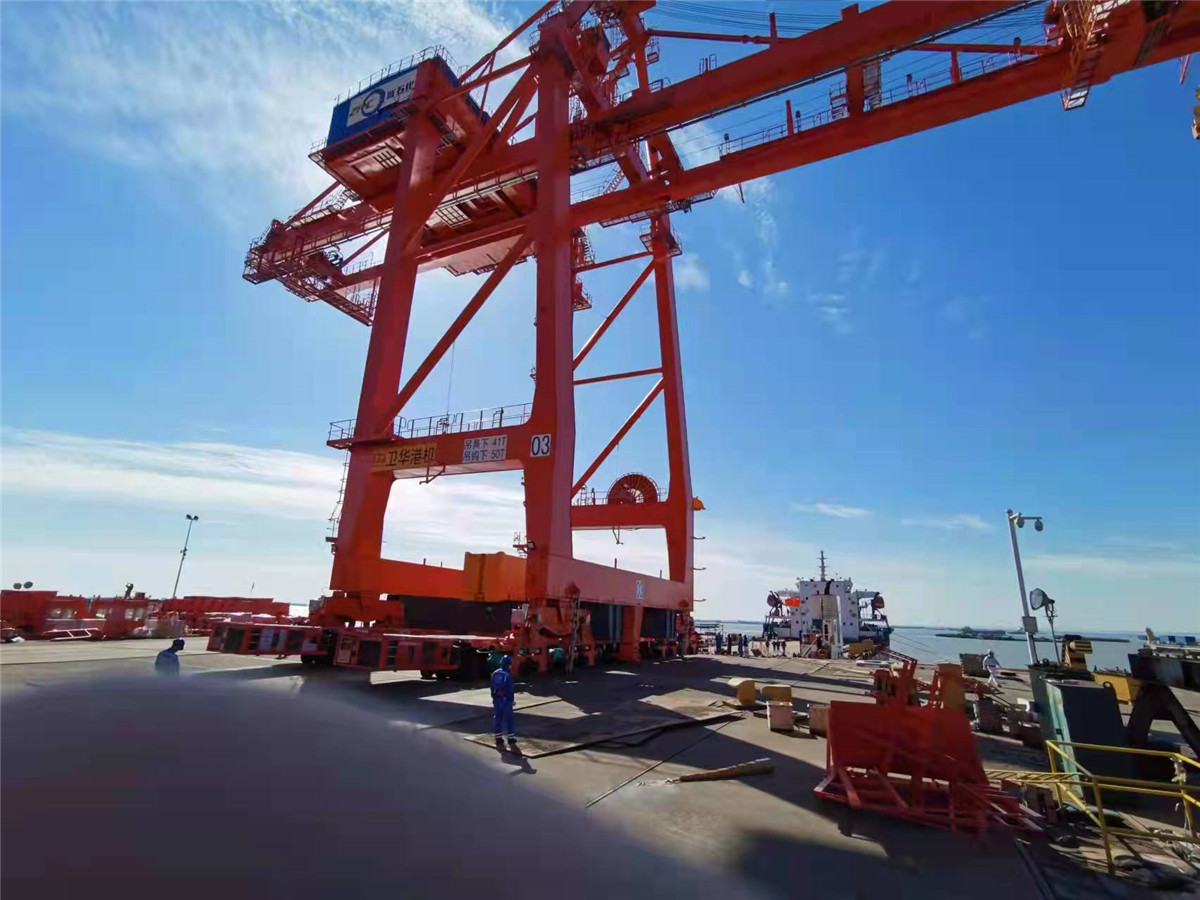

    Ship to Shore Container Gantry Crane (STS)  (8)

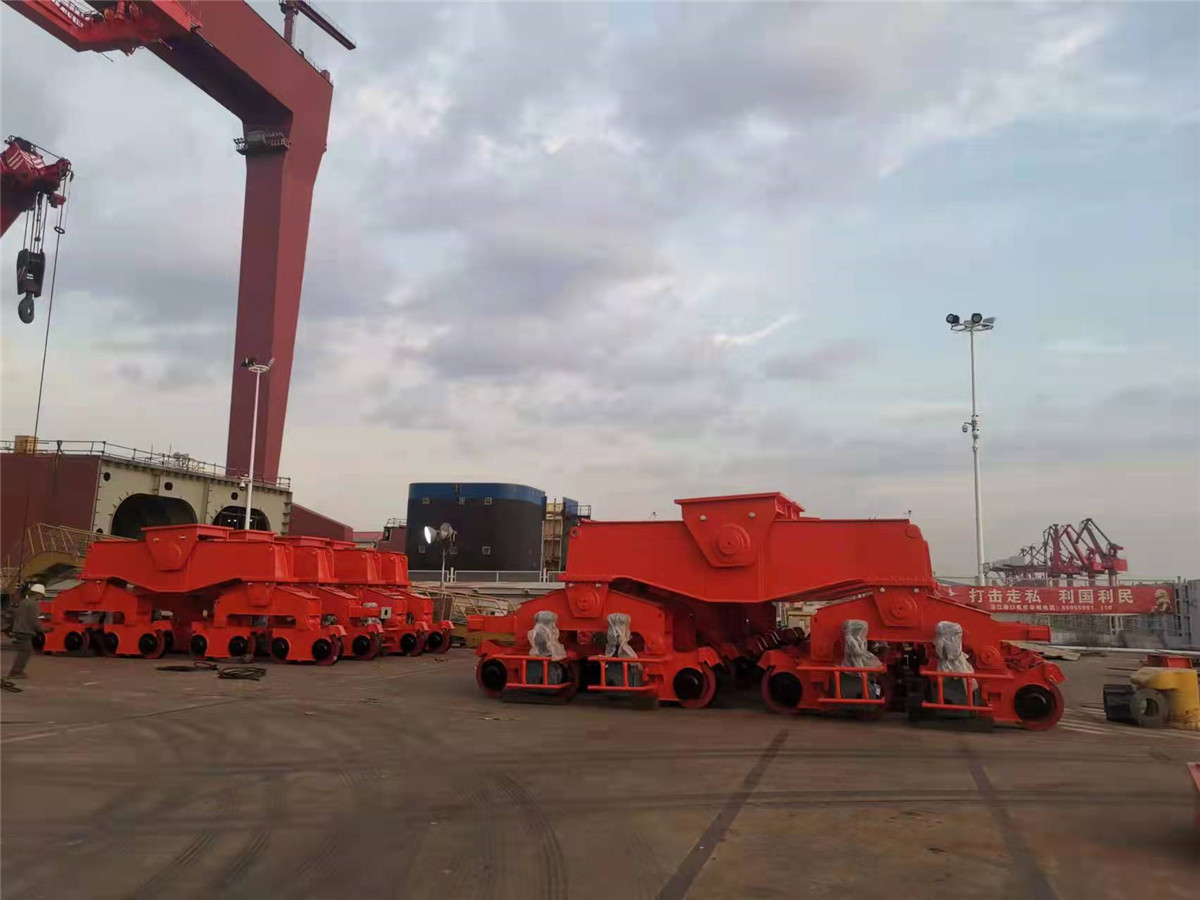

    Ship to Shore Container Gantry Crane (STS)  (5)

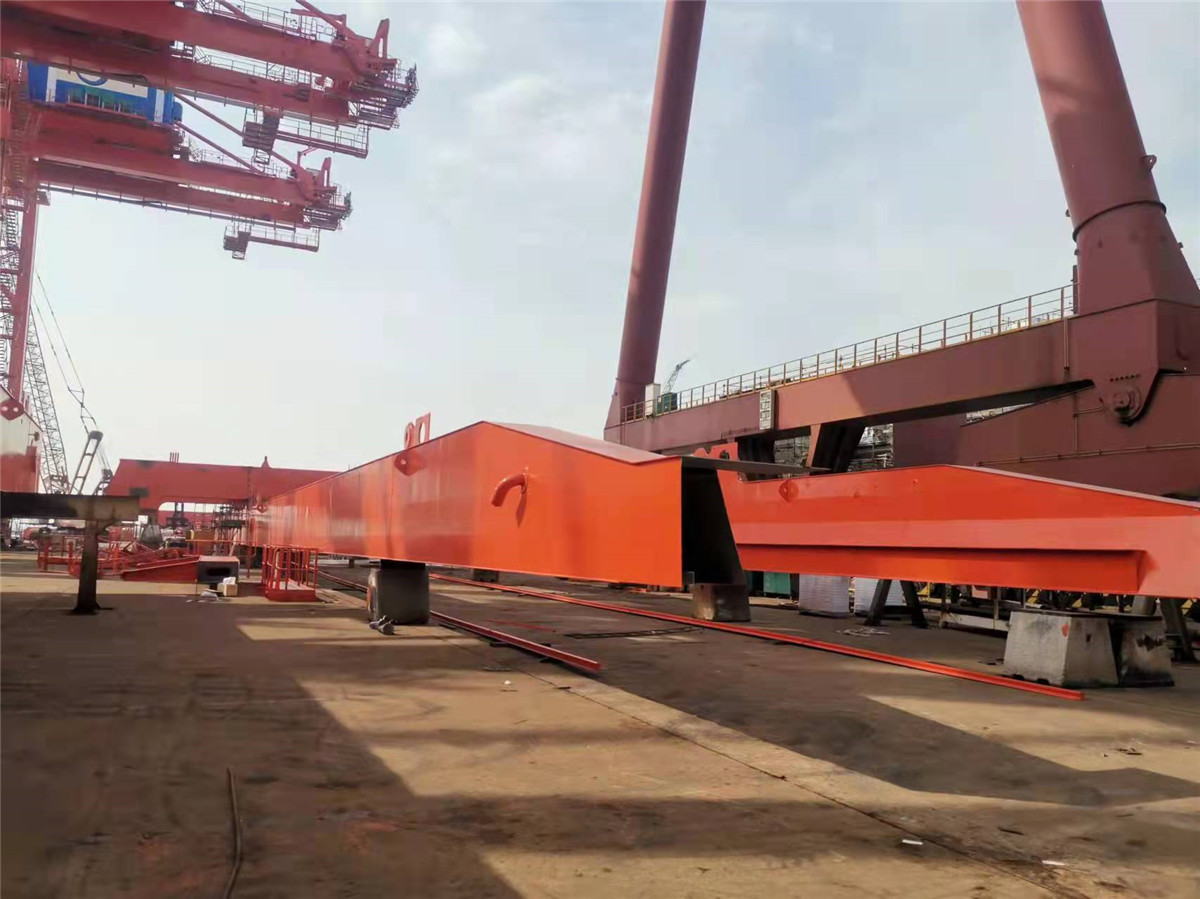

    Ship to Shore Container Gantry Crane (STS)  (9)

    Painting

    The STS shall use the zinc epoxy painting system.
    They paint could guarantee a minimum paint life of minimum 5 years against cracks, rusty, peeling and discolourtion.

    Every surface of metal have surface cleaning according to standard sis st3 or sa2.5. Then they are
    painted with one coat of epoxy zinc rich primer with dry film thickness of 15 microns.
    The primer coat - shall be painted with one coat epoxy zinc rich primer, dry film thickness of 70 microns.
    The intermediate paint shall be painted with one coat epoxy micaceous iron oxide, dry film thickness of 100 microns.The finish coat shall be painted with two coats, poly urethane, the thickness of each coat is 50 microns.the total dry film thickness shall be not less than 285 microns to

    Crane Management System (CMS)
    The crane management system shall be full computerised operation, complete with sensors and transducers which shall be installed permanently on each crane and work in conjunction with the plc. provide with the monitor to monitoring diagnostics of crane, telling the data collection on the crane’s operating system, operated jointly with the device at least including the electrical power supply device, motor controls, operator control, motor, gear reducers and etc., such programme shall be flexible  enough to change or modify by the operator at later stage.
    Having following function.
    1.Condition Monitoring
    2.Fault Diagnosis
    3.Store the record and display system of the STS
    4.Preventive maintenance

    Ship to Shore Container Gantry Crane (STS)  (10)
    Ship to Shore Container Gantry Crane (STS)  (11)
    Ship to Shore Container Gantry Crane (STS)  (12)

    Crane Management System (CMS)

    The crane management system shall be full computerised operation, complete with sensors and transducers which shall be installed permanently on each crane and work in conjunction with the plc. provide with the monitor to monitoring diagnostics of crane, telling the data collection on the crane’s operating system, operated jointly with the device at least including the electrical power supply device, motor controls, operator control, motor, gear reducers and etc., such programme shall be flexible  enough to change or modify by the operator at later stage.
    Having following function.
    1.Condition Monitoring
    2.Fault Diagnosis
    3.Store the record and display system of the STS
    4.Preventive maintenance

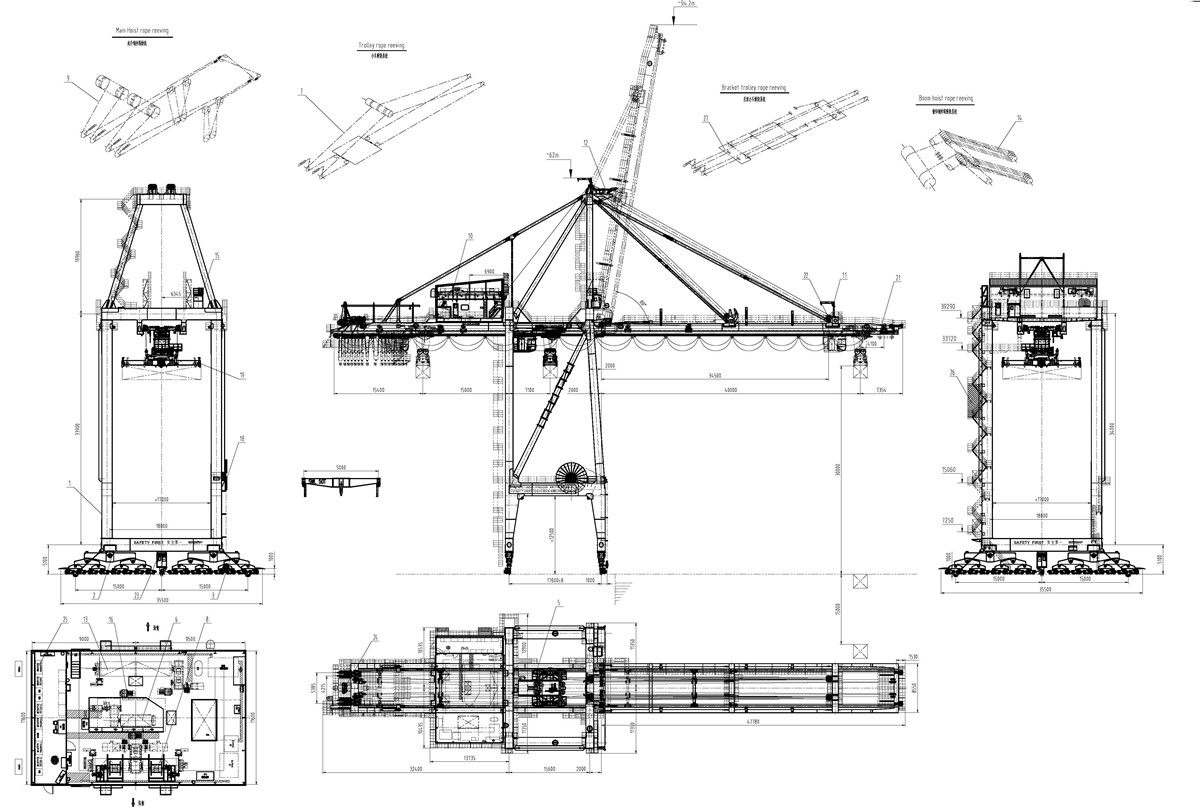

    Outline Drawing

      Ship to Shore Container Gantry Crane (STS)

    Technical Parameter Table

    Capacity of spreader

    T

    30.5

    35

    40.5

    50

    Capacity of Hook

    T

    38

    45

    50

    60

    Working duty

    A7

    A7

    A8

    A8

    Span

    m

    10.5

    10.5

    22

    22

    Out reach

    mm

    38000

    30000

    38000

    55000

    Backreach

    mm

    10000

    10000

    11000

    18000

    Base distance

    mm

    16.5

    17.63

    16

    16

    Gantry frame height

    mm

    75670

    68100

    8000

    9500

    Lifting height

    Above Rail

    m

    22

    22

    28

    38

    Below Rail

    m

    16

    10

    14

    14

    Speed

    Hoisting

    With full load

    m/min

    46

    30

    50

    70

    Only with spreader

    120

    60

    120

    150

    Trolley travelling

    150

    120

    120

    220

    Crane traveling

    45

    25

    45

    45

    Boom hoisting time, one way

    min

    7

    6

    5

    5

    Total power

    KW

    650

    500

    920

    1700

    Max. working load of wheel

    KN

    300

    260

    400

    450

    Crane rail

    P50

    P50

    QU80

    QU100

    Power supply

    380V,50HZ,3 Phase AC or 10KV,50Hz,3Ph

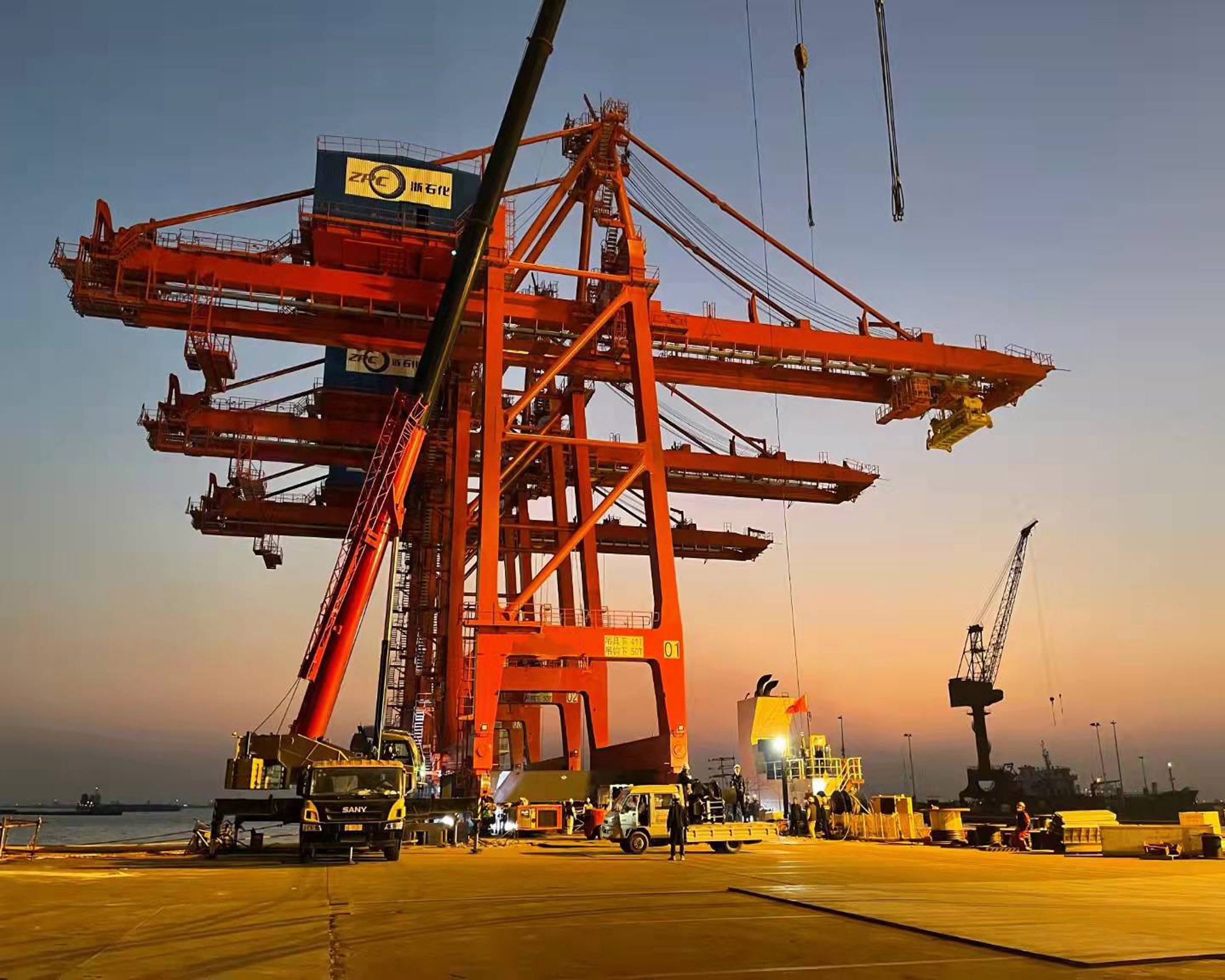

    • STS 1
