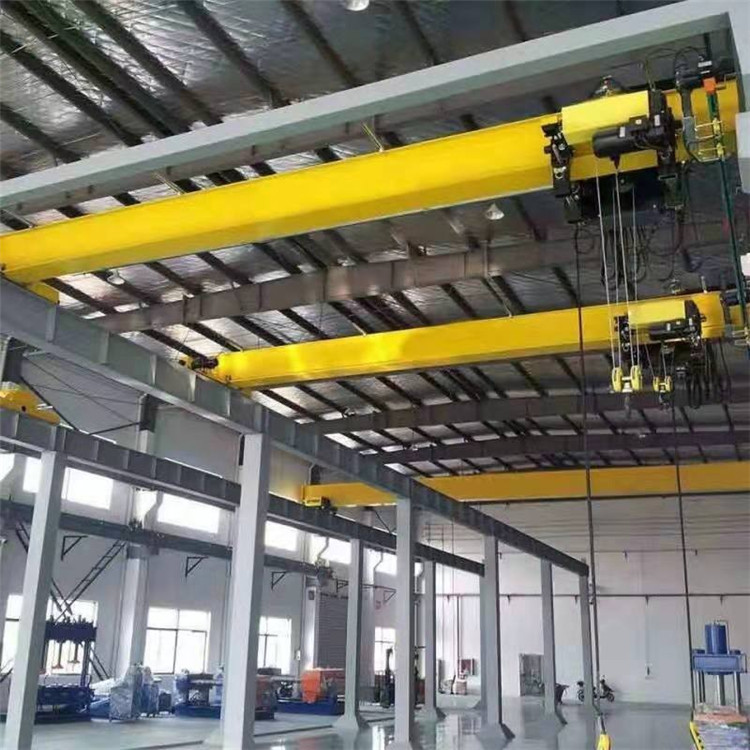

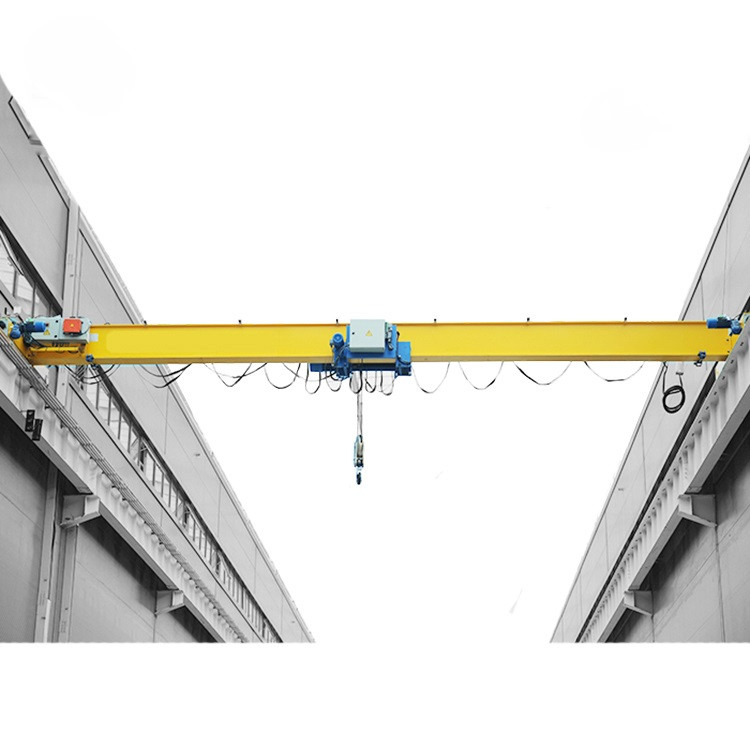

European Style Single Girder Overhead Crane

Short Description:

HD single girder overhead travelling cranes are designed and manufactured according to DIN, FEM, ISO standards and global advanced technology, takes optimized and reliable modular design, features maximum rigidity for a minimum dead weight.

The price range is from $4,000 to $8,000

Capacity: 1-20t

Span: 7.5-35m

Lifting height:6-24m

  • Place of Origin: China , Henan
  • Brand Name: KORIG
  • Certification: CE ISO SGS
  • Supply Ability: 10000 Set/Month
  • Min.Order Quantity: 1 set
  • Payment Terms: L/C, T/T, Western Union
  • Delivery Time: 20~30 Workdays

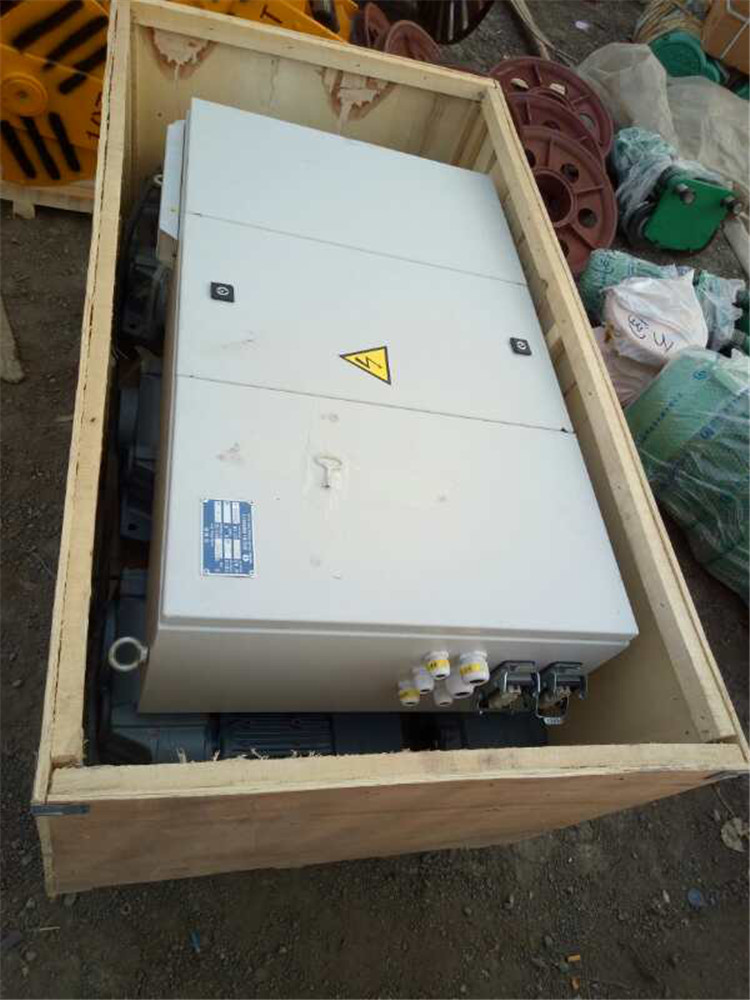

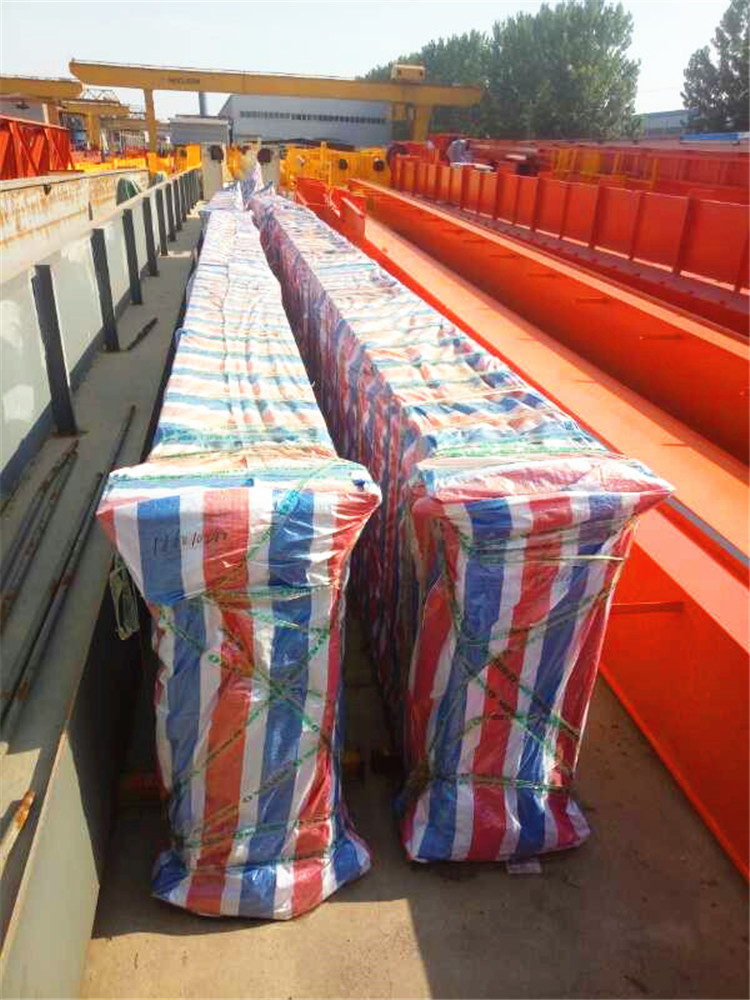

  • Packaging Details: Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
  • Product Detail

    company information

    Product Tags

    Modular and Compact Design

    The main beam employs bias-rail box type structure and connects with end beam by high-strength bolt ensuring easy transportation.
    Trolley of crane uses open compact winching structure, of which with medium and small tonnage also can use new hoist trolley.
    Traveling mechanisms of crane and trolley adopt Europe three-in-one drive form, the harden gear face reducer had good performances in compact structure, low noise, no oil-leakage and long service life.
    As using new compact trolley and high-strength material, it has small overall dimension and light weight, compared with traditional crane, which can decrease the height of factory building and reduce the cost.
    Modular design has short design period and high generalization, which can improve the utilization of components.
    With compact structure, low clearance, small dimension and large application scope, it can improve production efficiency.
    Fall variable-frequency control runs steadily without any impaction. Run with heavy load at low speed and light load at high speed, it can save energy and reduce consumption.
    High Safety, Reliability, Efficiency and Maintenance Free

    European Style Single Girder Overhead Crane Advantages

    1. Germany ABM Hoist lifting motor double-winding squirrel-cage pole-changing dual speed hoisting motor with stable and reliable operation, and free of maintenance. SEW variable speed inverter controlled travelling motors with stable and reliable operation and low noise.
    2. Safety monitoring systems for hoisting and travelling mechanism, many functions can be achieved according to the demands of users.
    3. The crane provides with many protection including linkage, overload protection, zero protection and limit protection, ensuring the crane always under safety operation.
    4. The crane provides with advanced PLC automatic detection function, which can perform measurement, calculation and monitoring to the performance, safety and working condition in order to ensure more safe and reliable transportation of items.
    5. The Crane Standard working duty is FEM 2M/ISO M5, equipped with our ND or NR series electric rope hoist with 1,600 hours of service at full load.
    6. Standard dual speed for hoisting and variable frequency drive (VFD) control speed for cross and long travelling. Which improve load handling and reduce load sway motions.
    7. Electric Components. Electrical components uses ABB, Siemens and Schneider international brands.

    • specification

    Main specification
    Name / Single girder overhead crane and electric hoist
    Model / HD
    Crane capacity t 1~20
    Span m 7.5-22.5
    Lifting height m  6、9、12
    Control method / Pendent line control+Remote control
    Power source / 380V 50Hz 3Phase or customized
    Working class / FEM2M‐ISO A5
    Hoisting mechanism
    Hoist type / Low headroom type
    Speed m/min 5/0.8m/min (Double speed)
    Motor type / integral structure of gear motor
    Rope reeving system /   4/1
    Trolley traveling mechanism
    Speed m/min 2‐20m/min ( VFD control )
    Crane traveling mechanism
    Speed m/min 3.2‐32m/min ( VFD control )
    Whole machine
    Protection grade / IP54
    Insulation class / F
    Safety features
    Overload protection device
    Limit switch for crane traveling and lifting
    Polyurethane material buffer
    Voltage-loss protection device
    Voltage lower protection device
    Emergency stop system
    Sound and Light alarm system
    Phases failure protection function
    Power fluctuation Protection system
    Current overload protection system

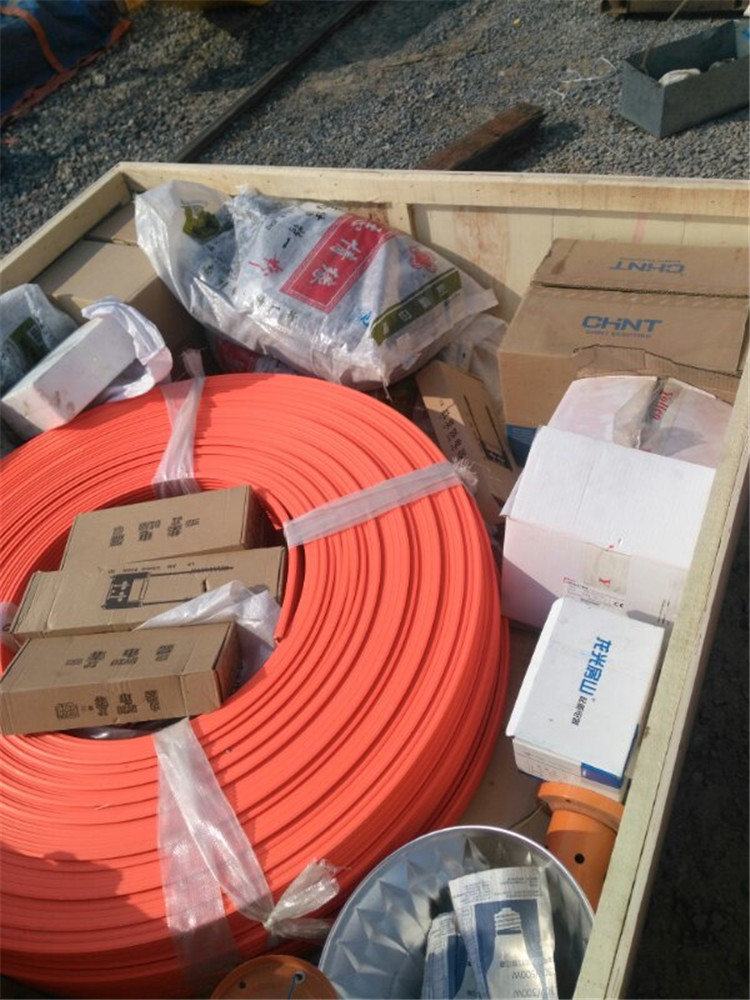

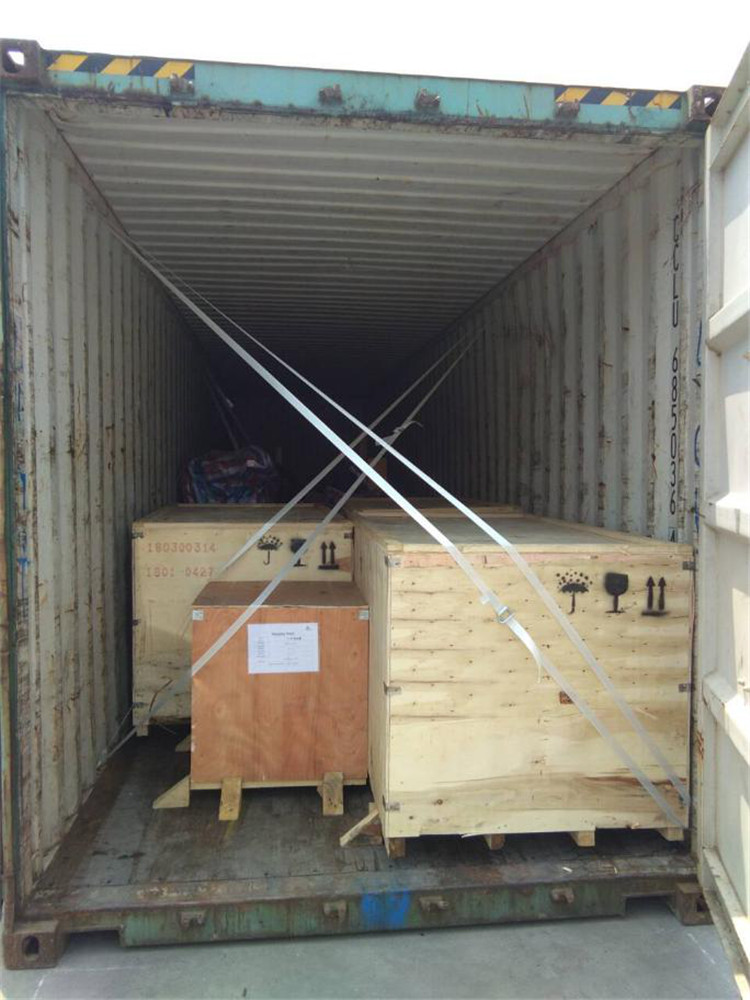

    • Packaging and delivery

    European Style Single Girder Overhead Crane01
    European Style Single Girder Overhead Crane02
    European Style Single Girder Overhead Crane03
    European Style Single Girder Overhead Crane04

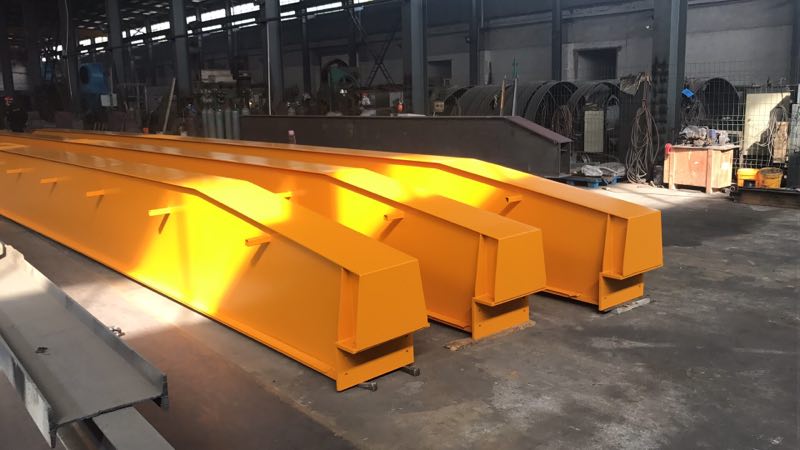

    • European Style Single Girder Overhead Crane10

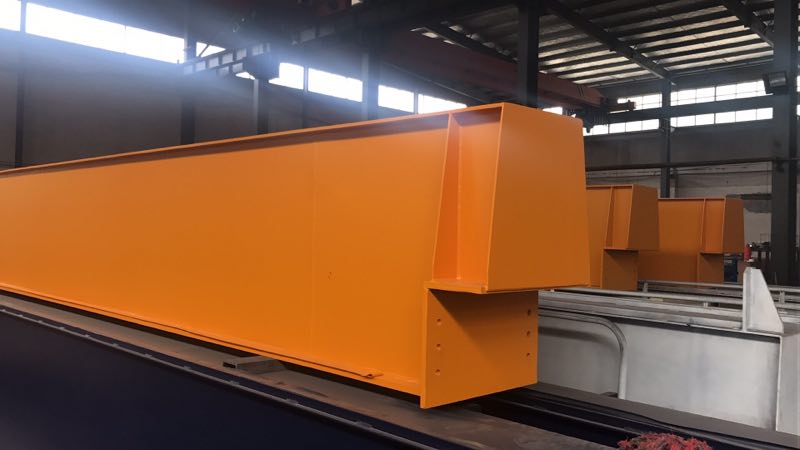

    • European Style Single Girder Overhead Crane10

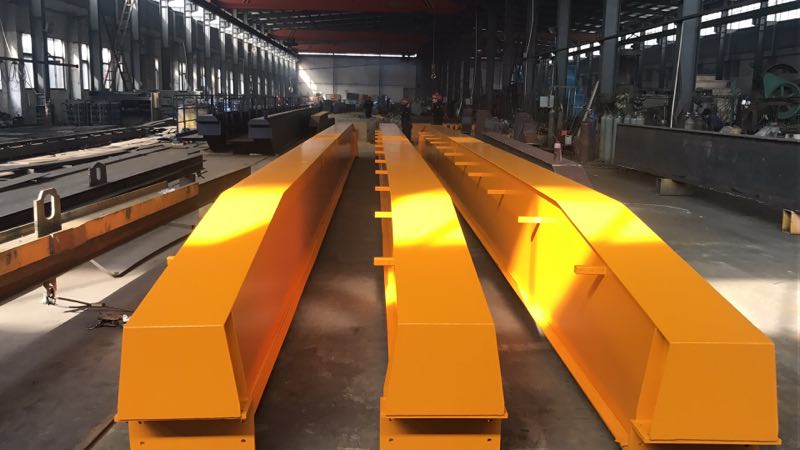

    • European Style Single Girder Overhead Crane10

  • Previous:
  • Next:


    KOREGCRANES ( HENAN KOREGCRANES CO., LTD) located in crane hometown of China (cover more than 2/3 crane market in China), who is a trusted professional industry crane manufacturer and leading exporter. Specialized in design, manufacturing, installation and service of Overhead crane, Gantry crane, Port crane, Electric hoist etc, we have passed ISO 9001:2000, ISO 14001:2004, OHSAS 18001:1999, GB/T 19001-2000, GB/T 28001-2001,  CE, SGS, GOST, TUV, BV and so on.

    Product Application

    To meet the demands of the oversea market, we independent research and development European type overhead crane, gantry crane; electrolytic aluminium multi-purpose overhead crane, hydro-power station crane etc. European type crane with light dead weight, compact structure, lower energy consumption etc. Many main performance reach the industry advanced level.
    KOREGCRANES Widely used in machinery, metallurgy, mining, electric power, railway, petroleum, chemical, logistics and other industries. Service for hundreds of large enterprises and national key projects such as China Datang Corporation , China Guodian Corporation, SPIC, Aluminum Corporation Of China(CHALCO), CNPC, Power China , China Coal, Three Gorges Group, China CRRC, Sinochem International, etc.

    Our Marke

    Our cranes has been exported cranes to more than 110 countries for example Pakistan, Bangladesh, India, Vietnam, Thailand, Indonesia, Philippines, Malaysia、USA, Germany, France, Australia, Kenya, Ethiopia, Nigeria,Kazakhstan, Uzbekistan, Saudi Arabia、UAE、Bahrain、Brazil, Chile, Argentina, Peru etc and received good feedback from them. Very happy to be friends with each other come from all of the world and hope to establish long-terms good cooperation.

    KOREGCRANES has steel pre-treatment production lines, automatic welding production lines, machining centers, assembly workshops, electrical workshops, and anti-corrosion workshops. Can independently complete the whole process of crane production.
