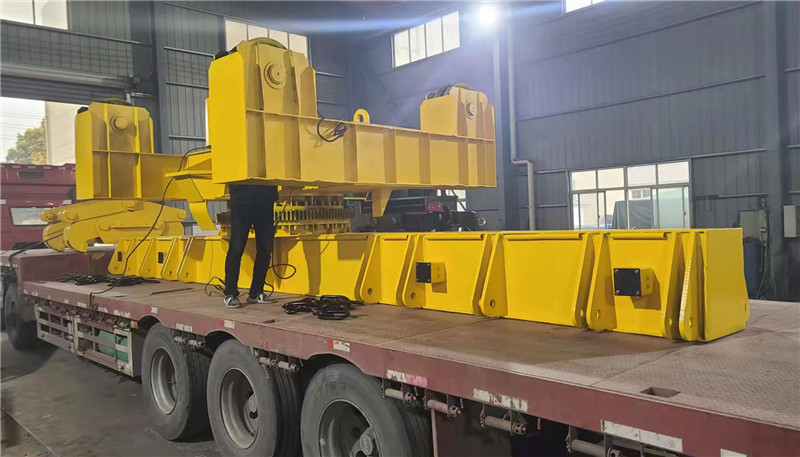

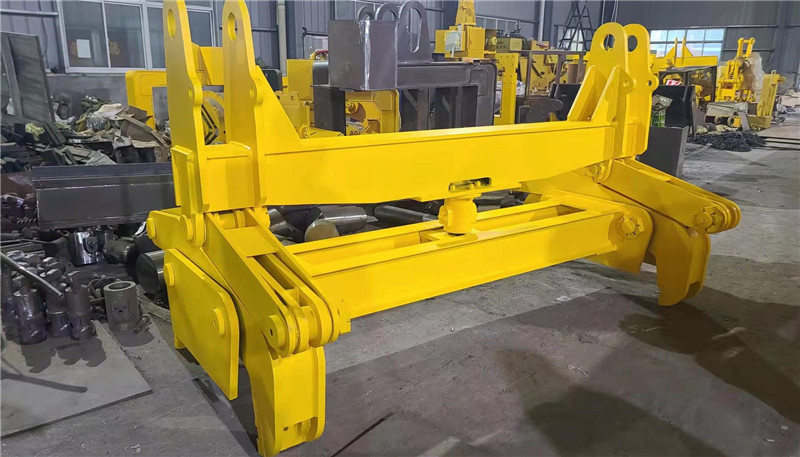

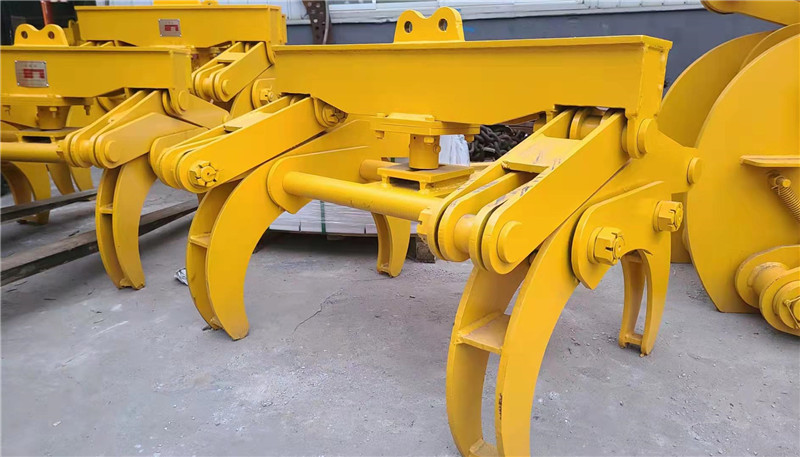

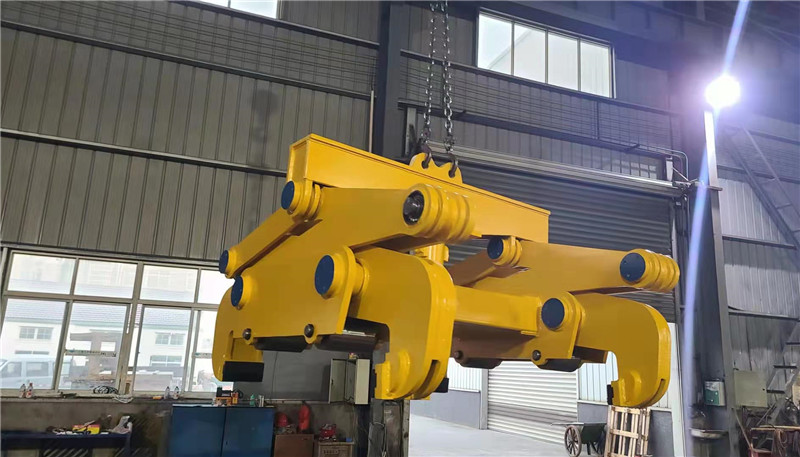

Clamp for Steel Billet

Short Description:

The billet clamp is a special tool for mass transfer of billets in steel plants, ports, wharfs and other units.
The billet clamp adopts the principle of leverage and can realize the clamping of the billet without the assistance of external force, and the clamping is reliable, the action is flexible, and the lifting is safe and reliable. The shutter is made of high-strength, high-wear-resistant alloy steel, which is flexible in action and has a long service life. The billet tongs of this structure are divided into fixed type and adjustable type (the height h is steplessly adjustable) to adapt to the lifting of billets of different specifications and different layers. The connection form with the customer’s crane can be designed according to the actual situation.

Product name:Clamp for Steel Billet

Model: customizable


  • Brand Name: KORIG
  • Place of Origin: Henan, China
  • Customize Service: Available
  • Certification: CE ISO SGS
  • Min.Order Quantity: 1 set
  • Payment Terms: L/C, T/T, Western Union
  • Delivery Time: 20~30 Workdays
  • Supply Ability: 1000 Set/Month
  • Port of Shipment: Qingdao Port, Tianjin Port, Shanghai Port
  • Packaging Details: Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
  • Product Detail

    company information

    FAQ

    Product Tags

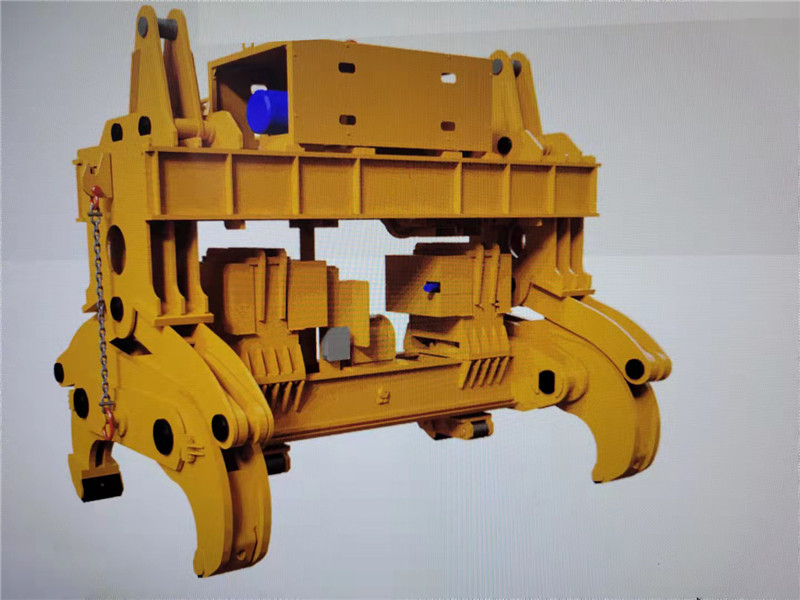

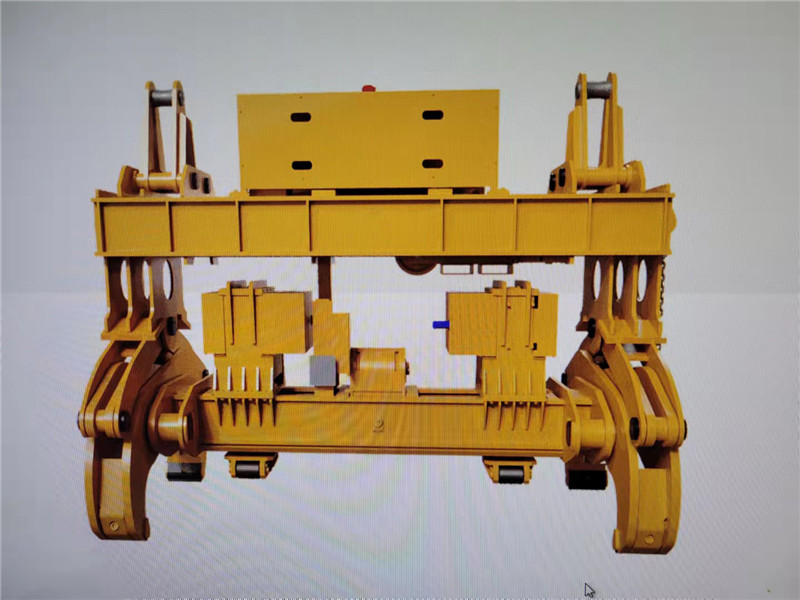

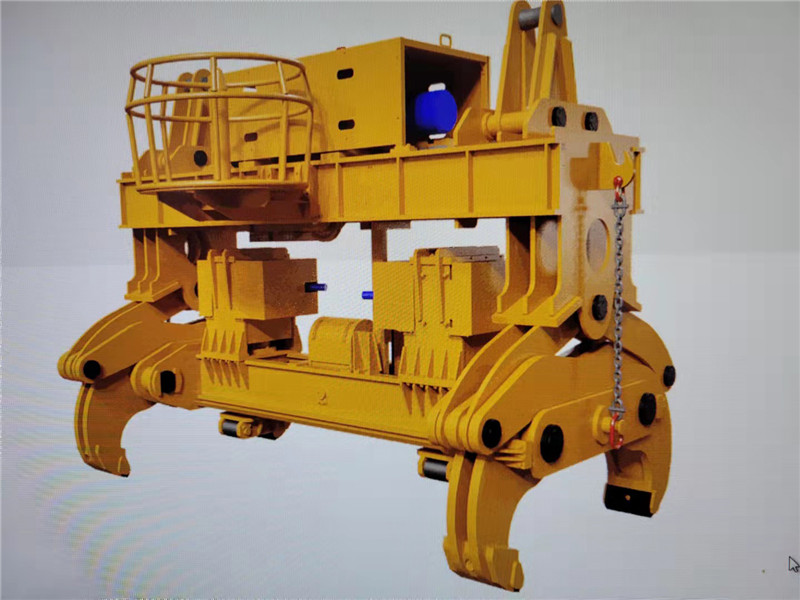

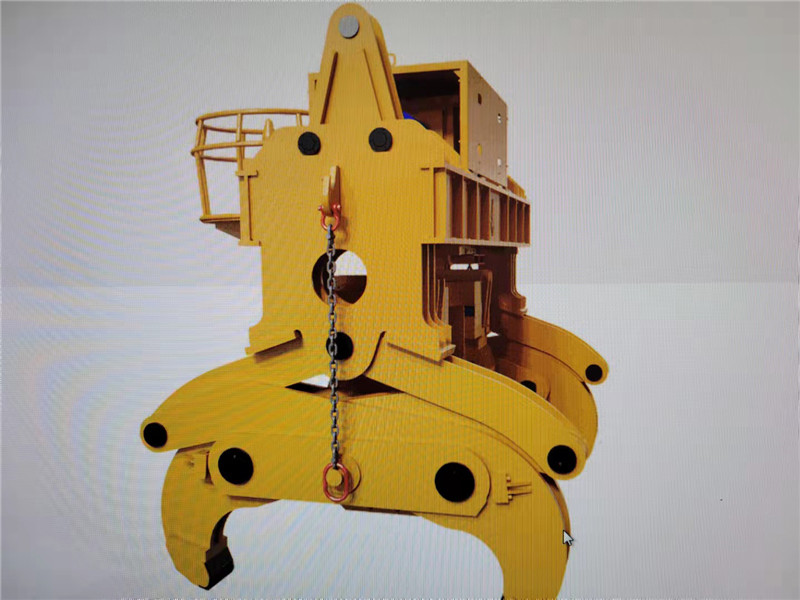

    The role of each component of the billet clamp

    Synchronizer

    The synchronizer is a device that guarantees the synchronized action of the clamp arms of the clamp.

    Clamp arm

    The clamp arm is the main force-increasing component of the clamp, through which the billet is clamped.

    Support plate

    The support plate is the support of the billet fixture. The supporting plate is supported on the upper surface of the billet to ensure the smooth operation of the opening and closing mechanism of the billet clamp.

    Jaw

    The jaws have pin-shaft connection, dovetail connection and groove plug-in structures. The jaws are the main parts that are in direct contact with the billet, which determines the reliability of the billet clamp to hold the billet

    Clamp for Steel Billet  (5)
    Clamp for Steel Billet  (5)
    Clamp for Steel Billet  (5)
    Clamp for Steel Billet  (5)
    Clamp for Steel Billet  (5)

    Operation method

    First, hang the crane hook in the long hoisting ring on the steel billet spreader shaft, lift the crane hook, and lift the billet spreader. At this time, the billet spreader should be in an open state. If the billet spreader is in a clamped state, the crane hook needs to be lowered until the long hoist ring is no longer stressed, and then the crane hook is lifted again. At this time, the billet spreader is in an open state. When lifting the billet spreader directly above the required billet, aim at the middle part of the billet, lower the crane hook, place the billet spreader firmly on the hoisted steel plate, and continue to lower the crane hook until the long ring is no longer stressed At this time, the operation of the opening and closing mechanism is completed, the crane hook is lifted, and the billet spreader is lifted. At this time, the billet spreader is in a clamped state, and the lifted billet is lifted. During this process, if the lifted billet is found to be inclined, readjust the clamping of the billet spreader and repeat the above process until the lifted billet is basically level.
    The lifted steel billet is hoisted to the designated location, the crane hook is lowered, and the lifted steel billet is placed in the designated position, and the crane hook is continued to be lowered until the long ring is no longer stressed. At this time, the opening and closing mechanism is completed and the crane hook is lifted , Lift the billet spreader, at this time the billet spreader is in an open state, and complete a lifting operation.

    1. Using leverage principle, flexible movement, stable and reliable dispatching
    2. Q345B steel, low carbon alloy steel, low temperature performance, cold stamping performance, welding performance and machinability are good. long lasting
    3. High temperature resistance, not easy to wear and good stability
    4. A variety of specifications, can be customized according to customer needs

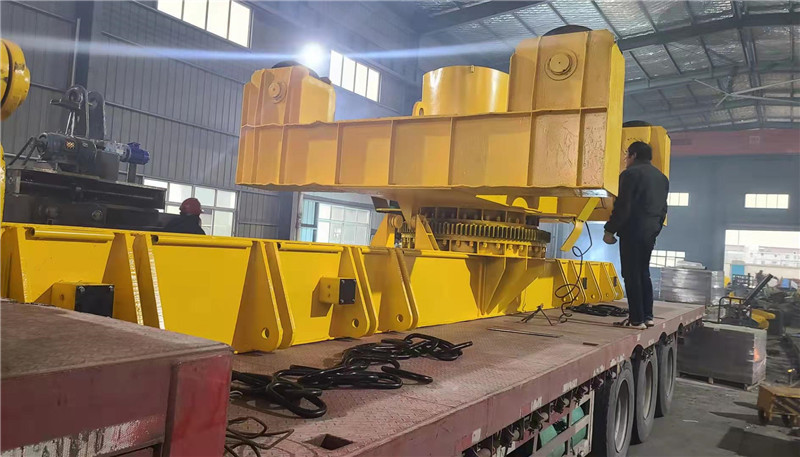

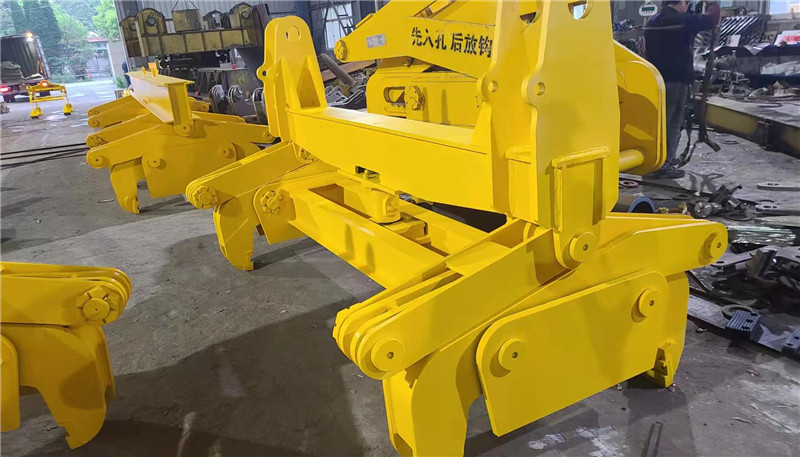

    • Clamp for Steel Billet
    • Clamp for Steel Billet
    • Clamp for Steel Billet
    • Clamp for Steel Billet
    • Clamp for Steel Billet
    • Clamp for Steel Billet
