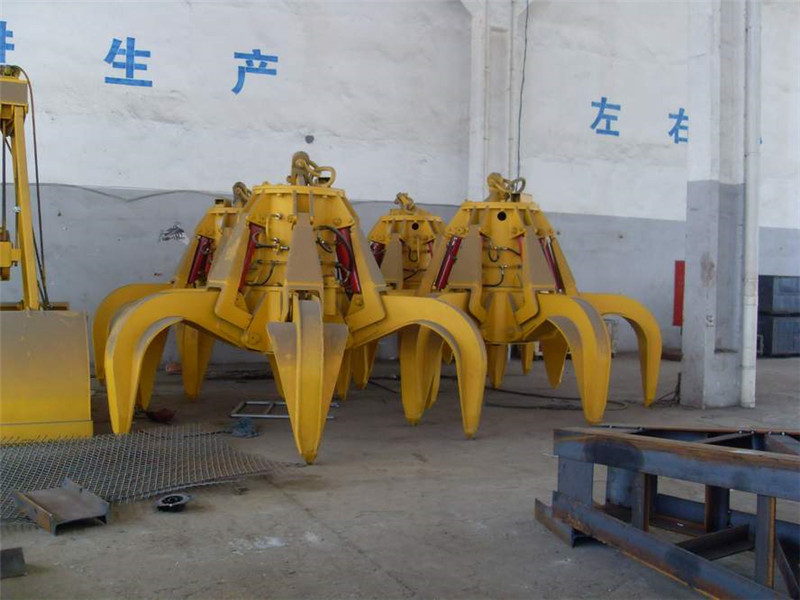

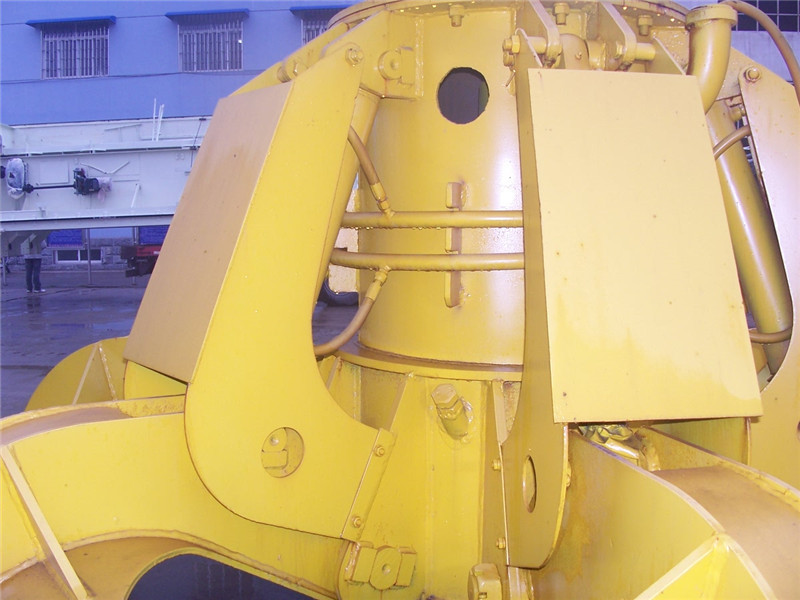

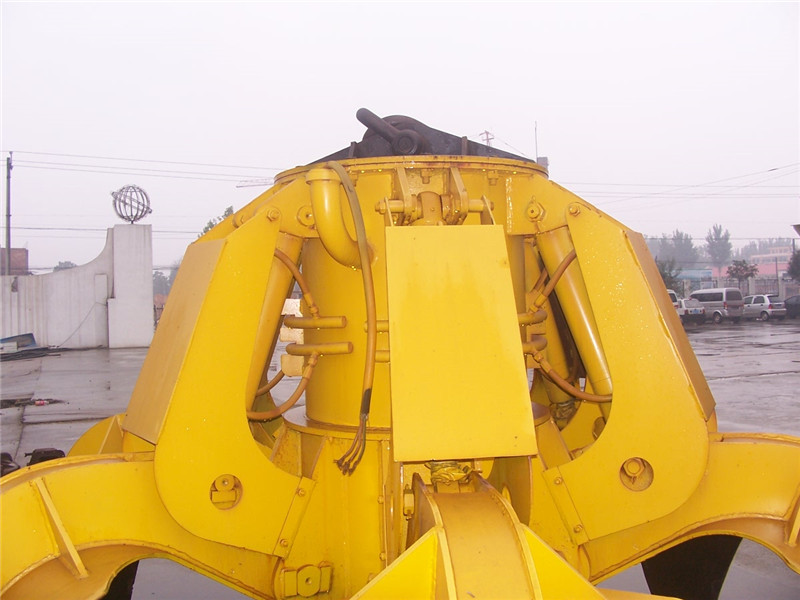

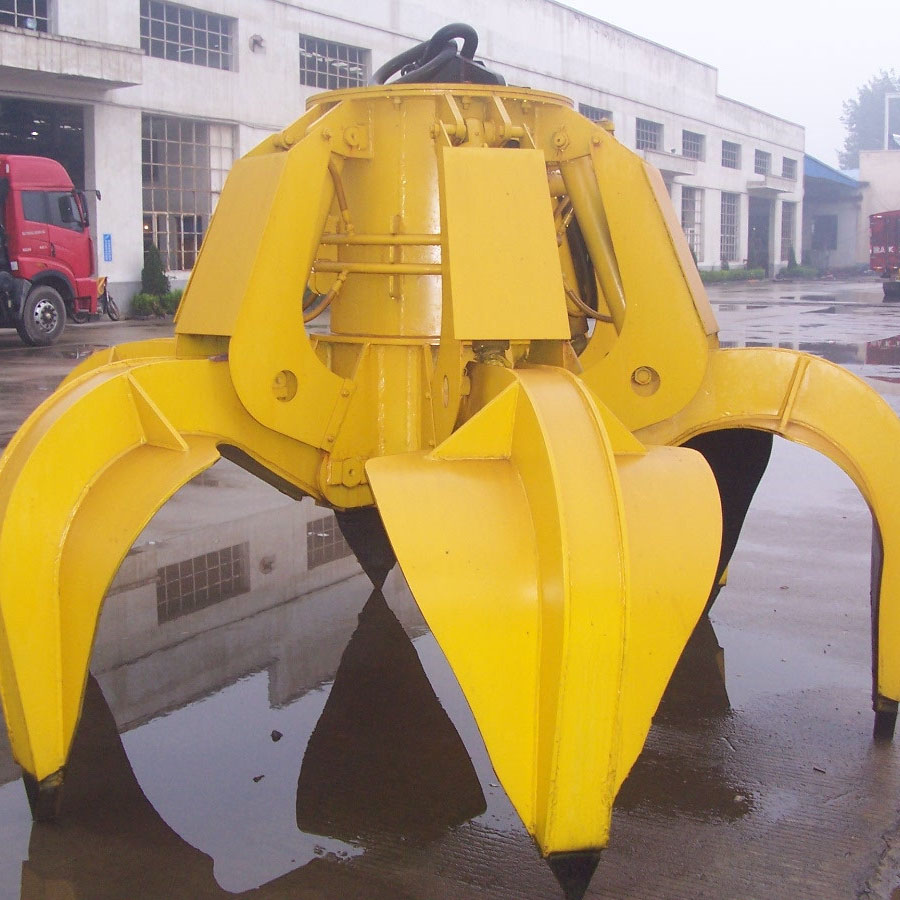

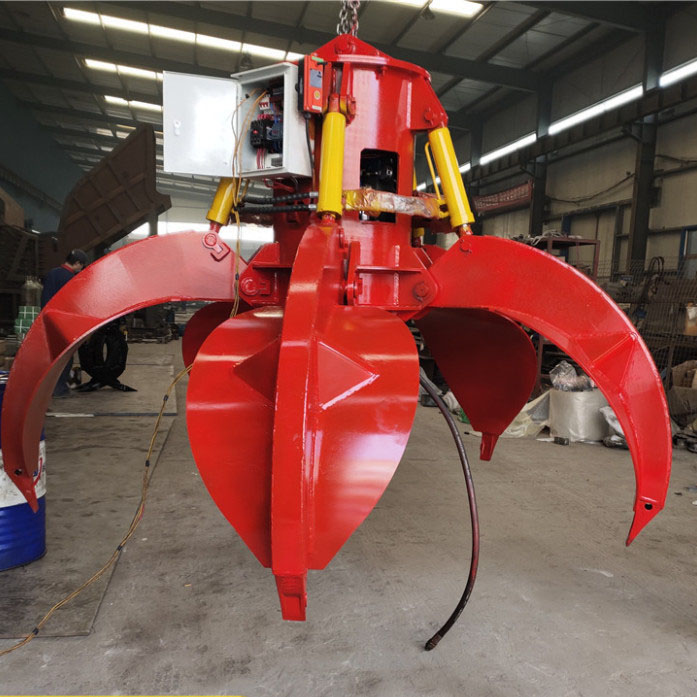

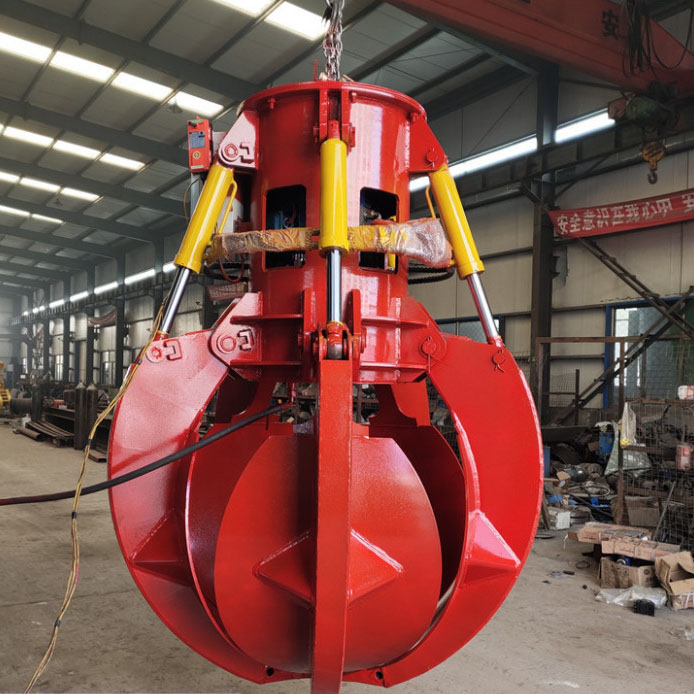

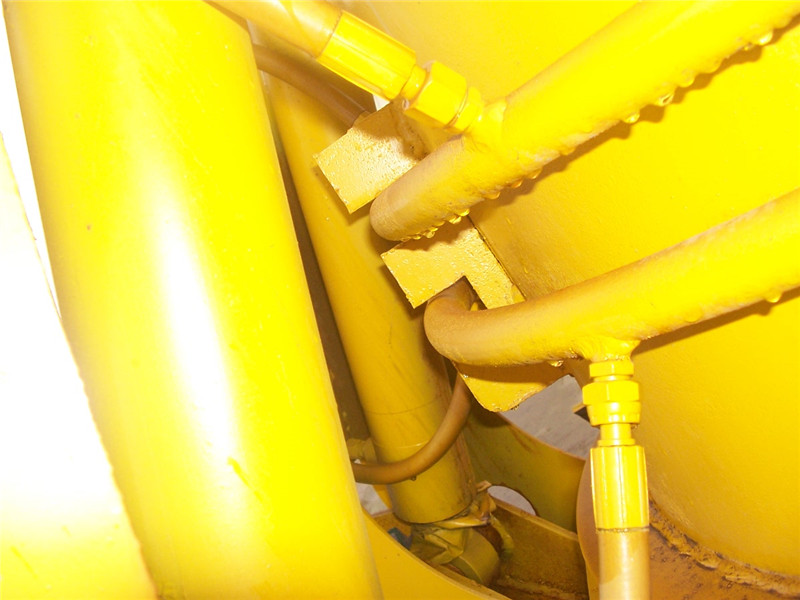

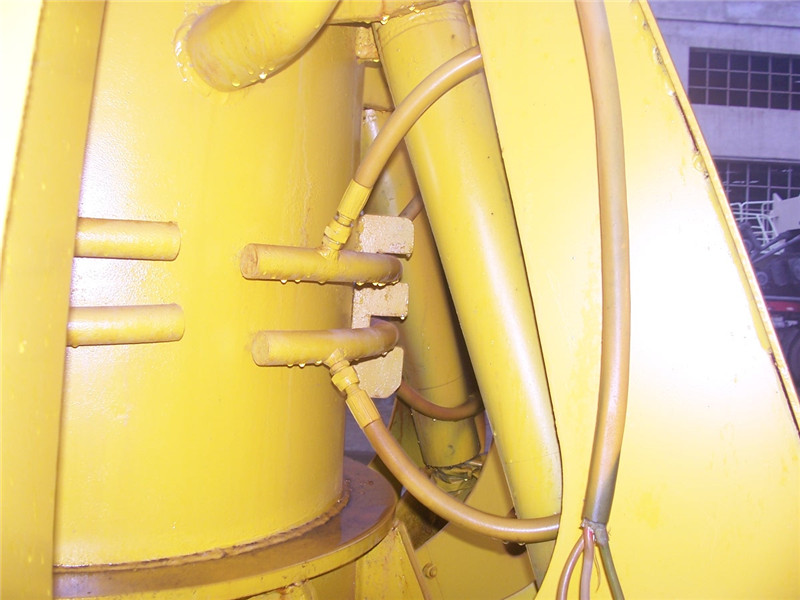

Electric Hydraulic Mutivable Double Disc Grab Bucket
overview

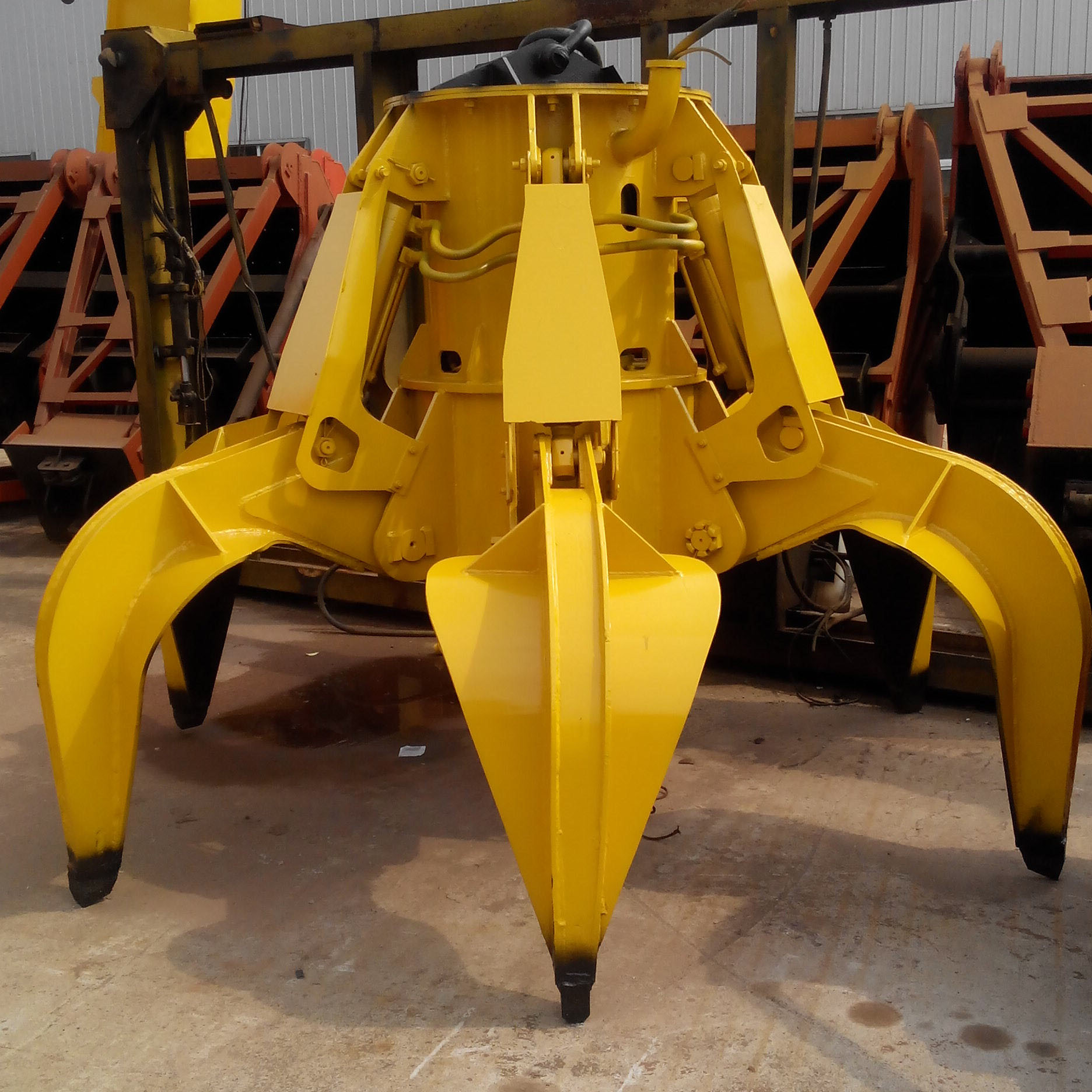

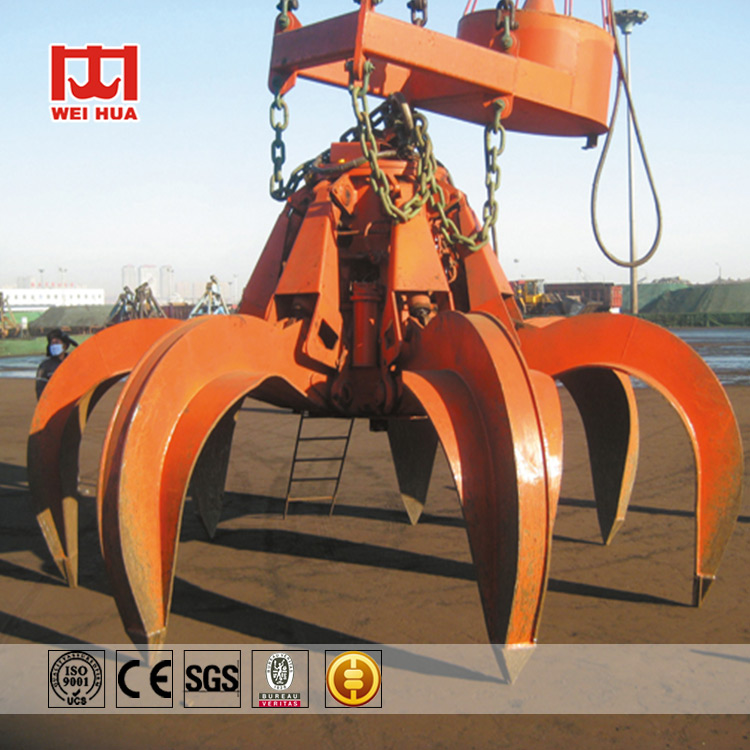

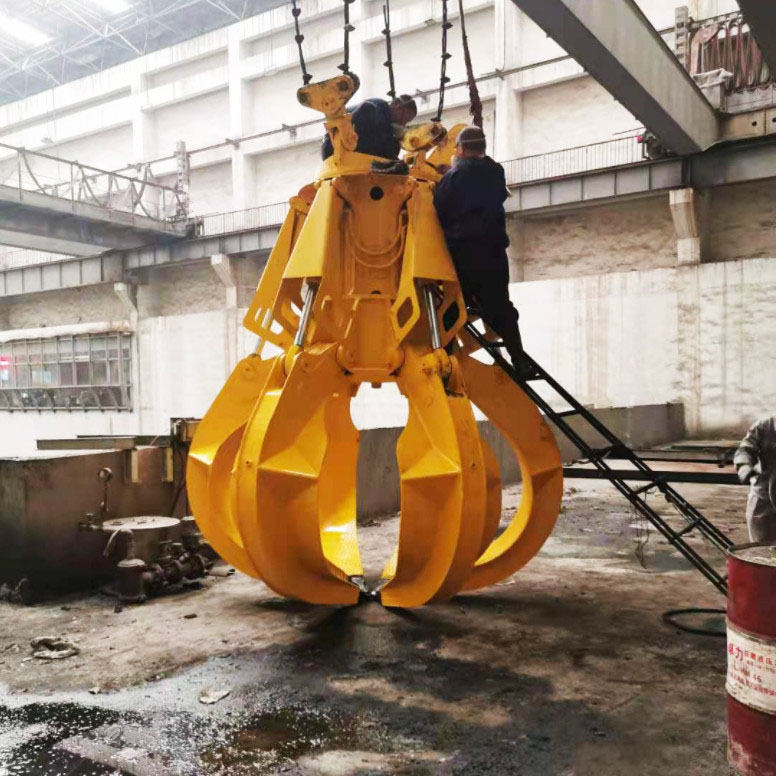

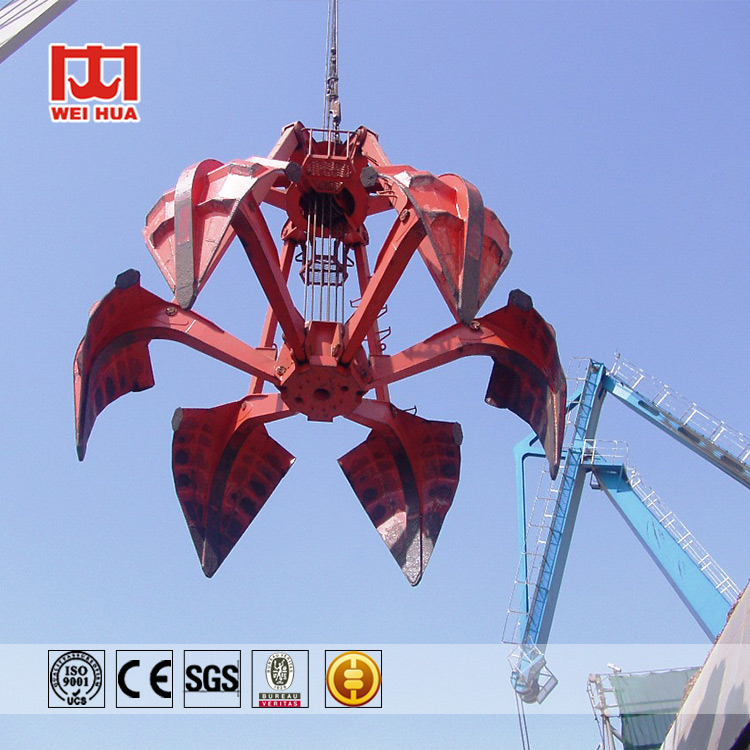

The product structure is compact,beautiful modelling,save energy and easy operation,according to the different industries and the usage situation and grab materials are divided into different selection,catch a claw is divided into many disc type and two disc type.(more disc is round and rectangular,grab claw have closed form,half open and all open form)
parameter
| Model | Volume(m3) | Grab self weight(t) | Using crane ton(t) | Motor power(KW) | Operating Pressure bar | Close time(S) |
| DYZ3(0.5) | 0.5 | 1.5 | 3.2 | 11 | 180 | 10 |
| DYZ3(0.6) | 0.6 | 1.7 | 3.2 | 11 | 180 | 11 |
| DYZ5(0.8) | 0.8 | 2 | 5 | 15 | 180 | 13 |
| DYZ5(1.0) | 1 | 2.5 | 5 | 15 | 180 | 14 |
| DYZ10(2) | 2 | 4.2 | 10 | 22 | 200 | 16 |
| DYZ52.5) | 2.5 | 2.6 | 5 | 18.5 | 180 | 17 |
| DYZ10(3.0) | 3 | 3.8 | 10 | 18.5 | 180 | 20 |
| DYZ10(5.5) | 5 | 4.3 | 10 | 22 | 200 | 19 |
| DYZ16(2.5) | 2.5 | 5.5 | 16 | 30 | 200 | 16 |
| DYZ16(8.0) | 8 | 5.6 | 16 | 30 | 200 | 19 |
| DYZ20(4.0) | 4 | 7 | 20 | 37 | 200 | 17 |
| DYZ20(12) | 12 | 8 | 20 | 37 | 200 | 25 |
| DYZ25(17) | 17 | 9 | 25 | 45 | 200 | 26 |
| DYZ30(20) | 20 | 11 | 30 | 45 | 200 | 28 |
Features
1. The capacity is from 5 CBM to 20 CBM;
2. Control distance is 200 meters;
3. Grab material is Q235B and Q345B (ASTM A6);
4. Single steel rope to lift grab is enough, specially for Deck crane or Portal crane;
Grab application

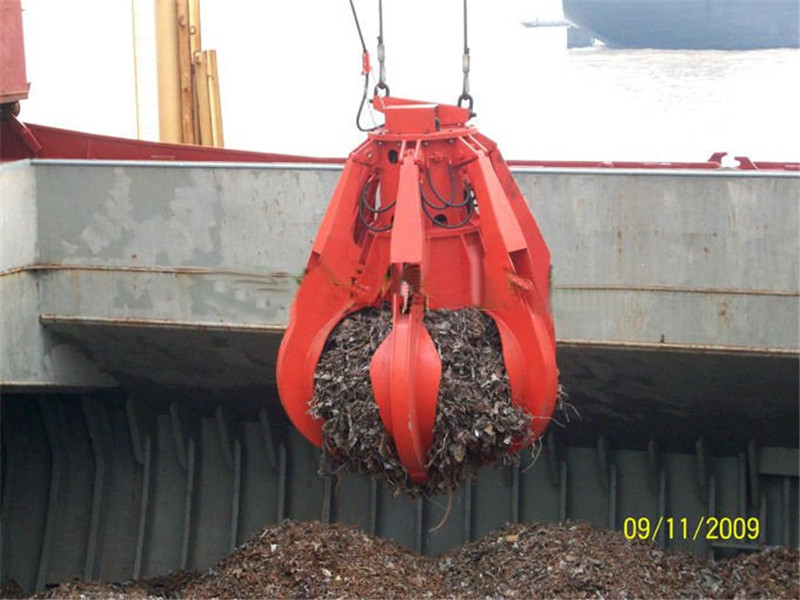

Grab bucket is more used for disperses the shape material handling. In the selection of material should be refer to physical performance, the accumulation concentration, block size, particle shape, the internal friction degree of materials and the loose degree, etc. According to the different packing density and block size, grab bucket is divided into light, medium, heavy and super-heavy. Grab material block degree is more than 60mm or more solid material, the capture cutting edge should be made tooth.
About KORIGCRANES
KORIGCRANES ( HENAN WEIHUA KORIG CRANES CO., LTD) located in crane hometown of China (cover more than 2/3 crane market in China), who is a trusted professional industry crane manufacturer and leading exporter. Specialized in design, manufacturing, installation and service of Overhead crane, Gantry crane, Port crane, Electric hoist etc, we have passed ISO 9001:2000, ISO 14001:2004, OHSAS 18001:1999, GB/T 19001-2000, GB/T 28001-2001, CE, SGS, GOST, TUV, BV and so on.
Product Application
To meet the demands of the oversea market, we independent research and development European type overhead crane, gantry crane; electrolytic aluminum multi-purpose overhead crane, hydro-power station crane etc. European type crane with light dead weight, compact structure, lower energy consumption etc. Many main performance reach the industry advanced level.
KORIGCRANES Widely used in machinery, metallurgy, mining, electric power, railway, petroleum, chemical, logistics and other industries. Service for hundreds of large enterprises and national key projects such as China Datang Corporation, China Guodian Corporation, SPIC, Aluminum Corporation Of China（CHALCO）, CNPC, Power China, China Coal, Three Gorges Group, China CRRC, Sinochem International, etc.
Our Market
Our cranes has been exported cranes to more than 110 countries for example Pakistan, Bangladesh, India, Vietnam, Thailand, Indonesia, Philippines, Malaysia、USA, Germany, France, Australia, Kenya, Ethiopia, Nigeria, Kazakhstan, Uzbekistan, Saudi Arabia、UAE、Bahrain、Brazil, Chile, Argentina, Peru etc and received good feedback from them. Very happy to be friends with each other come from all of the world and hope to establish long-terms good cooperation.
KORIGCRANES has steel pre-treatment production lines, automatic welding production lines, machining centers, assembly workshops, electrical workshops, and anti-corrosion workshops. Can independently complete the whole process of crane production.
Q. What’s the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power source; other specials you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:
A: remote control with push buttons
B: cabin (space capsule seat) control with joystick. Choose any type as you like.
Q. Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
