Mobile Boat Lift Crane

Short Description:

Yacht handling cranes, also known as boat handlers. It is widely used in water sports games, yacht clubs, navigation, shipping and learning, etc. It can transport different tonnage of boats or yachts from the shore dock for on-shore maintenance, repair or launching of new vessels. The boat and yacht handling crane includes the following items: main structure, traveling wheel block, hoisting mechanism, steering mechanism, hydraulic transmission system and electric control system. The main structure is N type, which can transfer the boat/yacht with height surpass crane’s height.

the boat handling crane can handle different tonnage boats or yachts (10T-800T) from the shore side, it can be used for the maintenance on the shore side or can put the new boat into the water.

  • Place of Origin: China , Henan
  • Brand Name: KORIG
  • Certification: CE ISO SGS
  • Supply Ability: 10000 Set/Month
  • Min.Order Quantity: 1 set
  • Payment Terms: L/C, T/T, Western Union
  • Delivery Time: 20~30 Workdays
  • Packaging Details: Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
  • Product Detail

    company information

    Product Tags

    The Mobile boat hoist also called Travellift is widely used in aquatic clubs, voyages etc. for transporting boats or yachts into or out of shore side water channel to maintain or launch.

    1. The boat handling crane mainly consists of main structure, hoisting mechanism, steering mechanism, hydraulic transmission system, electrical control system and wheel set.The main structure form is open box shape and able to transport boats that are higher than the crane itself.

    2. Electro-hydraulic transmission system is adopted in hoisting and traveling parts and features small volume, light weight, compact structure, smooth running, quick response, small inertia, easy operation and automation. The crane is able to high-speed start, brake and turn.

    3. Multi-point hoisting disperses forces acting on the hull without strongly pressuring. Movable hoisting points and dynamic balance are suitable for boats of different types and can automatically adjust the deflection angle for adaption.

    4. Adoption of load sensitive control technology enables the crane to produce output as actual demand to prevent energy wast.

    Main technical parameter Lift capacity wheelbase span Travelling speed Lifting speed Operation model
    15-1200t 6-22m 6-20m 0-20m/min(full load) 0-40m/min(empty load) Cabin control
    Working condition Work altitude Working temperature Wind pressure while working Ma. Wind pressureNon-work Crane working class Set up adequate night lighting to meet nightly
    Less than 2000m -20-50 degree 7 grade 11 grade A5
    Steering system Steering method position Turning angle while traveling Traveling method
    Cylinder driven steering All wheel sets 90degree Straight,tuft,pivot steering,front/ Back sway

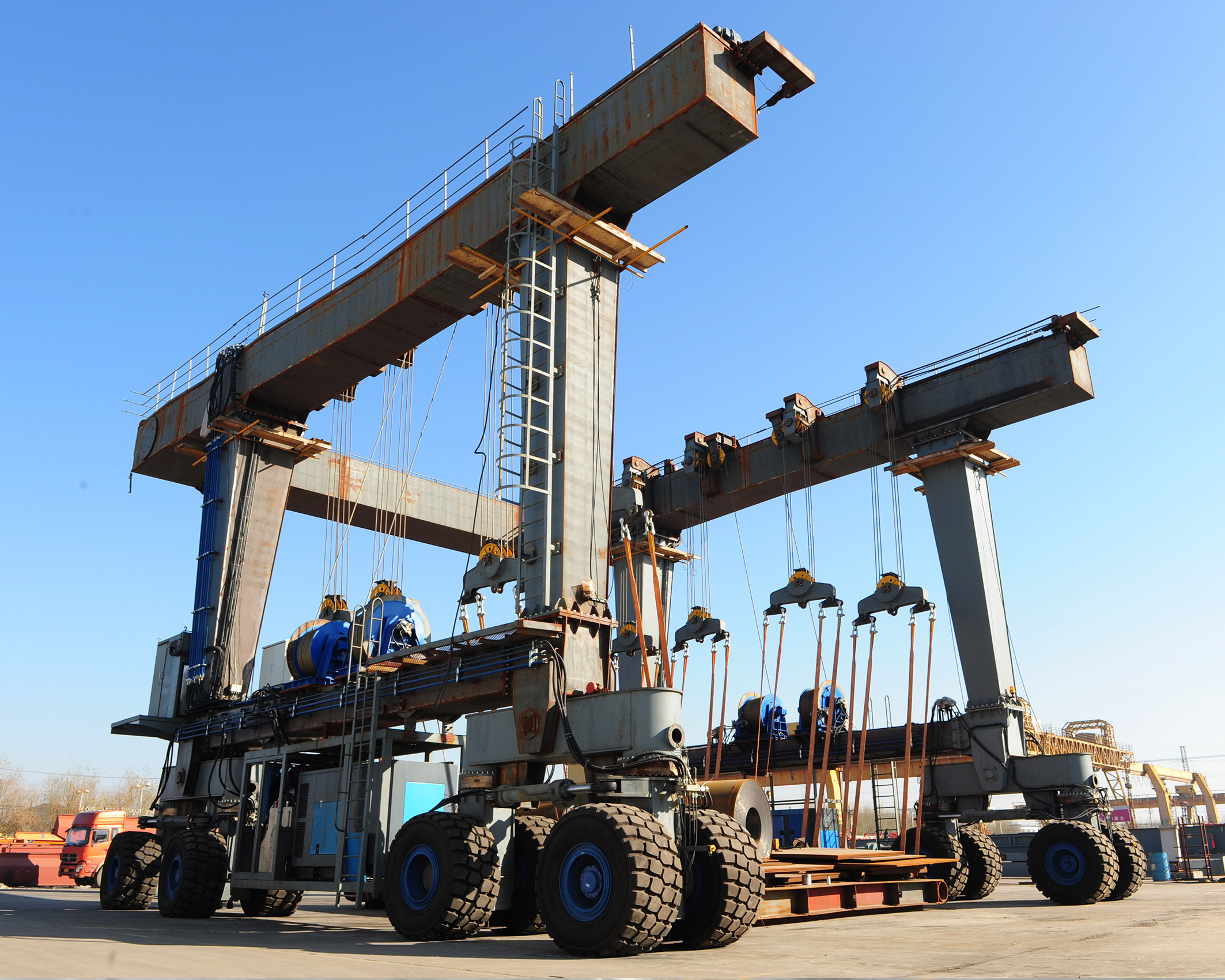

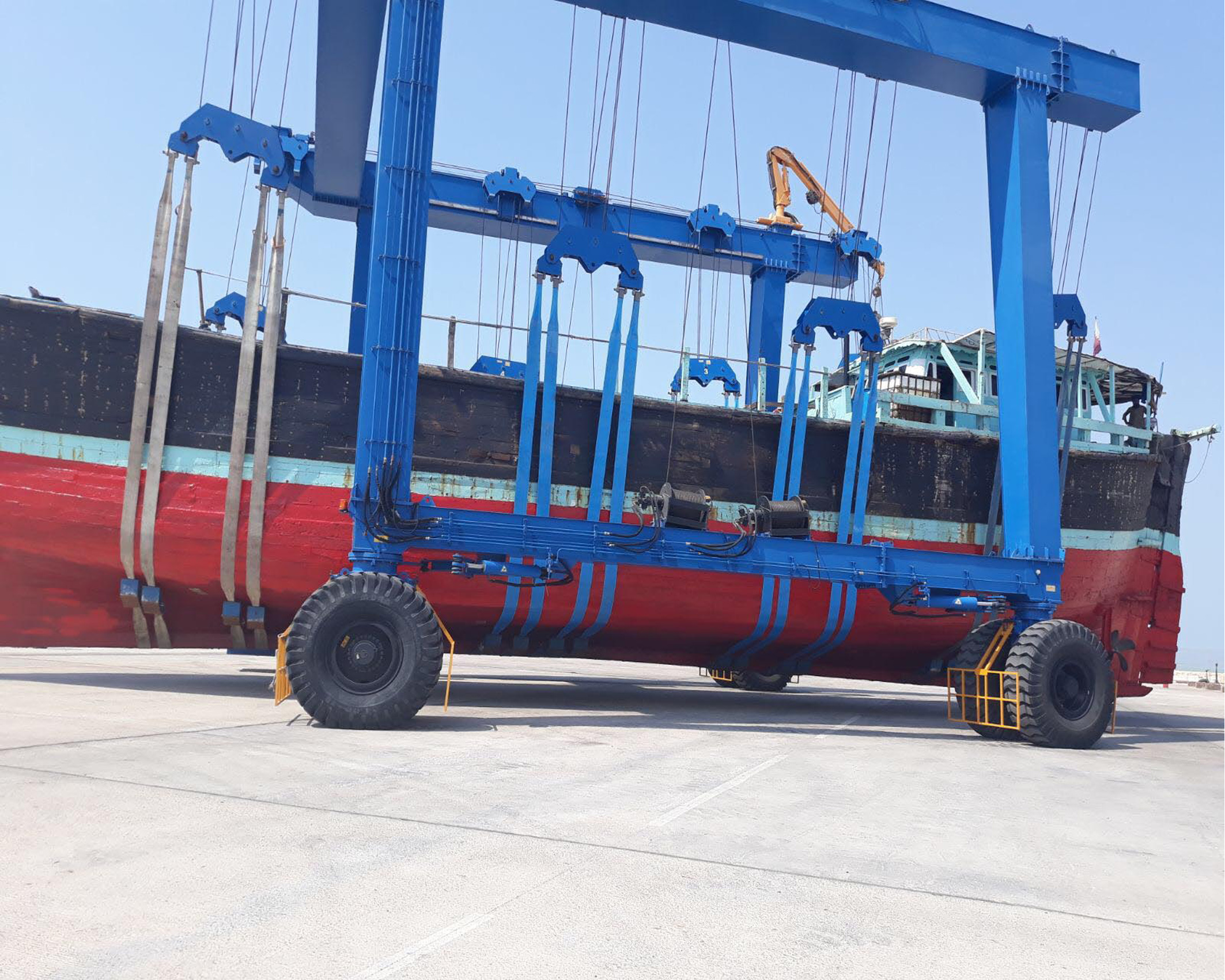

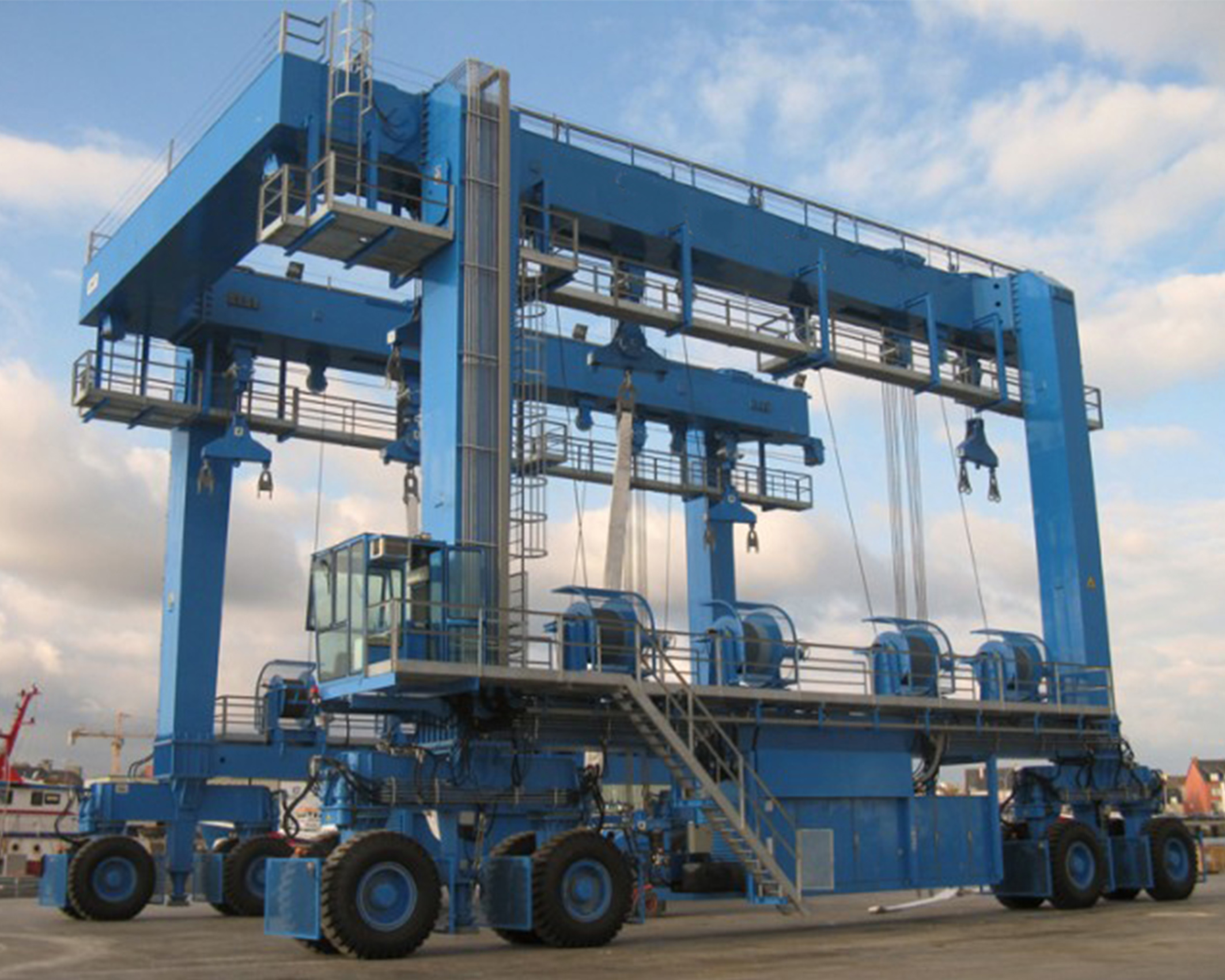

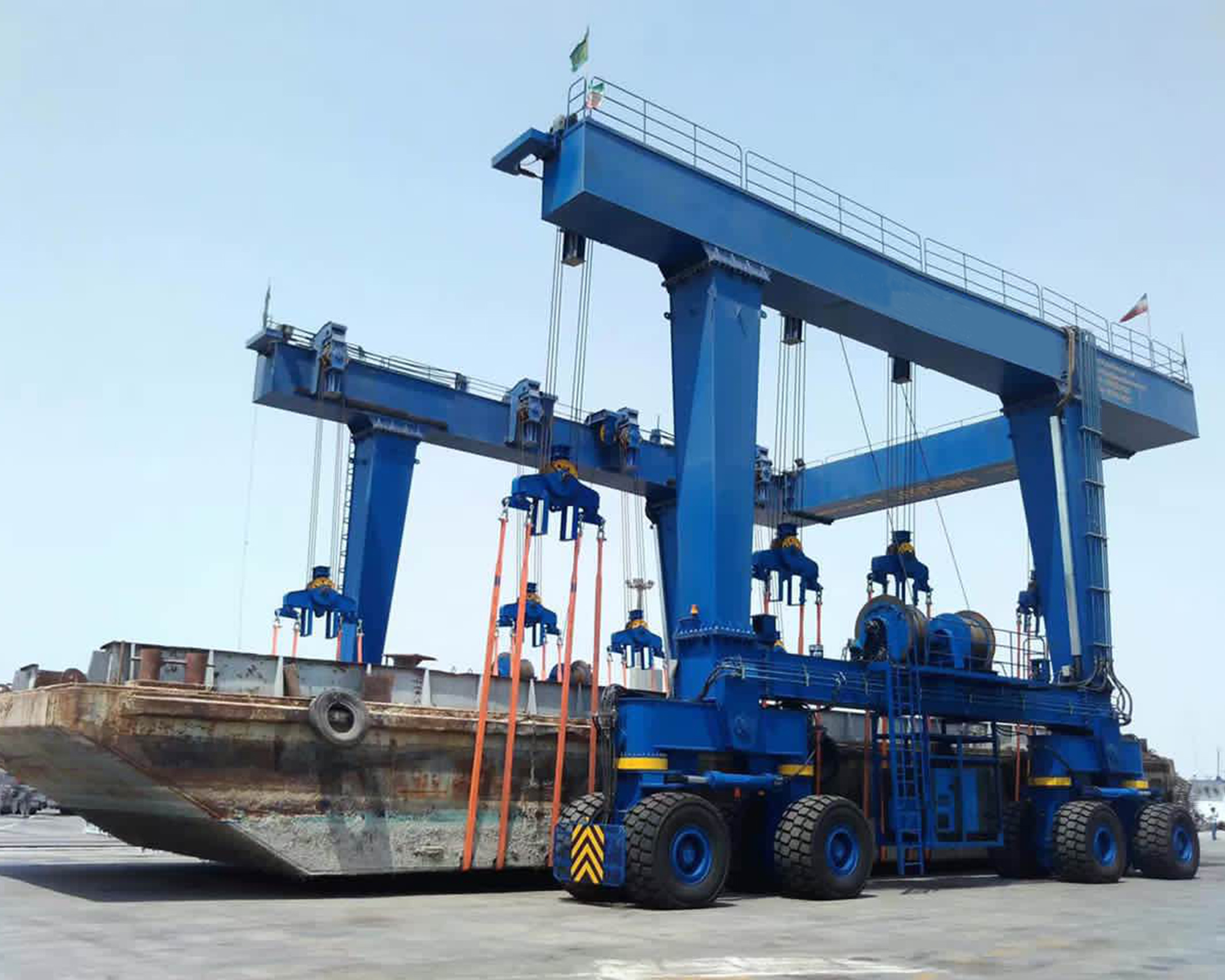

    Travellift 01Travellift 05Travellift 06Travellift 07

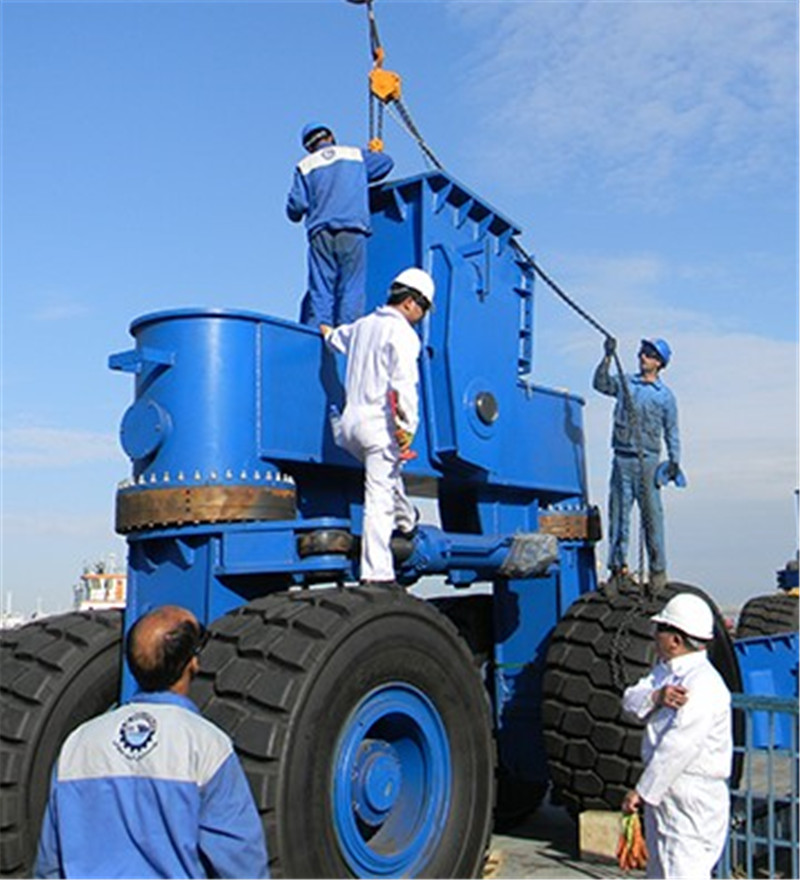

    • boat marine travel hoist Mobile Boat Lifting Yacht Lift Gantry Crane (2)

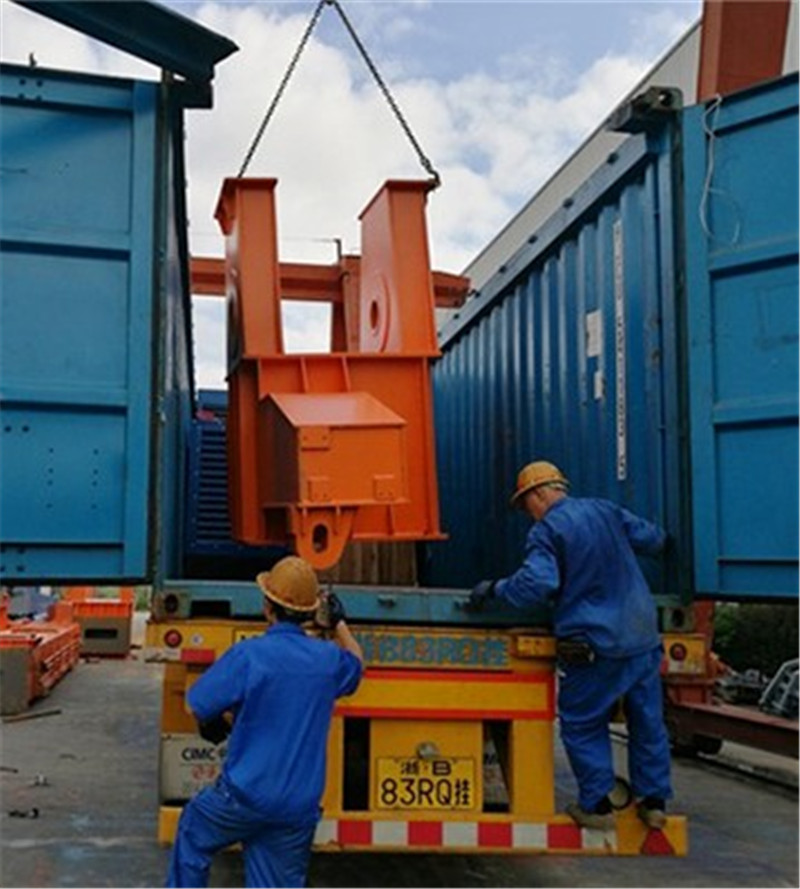

    • boat marine travel hoist Mobile Boat Lifting Yacht Lift Gantry Crane (3)
