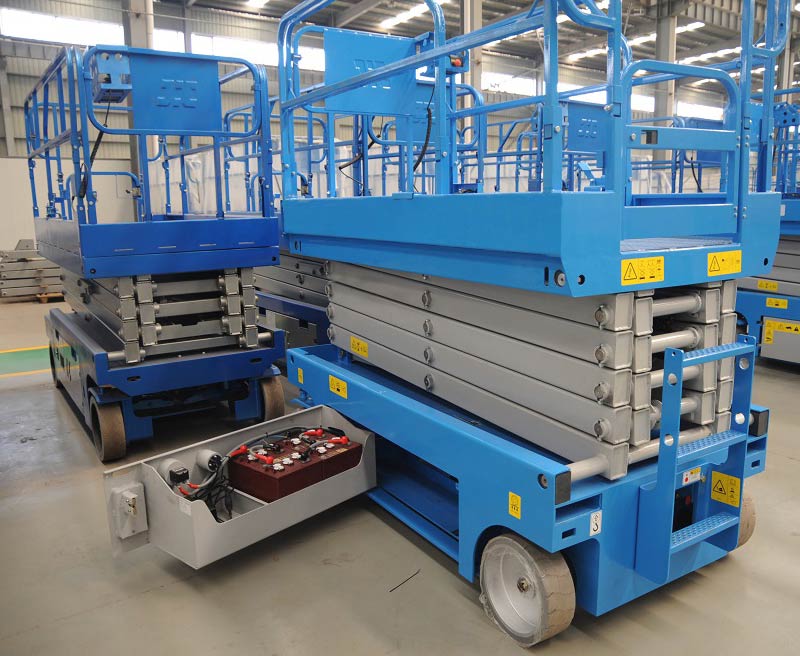

Self-Propelled Scissors Lift

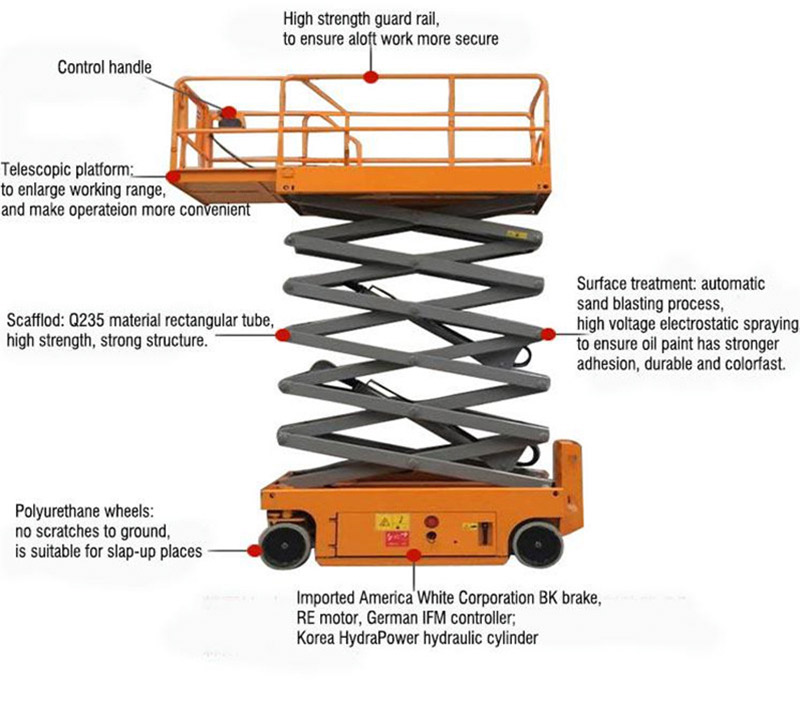

Main Features
1. Safety certification
Comply with European Union EN280 standard and obtain CE certification.
2. Self propelled
The self-propelled scissor lift has the function of automatic move, can move fast and slow under different moving conditions, only one person is required to operate the machine to complete the lifting, forwarding, backward, turning and other actions during the work at height. Compared with the traditional hydraulic platform, the work efficiency is greatly improved, and the number of operators and labor intensity are reduced. It is especially suitable for large-scale continuous high-altitude operations such as airport terminals, stations, docks, shopping malls, stadiums, residential properties, and factory workshops.
3. Stepless speed change
Only one person is required to operate, all movements are controlled by the operating handle on the worktable, and the motor is continuously variable. The service life of the battery and the motor is effectively extended, and the motor only consumes energy during operation.
4. Extension platform
The working platform can be removed, expanding the scope of work, and can meet the special needs of some users
5. Green and environmental protection
Because the machine uses DC battery power, the machine can be safely and quietly suitable for indoor or outdoor work.
6.Safety devices
Weight overload protection device; Top quality long time bearing polyurethane materials buffer; Lifting limit switch and traveling limit switch; Emergency stop system; Zero voltage protection; Phases protection device; High temperature resistance device (contact with us for more details.)teel Coil.
7.Customized
Design and manufacture according to your request.
8.Package
By national station exporting standard plywood box, wooden pallet or in 20ft & 40ft container. Or as your demands.

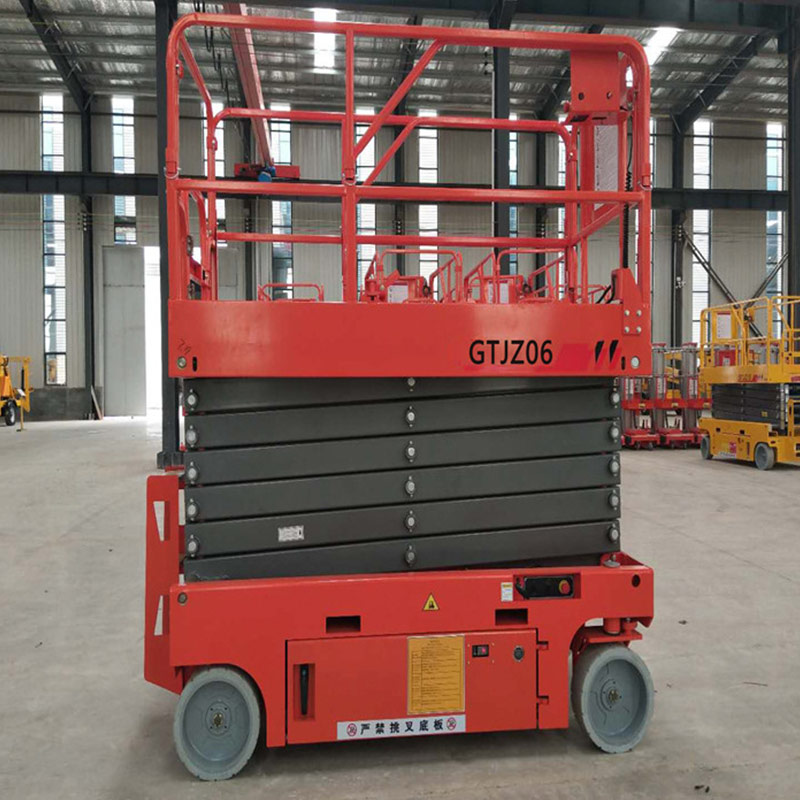

| Model |
GTJZ-6 |
GTJZ-8 |
GTJZ-10 |
GTJZ-12 |
| Maximum Working Height |
6m |
8m |
10m |
12m |
| Maximum Platform Height |
8m |
10m |
12m |
14m |
| Safe Workload |
320kg |
320kg |
320kg |
320kg |
| Working Platform Size
(Length x Width x Height) |
2.26*1.13 |
2.26*1.13 |
2.26*1.13 |
2.26*1.13 |
| Overall Dimensions
(Length × Width × Height) |
2.47*1.17*2.29 |
2.47*1.17*2.31 |
2.47*1.17*2.43 |
2.47*1.17*2.55 |
| Work Platform Extension Size |
0.9m |
0.9m |
0.9m |
0.9m |
| Minimum Ground Clearance |
0.1/0.02m |
0.1/0.02m |
0.1/0.02m |
0.1/0.02m |
| Wheelbase |
1.89m |
1.89m |
1.89m |
1.89m |
| Driving/ Lifting Motor |
24V/3KW |
24V/3KW |
24V/3KW |
24V/3KW |
| Lifting Speed |
3-5m/min |
3-5m/min |
3-5m/min |
3-5m/min |
| Machine Travel Speed
(Collapsed State) |
3.2km/h |
3.2km/h |
3.2km/h |
3.2km/h |
| Machine Travel Speed
(Lifting State) |
0.8km/h |
0.8km/h |
0.8km/h |
0.8km/h |
| Battery |
4*6V/300ah |
4*6V/300ah |
4*6V/300ah |
4*6V/230ah |
| Charger |
24V/20-30A |
24V/20-30A |
24V/20-30A |
24V/20-30A |
| Gradeability |
25% |
25% |
25% |
25% |
| Maximum Allowable Working Angle |
1.5°/3° |
1.5°/3° |
1.5°/3° |
1.5°/3° |
| Total Weight |
1350kg |
1580kg |
2300kg |
2450kg |
