QL model double girder overhead crane with rotating elecromagnetic hanging beam

Short Description:

QL double girder overhead crane is composed with Girder frame, Crane travel device, and the trolley with lifting and moving device. There are Pave the rail for the trolley moves on the main girder. The main girder joint with the two sides end carriage which with the joint point in the middle.

Product name:QL model double girder overhead crane with rotating elecromagnetic hanging beam
Working load: 5+5t-30+30t
span:7.5-31.5m
lifting height:3-30m


  • Brand Name: KORIG
  • Place of Origin: Henan, China
  • Customize Service: Available
  • Certification: CE ISO SGS
  • Min.Order Quantity: 1 set
  • Payment Terms: L/C, T/T, Western Union
  • Delivery Time: 20~30 Workdays
  • Supply Ability: 1000 Set/Month
  • Port of Shipment: Qingdao Port, Tianjin Port, Shanghai Port
  • Packaging Details: Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
  • Product Detail

    company information

    FAQ

    Product Tags

    overview

    QL Double girder overhead crane is designed to Lifting long material, such as steel bars, steel plates. The crane has two lifting points, which hanging one beam with magnet.
    QC model overhead crane is composed with Girder frame, Crane travelling device, and trolley with electro magnet. The crane are equipped with electro magnet, which makes the crane handle the steel parts easily, such as steel dall, steel ingot, steel scrap, scrap steel plate, etc.
    QC overhead crane is designed to operate in the indoor workshop or outdoor for handling small steel parts.
    The crane lifting and travelling speeds are fast, high efficiency.
    The crane could keep Magnetism after power failure.

    parameter

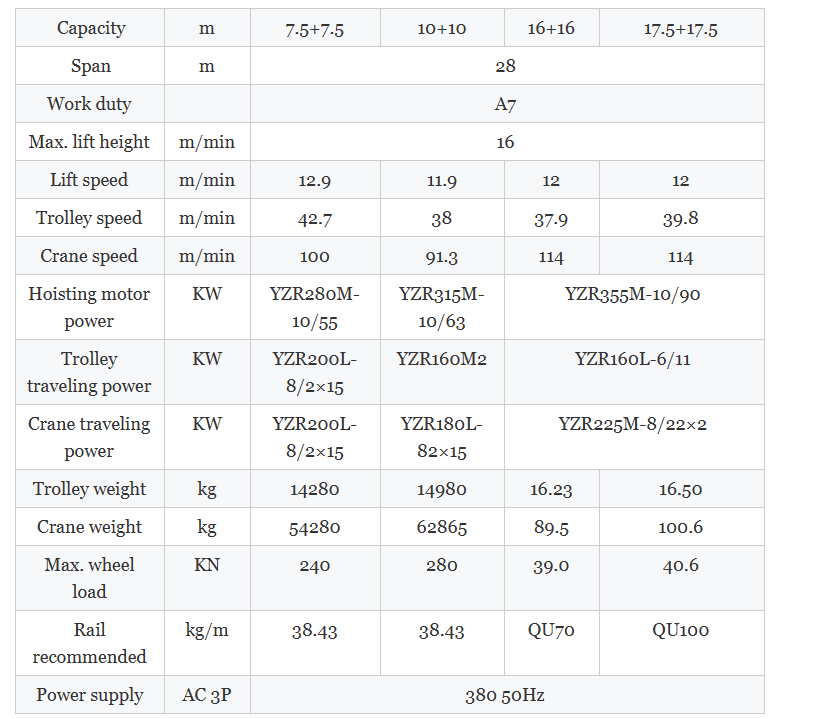

    微信图片_20230312172504

    features

    1. Heavy duty, high efficient;
    2. Special design for paper rolls lifting work;
    3. Long life span: 30-50 years;
    4. Easy for Installation and maintenance;
    5. Reasonable structure and strong rigidity;
    6. The speed can be frequency inverter speed control;
    7. Control method is cabin control or remote control;
    8. Equipping with rotary hanging beam;
    9. Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe

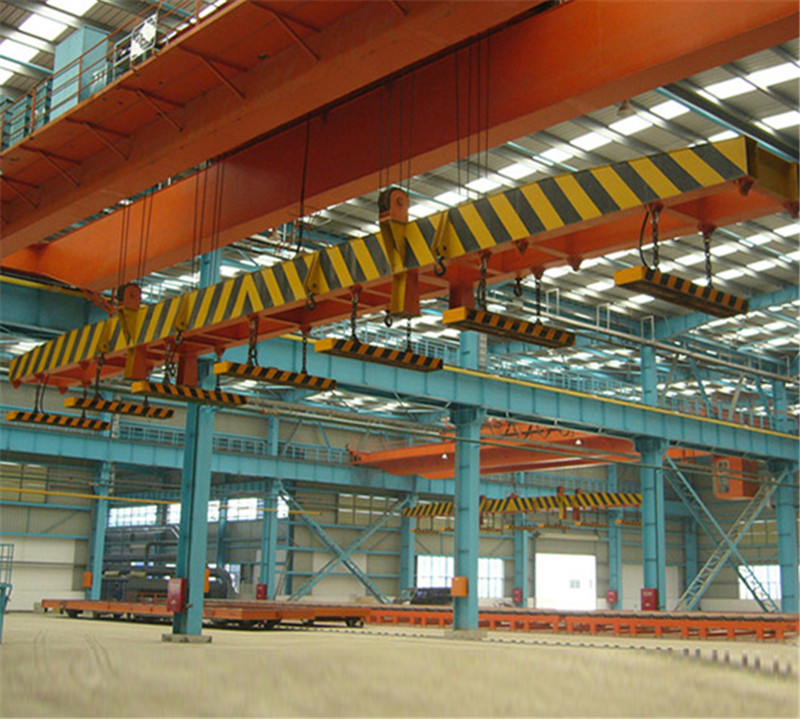

    QL model double girder overhead crane with rotating elecromagnetic hanging beam (2)

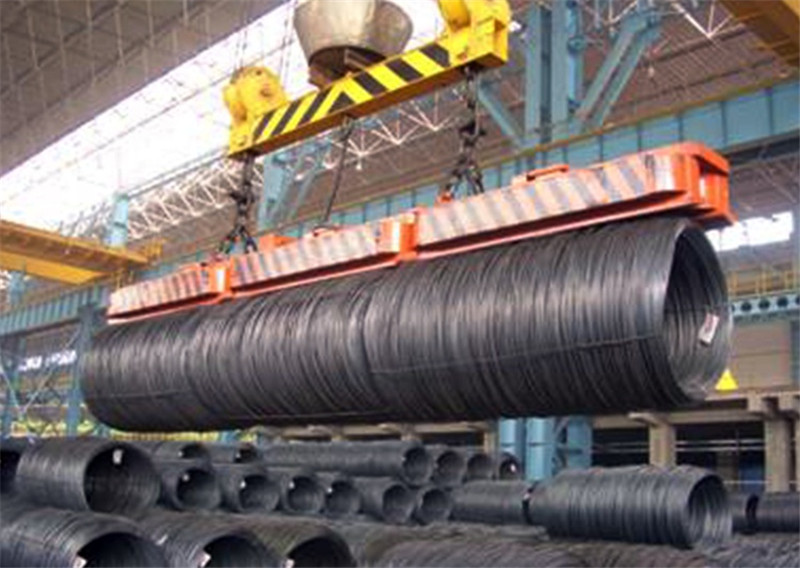

    QL model double girder overhead crane with rotating elecromagnetic hanging beam (1)

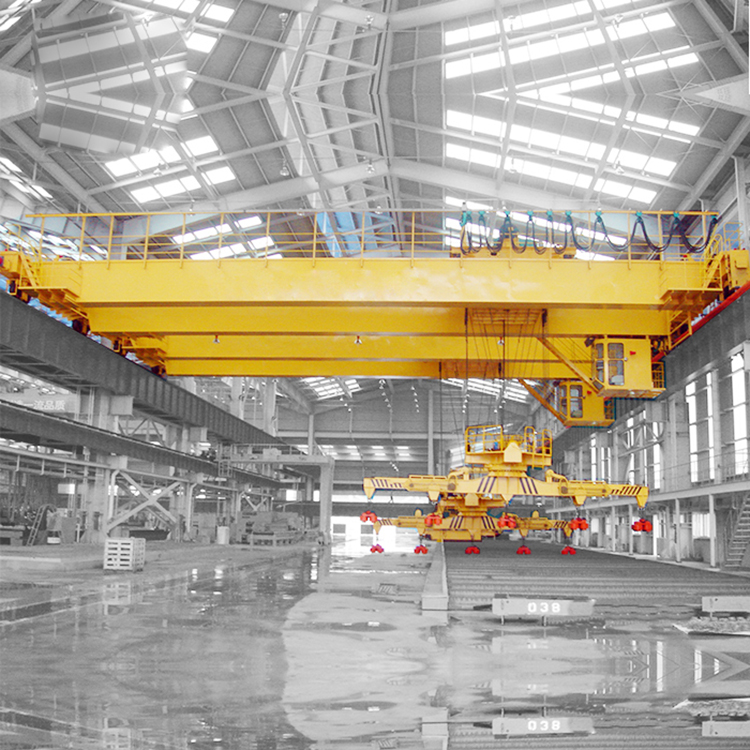

    • QL

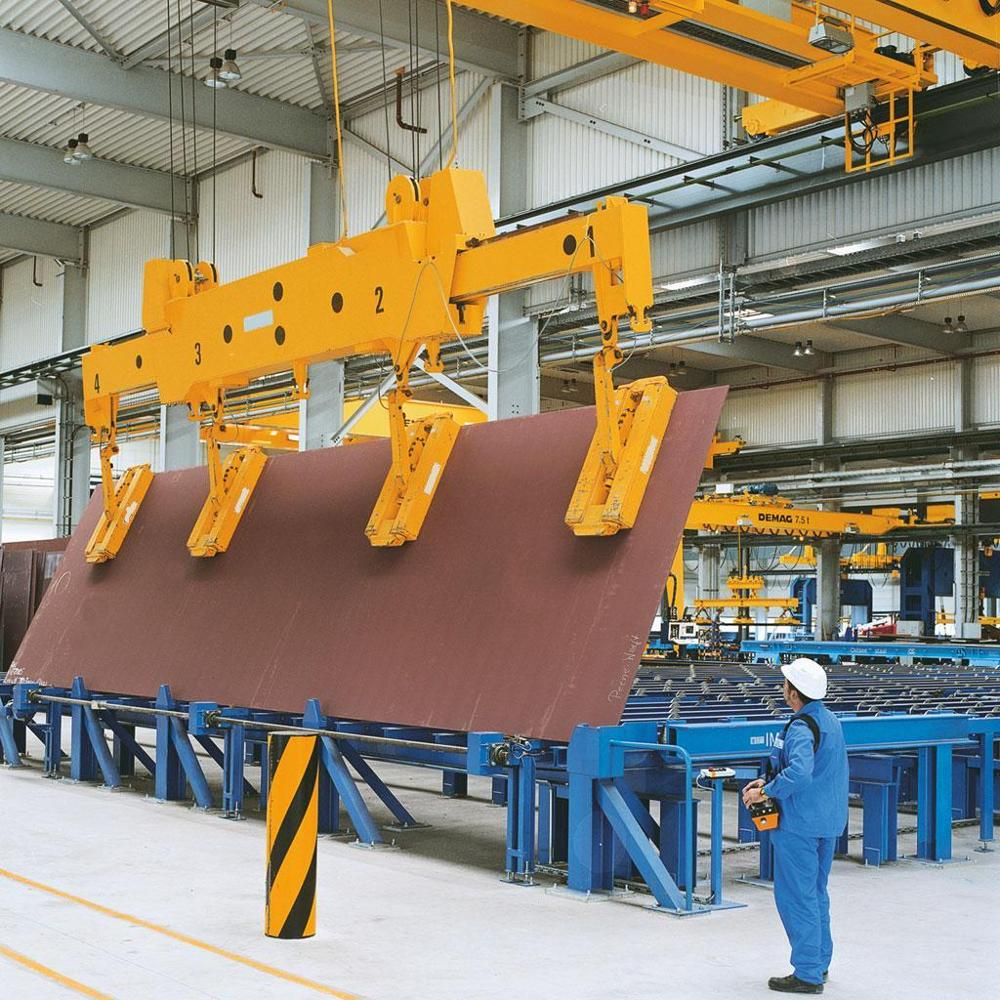

    • QL2

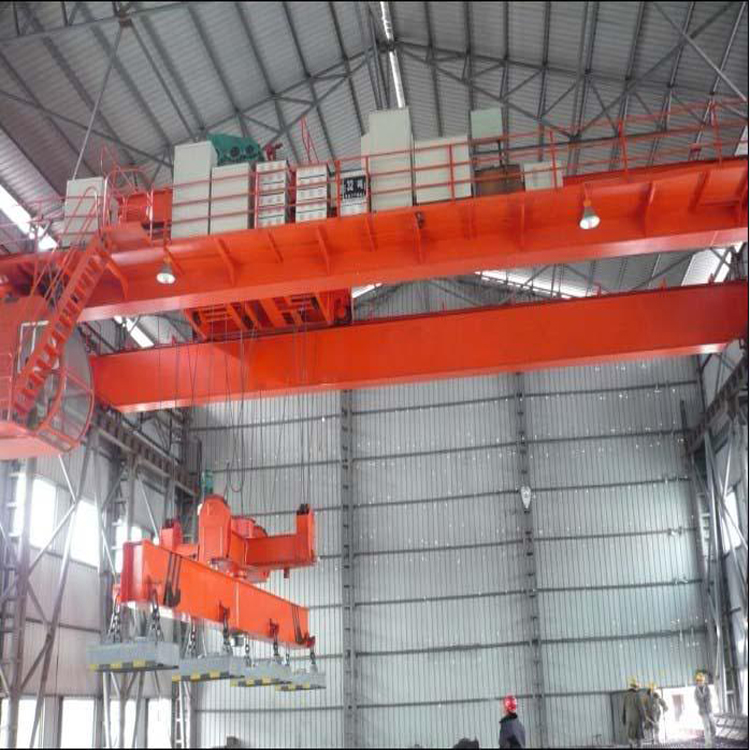

    • QL3

  • Previous:
  • Next:

  • About KORIGCRANES

    KORIGCRANES ( HENAN WEIHUA KORIG CRANES CO., LTD) located in crane hometown of China (cover more than 2/3 crane market in China), who is a trusted professional industry crane manufacturer and leading exporter. Specialized in design, manufacturing, installation and service of Overhead crane, Gantry crane, Port crane, Electric hoist etc, we have passed ISO 9001:2000, ISO 14001:2004, OHSAS 18001:1999, GB/T 19001-2000, GB/T 28001-2001, CE, SGS, GOST, TUV, BV and so on.

    Product Application

    To meet the demands of the oversea market, we independent research and development European type overhead crane, gantry crane; electrolytic aluminum multi-purpose overhead crane, hydro-power station crane etc. European type crane with light dead weight, compact structure, lower energy consumption etc. Many main performance reach the industry advanced level.
    KORIGCRANES Widely used in machinery, metallurgy, mining, electric power, railway, petroleum, chemical, logistics and other industries. Service for hundreds of large enterprises and national key projects such as China Datang Corporation, China Guodian Corporation, SPIC, Aluminum Corporation Of China(CHALCO), CNPC, Power China, China Coal, Three Gorges Group, China CRRC, Sinochem International, etc.

    Our Market

    Our cranes has been exported cranes to more than 110 countries for example Pakistan, Bangladesh, India, Vietnam, Thailand, Indonesia, Philippines, Malaysia、USA, Germany, France, Australia, Kenya, Ethiopia, Nigeria, Kazakhstan, Uzbekistan, Saudi Arabia、UAE、Bahrain、Brazil, Chile, Argentina, Peru etc and received good feedback from them. Very happy to be friends with each other come from all of the world and hope to establish long-terms good cooperation.

    KORIGCRANES has steel pre-treatment production lines, automatic welding production lines, machining centers, assembly workshops, electrical workshops, and anti-corrosion workshops. Can independently complete the whole process of crane production.

    Q. What’s the information should I provide when inquiry?
    More details or drawings, better.
    A: Lift capacity B: span C: lift height D: power source; other specials you give us will be more appreciated.

    Q. How many operating methods for my selection?
    Standard operating methods:
    A: remote control with push buttons
    B: cabin (space capsule seat) control with joystick. Choose any type as you like.

    Q. Can this type work in hazardous environment?
    A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.

    Q. Can you provide the serious lifting tools?
    A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!

    Q. How can we install the crane?
    A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
