LDP Type Single Girder Overhead Crane

Short Description:

LDP type single girder overhead crane is a specially designed single girder overhead crane, which is suitable for situations where the workshop clear headroom is low but a high lifting height is required.

The price range is from $4,000 to $8,000

Capacity: 1~10 ton

Span: 7.5~31.5 m

Lifting Height: 6 m, 9 m, 12 m, 15 m, 18 m


  • Brand Name: KORIG
  • Place of Origin: Henan, China
  • Customize Service: Available
  • Certification: CE ISO SGS
  • Min.Order Quantity: 1 set
  • Payment Terms: L/C, T/T, Western Union
  • Delivery Time: 20~30 Workdays
  • Supply Ability: 1000 Set/Month
  • Port of Shipment: Qingdao Port, Tianjin Port, Shanghai Port
  • Packaging Details: Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
  • Product Detail

    company information

    FAQ

    Product Tags

    Overview

    LDP Type low headroom single girder overhead crane belongs to very low headroom light duty lifting equipment. Its electric hoist is at one side of main girder to increase space of hook and reduce the cost, with advantages of smooth traveling, compact structure, strong rigidity, delicate operation, low noise, safety and reliablity and beautiful exterior. It is widely used in the situation that clearance height of workshop is low and the operating ambient temperature -25~+40℃.
    LDC type single girder overhead crane is designed and produced according to GB/T 3811-2008, JB/T 1306-2008 standard and used with model CD1, MD1. it is a light duty crane with rated load of 3~10 tons, The span is 7.5m~31.5m. The work duty of LDC type low headroom single girder overhead crane is A3-A4 and the lifting height is 6~20m. The main operating method is ground control(ground control, remote control, ground control + remote control). We can provide non-standard customized products according to customer requirements

    FEATURES

    Used for low height plant and factory, reduce the cost of plant and crane system.
    Increase the lifting height of hook and hoist, save space for the working place
    Operating easily and high efficient work
    Light duty single girder overhead crane, small but much useful

    Lifting Capacity (t) 1t 2t 3t 5t 10t
    Span (m) 7.5~31.5
    Lifting Mechanism & Electric Hoist Traveling Mechanism Model of Electric Hoist CD  MD
    Lifting Speed (m/min) 8(0.8/8) 7(0.7/7)
    Lifting Height (m) 6  9  12
    Hoist Traveling Speed (m/min) 20 30
    Hoist Traveling Motor Cone squirrel cage model
    Crane Traveling Mechanism Crane Traveling Speed (m/min) 20 30
    Speed Ratio 58.95 29.42
    Motor Model Cone squirrel cage model
    Power 0.8*2 1.5*2
    Rotation Speed (r/min) 1500
    Work Duty (ISO/FEM) M4/1Am
    Working System Intermedium JC=25%
    Power Supply 3 Phase 380V 50Hz Customizable
    Wheel Diameter (mm) 270
    Width of Rail (mm) 37~70

    details

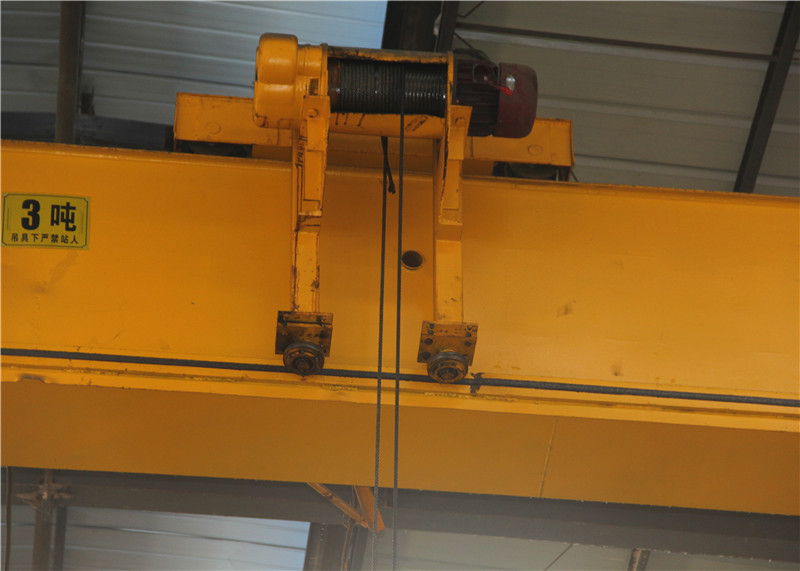

    • LDP  single girder overhead crane

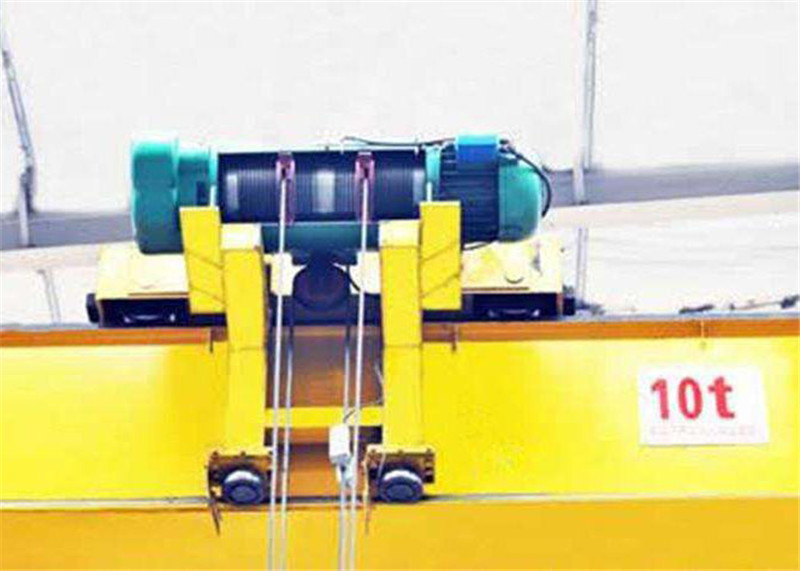

    • LDP  single girder overhead crane

  • Previous:
  • Next:

  • About KORIGCRANES

    KORIGCRANES ( HENAN WEIHUA KORIG CRANES CO., LTD) located in crane hometown of China (cover more than 2/3 crane market in China), who is a trusted professional industry crane manufacturer and leading exporter. Specialized in design, manufacturing, installation and service of Overhead crane, Gantry crane, Port crane, Electric hoist etc, we have passed ISO 9001:2000, ISO 14001:2004, OHSAS 18001:1999, GB/T 19001-2000, GB/T 28001-2001, CE, SGS, GOST, TUV, BV and so on.

    Product Application

    To meet the demands of the oversea market, we independent research and development European type overhead crane, gantry crane; electrolytic aluminum multi-purpose overhead crane, hydro-power station crane etc. European type crane with light dead weight, compact structure, lower energy consumption etc. Many main performance reach the industry advanced level.
    KORIGCRANES Widely used in machinery, metallurgy, mining, electric power, railway, petroleum, chemical, logistics and other industries. Service for hundreds of large enterprises and national key projects such as China Datang Corporation, China Guodian Corporation, SPIC, Aluminum Corporation Of China(CHALCO), CNPC, Power China, China Coal, Three Gorges Group, China CRRC, Sinochem International, etc.

    Our Market

    Our cranes has been exported cranes to more than 110 countries for example Pakistan, Bangladesh, India, Vietnam, Thailand, Indonesia, Philippines, Malaysia、USA, Germany, France, Australia, Kenya, Ethiopia, Nigeria, Kazakhstan, Uzbekistan, Saudi Arabia、UAE、Bahrain、Brazil, Chile, Argentina, Peru etc and received good feedback from them. Very happy to be friends with each other come from all of the world and hope to establish long-terms good cooperation.

    KORIGCRANES has steel pre-treatment production lines, automatic welding production lines, machining centers, assembly workshops, electrical workshops, and anti-corrosion workshops. Can independently complete the whole process of crane production.

    Q. What’s the information should I provide when inquiry?
    More details or drawings, better.
    A: Lift capacity B: span C: lift height D: power source; other specials you give us will be more appreciated.

    Q. How many operating methods for my selection?
    Standard operating methods:
    A: remote control with push buttons
    B: cabin (space capsule seat) control with joystick. Choose any type as you like.

    Q. Can this type work in hazardous environment?
    A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.

    Q. Can you provide the serious lifting tools?
    A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!

    Q. How can we install the crane?
    A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
