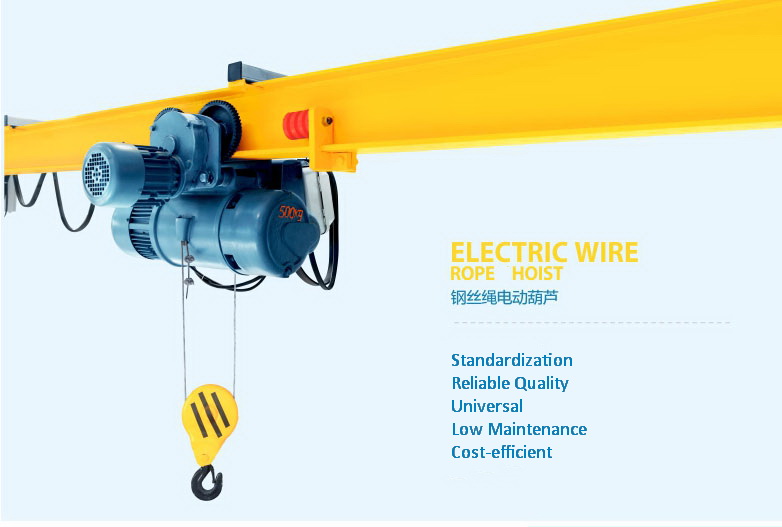

High Quality Electric Wire Rope Hoist

Short Description:

Electric wire rope hoist is a type of material handling equipment, installed on a single beam crane, linear curve strander beams or it can be used at the hoisting mechanism of double beam crane, gantry crane, linear crane for material handling by industrial and mining enterprises, railways, and warehouses, etc.

Max lifting weight:25ton

Max lifting height:9m or customised


  • Brand Name: KORIG
  • Place of Origin: Henan, China
  • Customize Service: Available
  • Certification: CE ISO SGS
  • Min.Order Quantity: 1 set
  • Payment Terms: L/C, T/T, Western Union
  • Delivery Time: 20~30 Workdays
  • Supply Ability: 1000 Set/Month
  • Port of Shipment: Qingdao Port, Tianjin Port, Shanghai Port
  • Packaging Details: Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
  • Product Detail

    company information

    FAQ

    Product Tags

    overview

    We depend on sturdy technical force and continually create sophisticated technologies to meet the demand of China Wire Rope Electric Hoists and Wire Rope Hoists, Our stock have valued 8 million dollar , you can find the competitive parts within short delivery time. Our company is not only your partner in business, but also our company is your assistant in the coming corporation.
    Individual needs require specific solutions. That is why we developed the CD/MD Series, HB Explosion Proof Series, YH Metallurgy Series European Series. You can benefit from ground-breaking flexibility in all types of applications: from stationary installations to crane systems. For the first time, a rope hoist can be built either in a C-design or co-axial design utilising one basic technology.

    The lifting capacity of CD/MD wire rope hoist is 0,5 to 32 ton and the working class is M3 and M4.

    parameter

    Type CD MD
    Lifting Weight(t) 0.25 0.5 1 2 3 5 10 16 20
    Lifting Height(m) 3~9 3~9 6~30 6~30 6~30 6~30 9~30 9~18 9~18
    Hoisting Speed(m/min) 8(0.8/8) 7(0.7/7) 3.5(0.35/3.5) 4
    Traveling Speed(m/min) 20 20/30 20
    Wire Rope Dia(mm) 3.6 4.8 7.7 11 13 15 17.5 19.5
    Specification 6×19 6×37+1 6×37+1 6×37+1 6×37+1 6×37+1 6×37+1 6×37+1 6×37+1
    Lifting Motor Power(kw) 0.4 0.8 0.2/0.8 1.5 0.4/1.5 3.0 0.4/3.0 4.5 0.4/4.5 7.5 0.8/7.5 13 1.5/1.3 13 1.5/13 18.5
    Rotation Speed(r/min) 1380
    Current(A) 1.25 2.4 0.72/2.4 4.3 12.5/4.3 7.6 1.25/7.6 11 1.25/11 18 2.4/18 30 4.3/30 41.7
    Travel Motor Power(kw) 0.06 0.2 0.4 0.8 0.8×2 0.8×4
    Rotation Speed(r/min) 1400 1380
    Current(A) 0.3 0.72 1.25 2.4 4.3
    Working System Intermediate FC=25%
    Power Source 3 Phase 380V 50Hz Customizable

    application

    The products meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane, eot crane, universal gantry crane, rubber tyre and rail mounted container gantry crane four link type portal crane,grab bucket crane, jib crane,marine deck crane,electric hoist,electric winch,mobile platforms and other types of hydraulic crane technical requirements.

    • 微信图片_20220427162045

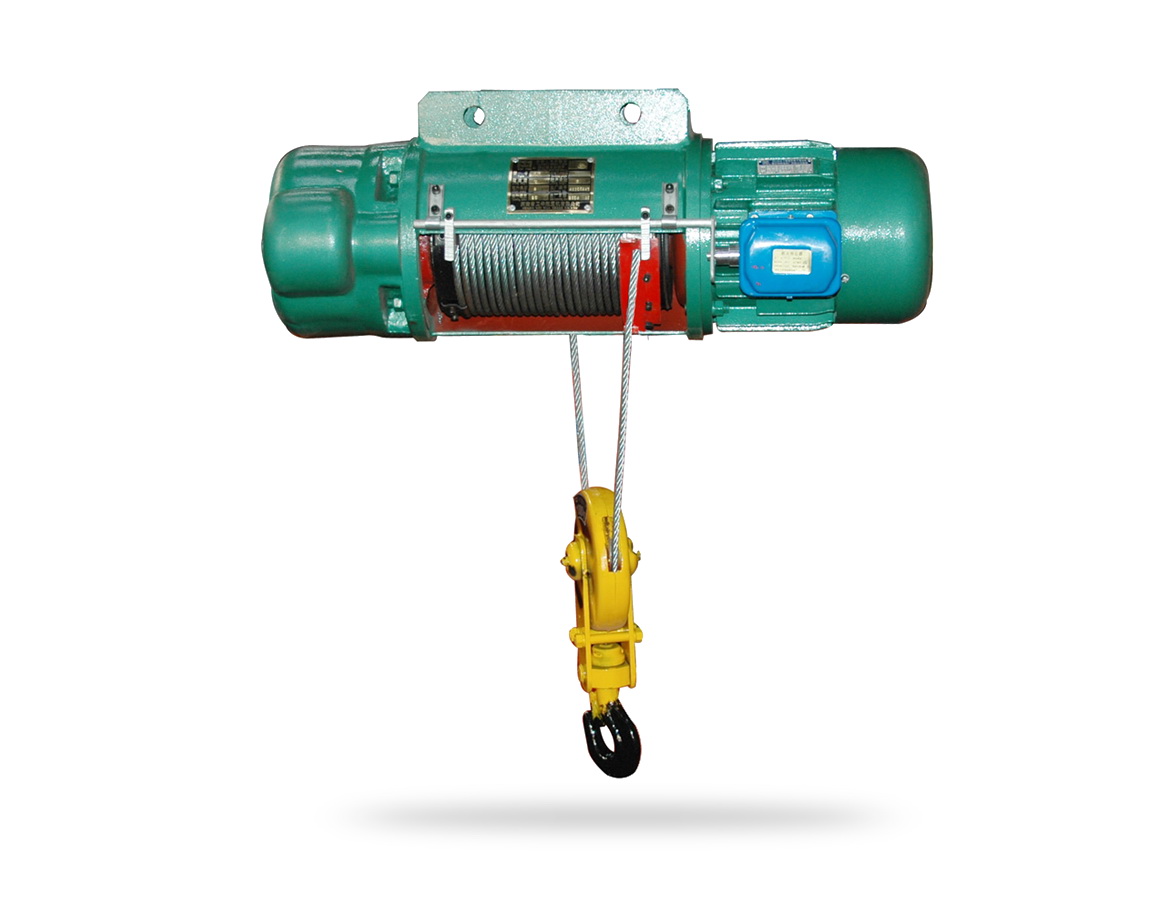

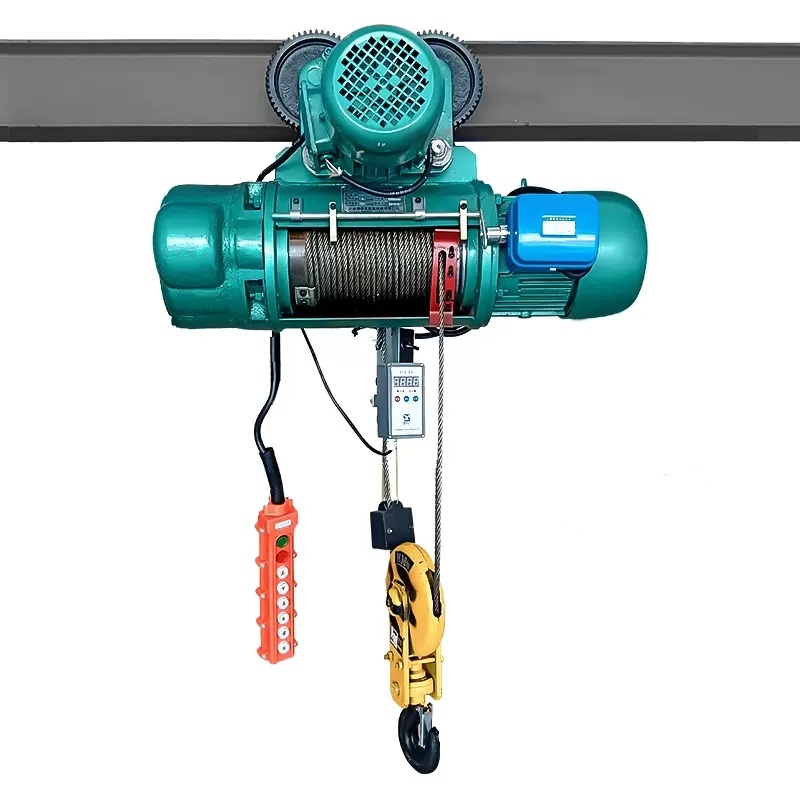

    • Wire Rope Hoist

  • Previous:
  • Next:

  • About KORIGCRANES

    KORIGCRANES ( HENAN WEIHUA KORIG CRANES CO., LTD) located in crane hometown of China (cover more than 2/3 crane market in China), who is a trusted professional industry crane manufacturer and leading exporter. Specialized in design, manufacturing, installation and service of Overhead crane, Gantry crane, Port crane, Electric hoist etc, we have passed ISO 9001:2000, ISO 14001:2004, OHSAS 18001:1999, GB/T 19001-2000, GB/T 28001-2001, CE, SGS, GOST, TUV, BV and so on.

    Product Application

    To meet the demands of the oversea market, we independent research and development European type overhead crane, gantry crane; electrolytic aluminum multi-purpose overhead crane, hydro-power station crane etc. European type crane with light dead weight, compact structure, lower energy consumption etc. Many main performance reach the industry advanced level.
    KORIGCRANES Widely used in machinery, metallurgy, mining, electric power, railway, petroleum, chemical, logistics and other industries. Service for hundreds of large enterprises and national key projects such as China Datang Corporation, China Guodian Corporation, SPIC, Aluminum Corporation Of China(CHALCO), CNPC, Power China, China Coal, Three Gorges Group, China CRRC, Sinochem International, etc.

    Our Market

    Our cranes has been exported cranes to more than 110 countries for example Pakistan, Bangladesh, India, Vietnam, Thailand, Indonesia, Philippines, Malaysia、USA, Germany, France, Australia, Kenya, Ethiopia, Nigeria, Kazakhstan, Uzbekistan, Saudi Arabia、UAE、Bahrain、Brazil, Chile, Argentina, Peru etc and received good feedback from them. Very happy to be friends with each other come from all of the world and hope to establish long-terms good cooperation.

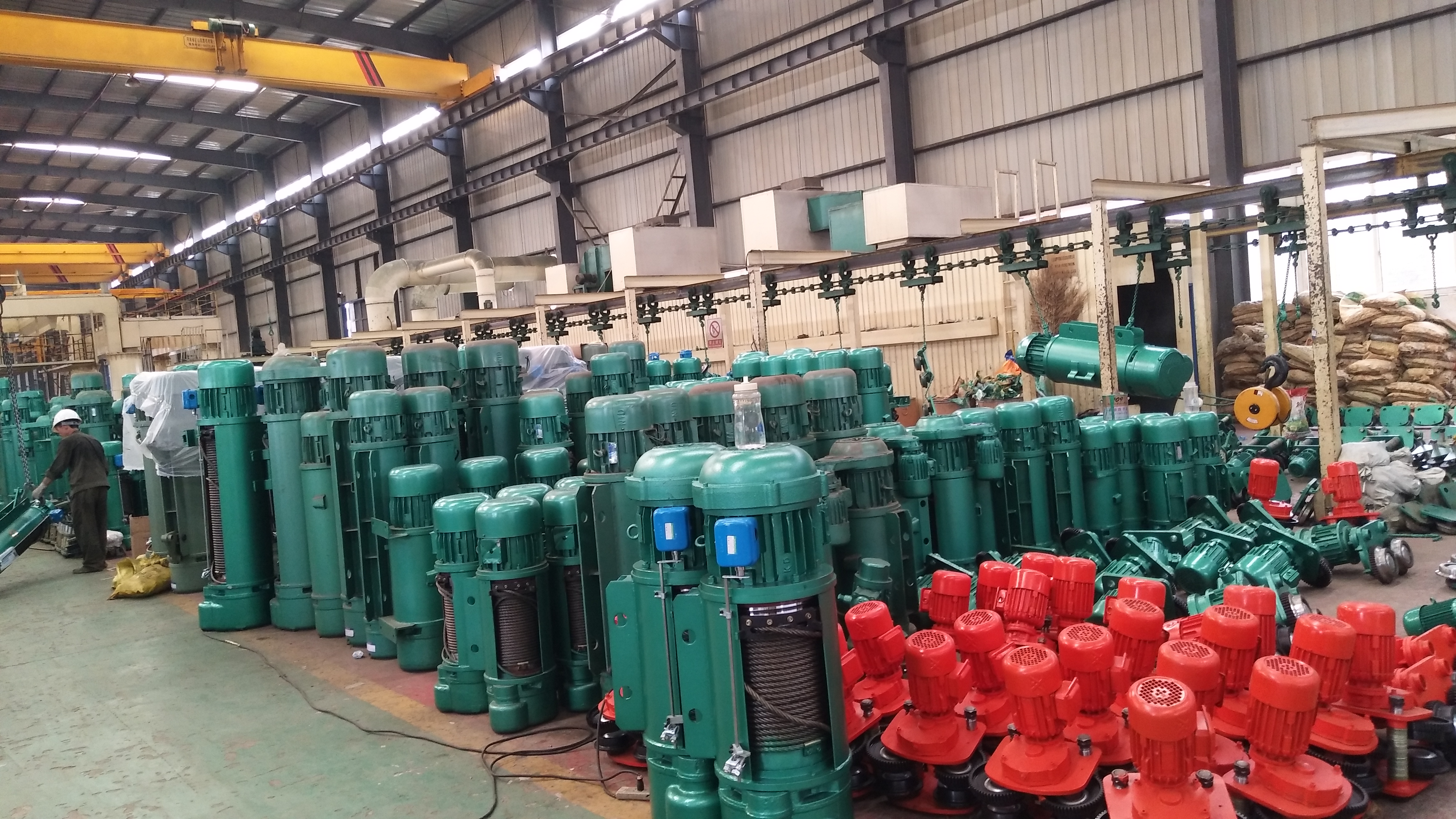

    KORIGCRANES has steel pre-treatment production lines, automatic welding production lines, machining centers, assembly workshops, electrical workshops, and anti-corrosion workshops. Can independently complete the whole process of crane production.

    Q. What’s the information should I provide when inquiry?
    More details or drawings, better.
    A: Lift capacity B: span C: lift height D: power source; other specials you give us will be more appreciated.

    Q. How many operating methods for my selection?
    Standard operating methods:
    A: remote control with push buttons
    B: cabin (space capsule seat) control with joystick. Choose any type as you like.

    Q. Can this type work in hazardous environment?
    A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.

    Q. Can you provide the serious lifting tools?
    A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!

    Q. How can we install the crane?
    A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
