U-Shaped Rubber Tyre Gantry Crane

Short Description:

A robust, flexible, and autonomous load lifting and handling solution for industrial warehouses and yards that can be used in a large number of sectors.

Capacity: 10t-500 t

Span: Customizable

Lifting Height: Customizable


  • Brand Name: KORIG
  • Place of Origin: Henan, China
  • Customize Service: Available
  • Certification: CE ISO SGS
  • Min.Order Quantity: 1 set
  • Payment Terms: L/C, T/T, Western Union
  • Delivery Time: 20~30 Workdays
  • Supply Ability: 1000 Set/Month
  • Port of Shipment: Qingdao Port, Tianjin Port, Shanghai Port
  • Packaging Details: Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
  • Product Detail

    company information

    FAQ

    Product Tags

    RESISTANT, ROBUST AND RELIABLE

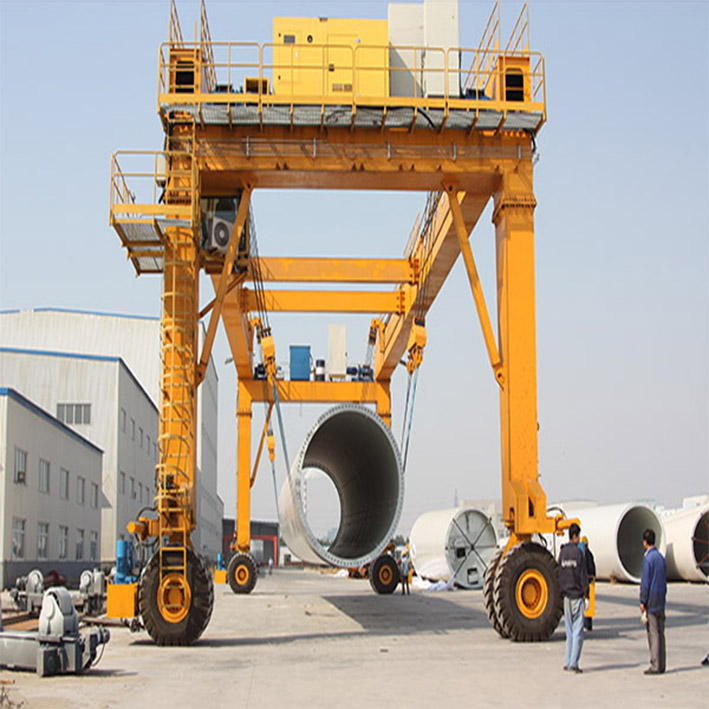

    Our U type double girder rubber tyred gantry cranes are adapted to your production flows and changes in processes thanks to their high level of autonomy and manageability, transforming load lifting and handling processes into a safe, easy, and profitable task.
    Solid construction: We design and manufacture automotive gantry cranes that are structurally stable, robust, and reliable, operating constantly throughout their service lives
    Hoist point customisation: Designed for all types of swings for your various lifting needs. 2 speeds for lifting and transferring to provide precise, gentle and controlled movement.
    Movement of extremely long pieces: two machines used in tandem to maximise your production performance.

    U-Shaped Rubber Tyre Gantry Crane parameter

    Loading capacity 0 ~ 50t
    Lifting height 3 ~ 30 m or customized
    Lifting speed Single speed: 1 ~ 8 m/min; or customized

    Variable frequency speed: 1 ~ 12 m/min; or customized

    Span 5~35 m
    Lifting mechanism Hoist trolley or Winch trolley
    Working class A3 ~ A7
    Working temperature -20 ~ 40 ℃
    Power supply AC-3Phase-220//230380/400/415/440V-50/60Hz
    Control voltage DC-24 / 36V
    Motor protection class IP54 IP55 IP65
    Control way Ground handle control(Push button),wireless remote control,cabnient control
    Safety device Buffer,current overload protection,overload device,power failure protection
    Application area Factory,workshop,warehouse,power station,logstic,etc.
    Painting color Yellow,Red or Customzied

    SAFETY AND ERGONOMICS

    Our first priority is to guarantee operator safety and facilitate their tasks for continuous improvement in the processes they carry out.
    Remote control with weight indicator: clearly and safely control what is happening at all times.
    Filled anti-puncture tyres (optional): injected with polyurethane that solidifies the wheel’s interior and provides 15% greater load capacity.
    Easy and safe access with stairs, gangways and life lines to facilitate maintenance tasks.
    Sound insulation: sound level reduction.
    Stop push-buttons: In the event of an emergency, you can stop the machine from any position.
    Remote control reset push-button: the remote control does not take over until the button is pressed.

    LOW CONSUMPTION, COMMITTED TO THE ENVIRONMENT.

    Accelerated diesel engines: delivering the power necessary at all times.

    LESS MAINTENANCE.

    Proper maintenance can extend a double girder gantry crane’s service life exponentially. Our commitment is always to manufacture equipment that requires minimal maintenance and to provide the best after-sales service.

    We work with leading manufacturing brands, using the highest quality components for our rubber tyre gantry cranes.
    Easy access to key equipment components, and additional assistance systems for maintenance, like maintenance lifters.

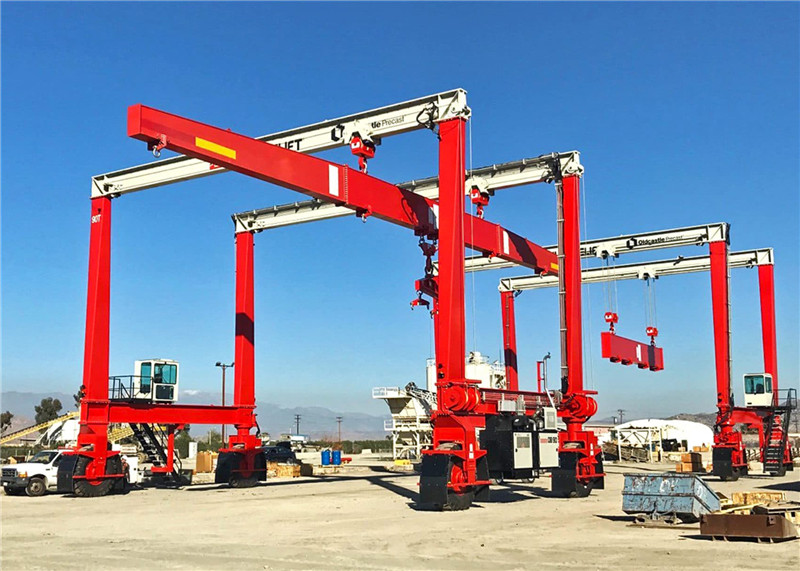

    • LT (13)
    • LT (16)

  • Previous:
  • Next:

  • About KORIGCRANES

    KORIGCRANES ( HENAN WEIHUA KORIG CRANES CO., LTD) located in crane hometown of China (cover more than 2/3 crane market in China), who is a trusted professional industry crane manufacturer and leading exporter. Specialized in design, manufacturing, installation and service of Overhead crane, Gantry crane, Port crane, Electric hoist etc, we have passed ISO 9001:2000, ISO 14001:2004, OHSAS 18001:1999, GB/T 19001-2000, GB/T 28001-2001, CE, SGS, GOST, TUV, BV and so on.

    Product Application

    To meet the demands of the oversea market, we independent research and development European type overhead crane, gantry crane; electrolytic aluminum multi-purpose overhead crane, hydro-power station crane etc. European type crane with light dead weight, compact structure, lower energy consumption etc. Many main performance reach the industry advanced level.
    KORIGCRANES Widely used in machinery, metallurgy, mining, electric power, railway, petroleum, chemical, logistics and other industries. Service for hundreds of large enterprises and national key projects such as China Datang Corporation, China Guodian Corporation, SPIC, Aluminum Corporation Of China(CHALCO), CNPC, Power China, China Coal, Three Gorges Group, China CRRC, Sinochem International, etc.

    Our Market

    Our cranes has been exported cranes to more than 110 countries for example Pakistan, Bangladesh, India, Vietnam, Thailand, Indonesia, Philippines, Malaysia、USA, Germany, France, Australia, Kenya, Ethiopia, Nigeria, Kazakhstan, Uzbekistan, Saudi Arabia、UAE、Bahrain、Brazil, Chile, Argentina, Peru etc and received good feedback from them. Very happy to be friends with each other come from all of the world and hope to establish long-terms good cooperation.

    KORIGCRANES has steel pre-treatment production lines, automatic welding production lines, machining centers, assembly workshops, electrical workshops, and anti-corrosion workshops. Can independently complete the whole process of crane production.

    Q. What’s the information should I provide when inquiry?
    More details or drawings, better.
    A: Lift capacity B: span C: lift height D: power source; other specials you give us will be more appreciated.

    Q. How many operating methods for my selection?
    Standard operating methods:
    A: remote control with push buttons
    B: cabin (space capsule seat) control with joystick. Choose any type as you like.

    Q. Can this type work in hazardous environment?
    A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.

    Q. Can you provide the serious lifting tools?
    A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!

    Q. How can we install the crane?
    A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
