Cask Handling Overhead Crane

Short Description:

Casks have been an essential part of the nuclear industry’s transportation of radioactive materials for decades, especially in the storage of spent fuel for plant sites around the world. Spent fuel transport has long been an important part of industrial activity at the back end of the nuclear fuel cycle, especially the reprocessing industry. Our cask handling overhead crane is a professional crane that can transport spent nuclear fuel safely and efficiently. Cask handling gantry crane is specially designed for nuclear power industry, which is used for cask handling and tranfer.

Name: Cask Handling Overhead Crane

Capacity: 80 t

Span: 23.6 m

Lifting height: 12.5 m


  • :
  • Product Detail

    company information


    Product Tags

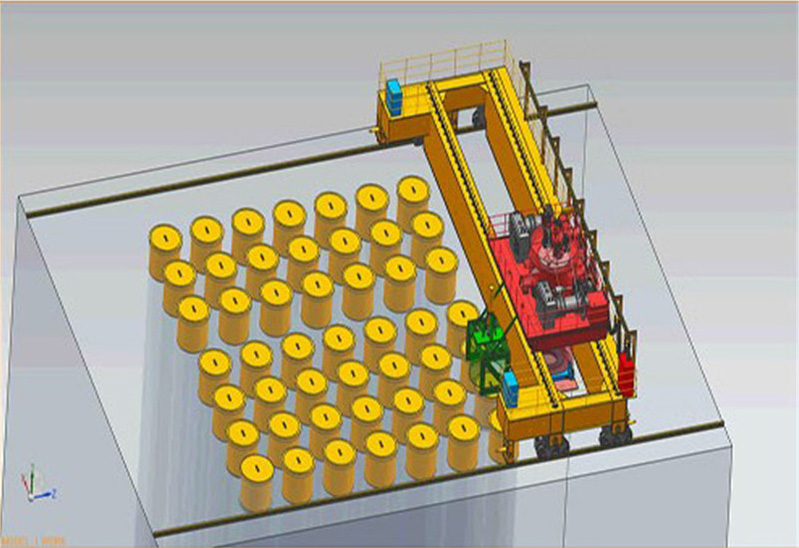

    The spent fuel casks in the shield cover can be transported and hoisted into the designated shaft according to the orders with the help of cask handling overhead crane. If necessary, the spent fuel casks are hoisted out of the shafts according to the orders, and handled into the shielded transfer casks through the transfer hoisting hole or transported to the loading position and returned the remaining fuel element to the reactor core by the method of suction.


    Main lifting

    80 t

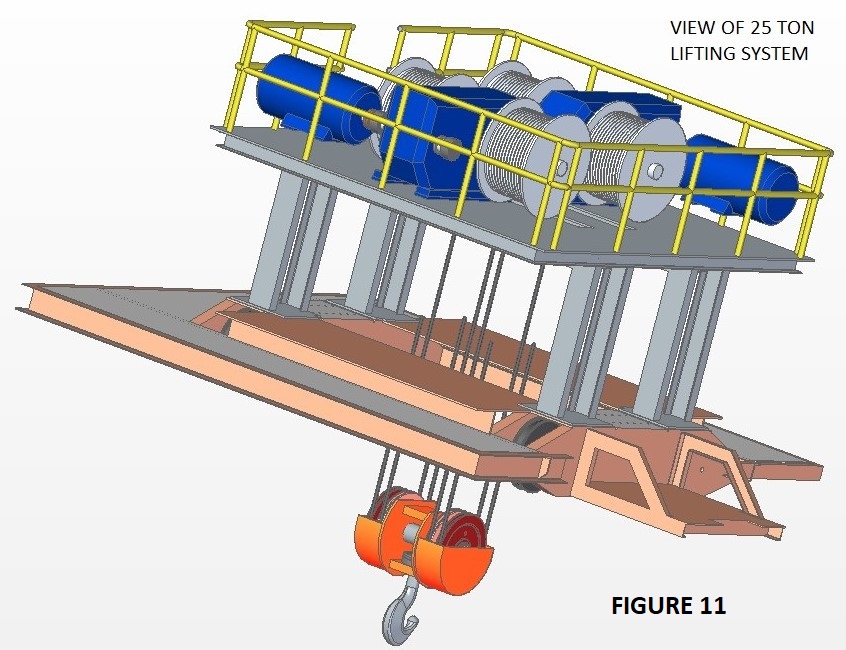

    Central lifting

    25 t

    Auxiliary lifting

    5 t


    23.6 m

    Main lifting height

    12.5 m

    Central lifting height

    13.5 m

    Auxiliary lifting height

    24 m

    Lifting speed

    0.5-2 m/min

    Long travelling speed

    1.2-3.5 m/min

    Cross travelling speed

    1.2-3.5 m/min

    Positioning Accuracy

    ±3 mm


    High temperature gas cooled reactor adopts advanced CAE simulation analysis and reliability design, by means of redundant design, to guarantee the safety and reliability of complex mechanical structure.

    It adopts independent detection and positioning system and adopts high-precision matching mode in mechanical structure, which guarantee the crane positioning accuracy within ±3mm.

    Through bottom plate alignment device and special lifting device, the complex transfer process of the spent fuel casks is realized.

    Through the advanced control system and the application of intelligentized control program, it can realize dynamic display and image automatic switching. It also has the functions of remote operation monitoring and automatic operation.

    cask handling overhead crane (4)
    cask handling overhead crane (3)

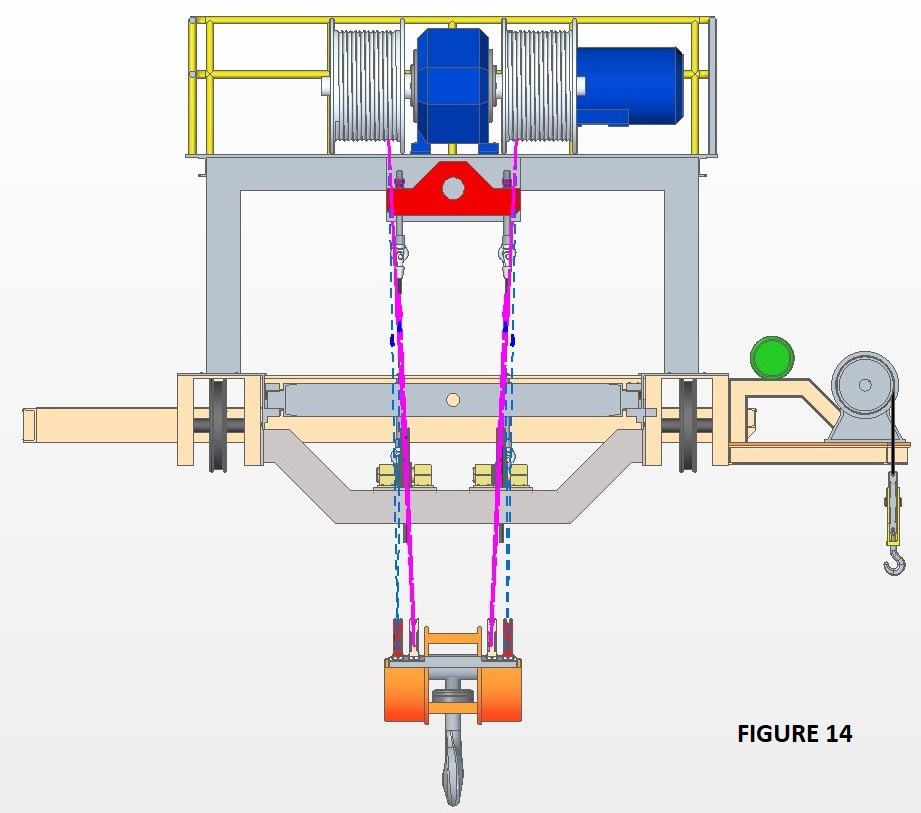

    • cask handling overhead crane (1)

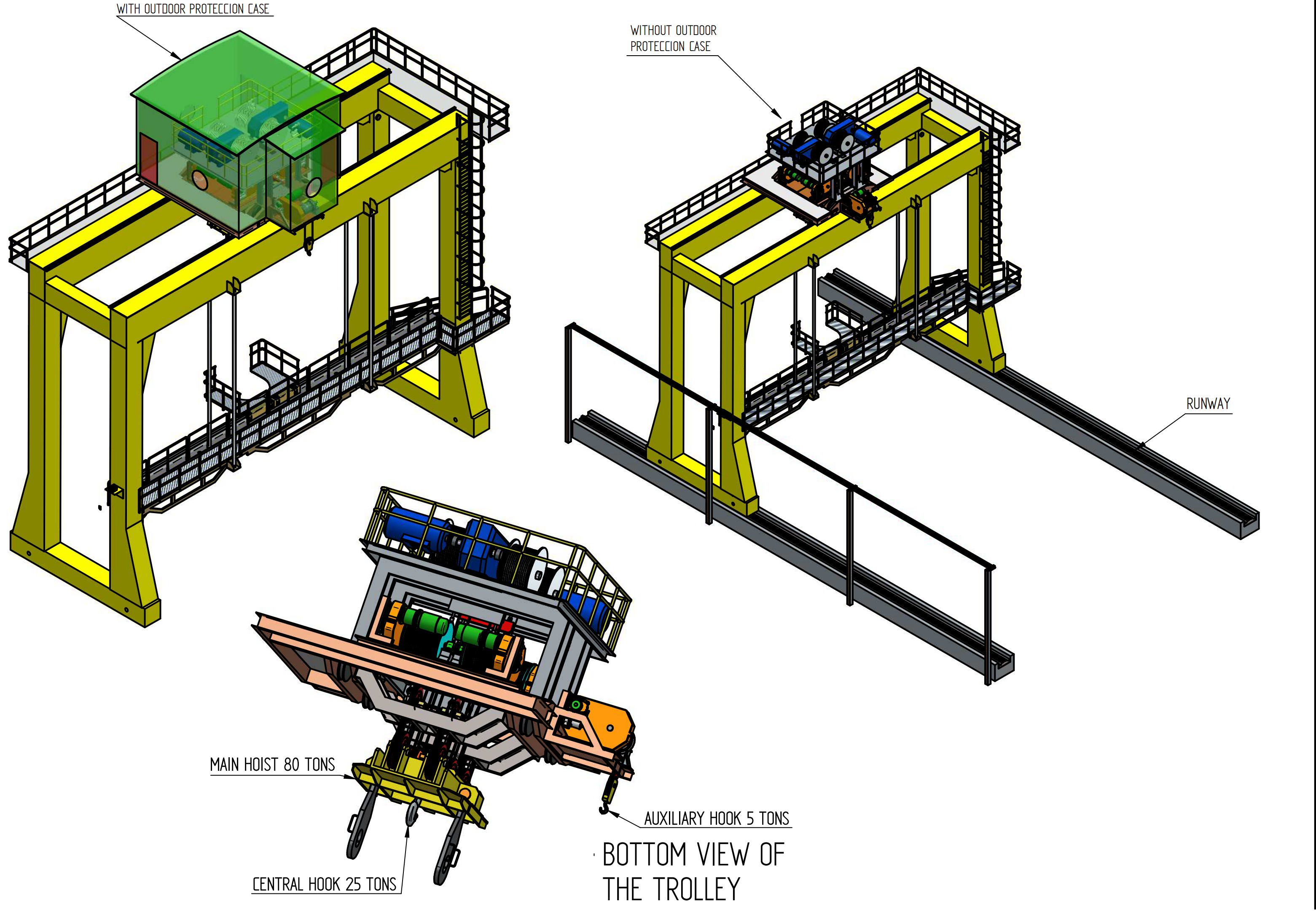

    • cask handling overhead crane (2)
    • cask handling overhead crane (3)
