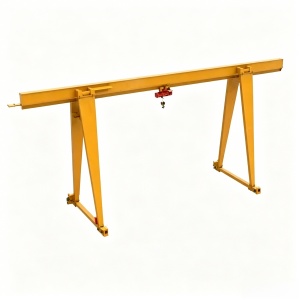

MH Type Single Girder Gantry Crane(Box Type)

Short Description:

MH type single girder gantry crane has box type and truss type, the former have good techniques and easy fabrication, the latter is light in dead weight and strong in wind resistance. For different usage, MH gantry crane also has cantilever and non cantilever gantry crane. If have cantilevers, the crane can load the goods to the crane edge through the supporting legs,which is very convenient and high efficiency.

The products meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane, eot crane, universal gantry crane, rubber tyre and rail mounted container gantry crane four link type portal crane,grab bucket crane, jib crane,marine decke crane,electric hoist,electric winch,mobile platforms and other types of hydraulic crane technical requirements.

Capacity: 5~20 t
Span: 12~30 m
Lifting Height: 6 m, 9 m, 12 m

  • Place of Origin: China , Henan
  • Brand Name: KORIG
  • Certification: CE ISO SGS
  • Supply Ability: 10000 Set/Month
  • Min.Order Quantity: 1 set
  • Payment Terms: L/C, T/T, Western Union
  • Delivery Time: 20~30 Workdays
  • Packaging Details: Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
  • Product Detail

    company information

    Product Tags

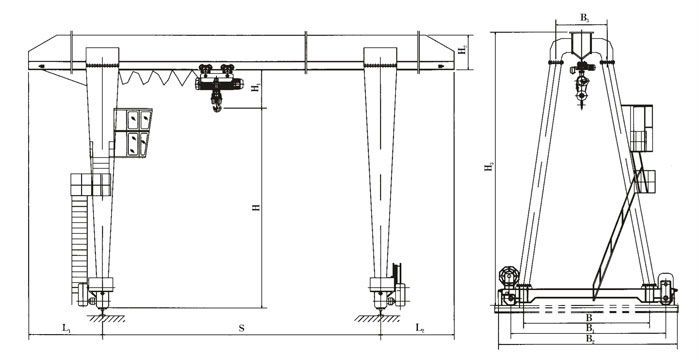

    It is consisted with gantry frame (main girder, legs, bottom end beams), lifting mechanism, travelling mechanism, and electrical control.
    It is used with matching CD1 or MD1 electric hoist, and is a light small crane with rail travelling.
    Widely used in workshop, storage, port and hydroelectric power station and some other outdoor places, where it has a low frequency or few lifting times.
    It is forbidden to be used with melt metal, inflammable, or explosive objects.
    It can be designed with one hanging arm or no-hanging arm according to client's demand.


    Lifting Capacity t 5 10 16 20
    Span m 12 16 20 24 12 16 20 24 30 12 16 20 24 30 12 16 20 24 30
    Lifting Height m 6 9 6 9 6 9 6 9 6 9 6 9 6 9 6 9 6 9 6 9 6 9 6 9 6 9 6 9 6 9 6 9 6 9 6 9 6 9
    By Hand Controller m
    In Cabin 20/30 20/30 20/30 20/30
    Motor By Hand Controller YSE802-4/0.8*2 YSE90L-4/1.5*2 YSE90L-4/1.5*2 YZR132M2-6/4*2 YZR160M1-6/6.3*2 YZR160M1-6/6.3*2 YZR160M2-6/8.5*2
    In Cabin ZDR100-4/1.5*2 ZDR112L-4/2.1*2 ZDR112L1-4/2.1*2 YZR132M2-6/4*2
    Gear Box LD-Drived ZSC600 ZSC600
    Wheel Diameter mm Φ270 Φ400 Φ600 Φ500 Φ600 Φ600
    Type CD1,MD1 CD1 HC
    Lifting Speed m
    8,8/0.8 7, 7/0.7 3.5
    Travelling Speed 20
    Motor Lifting ZD141-4/7.5  ZDS10.8/7.5 ZD151-4/13  ZDS11.5/13 ZD151-4/13 ZD152-4/18.5
    Travelling ZDY21-4/0.8 ZDY121-4/0.8*2 ZDY121-4/0.8*2 ZDY121-4/0.8*4
    Working Duty A3
    Steel Track Recommended P24 P38 P43
    Power Supply 3Phase,AC 380V 50Hz 3Phase,AC 380V 50Hz 3Phase,AC 380V 50Hz 3Phase,AC 380V 50Hz



    Simple structure; installation, use, and maintenance are all convenient.
    Parts standardization, generalization and seriation
    Good in usability and produce conveniently

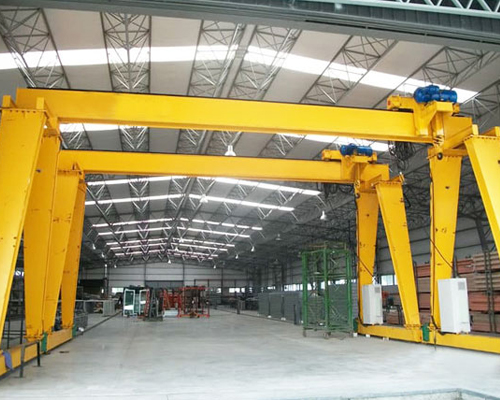

    • single-girder-gantry-crane-1

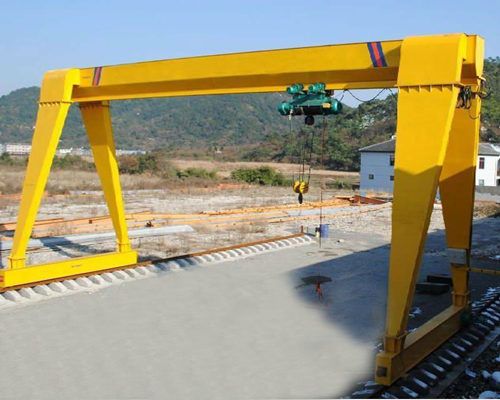

    • MH (2)

  • Previous:
  • Next:


    KOREGCRANES ( HENAN KOREGCRANES CO., LTD) located in crane hometown of China (cover more than 2/3 crane market in China), who is a trusted professional industry crane manufacturer and leading exporter. Specialized in design, manufacturing, installation and service of Overhead crane, Gantry crane, Port crane, Electric hoist etc, we have passed ISO 9001:2000, ISO 14001:2004, OHSAS 18001:1999, GB/T 19001-2000, GB/T 28001-2001,  CE, SGS, GOST, TUV, BV and so on.

    Product Application

    To meet the demands of the oversea market, we independent research and development European type overhead crane, gantry crane; electrolytic aluminium multi-purpose overhead crane, hydro-power station crane etc. European type crane with light dead weight, compact structure, lower energy consumption etc. Many main performance reach the industry advanced level.
    KOREGCRANES Widely used in machinery, metallurgy, mining, electric power, railway, petroleum, chemical, logistics and other industries. Service for hundreds of large enterprises and national key projects such as China Datang Corporation , China Guodian Corporation, SPIC, Aluminum Corporation Of China(CHALCO), CNPC, Power China , China Coal, Three Gorges Group, China CRRC, Sinochem International, etc.

    Our Marke

    Our cranes has been exported cranes to more than 110 countries for example Pakistan, Bangladesh, India, Vietnam, Thailand, Indonesia, Philippines, Malaysia、USA, Germany, France, Australia, Kenya, Ethiopia, Nigeria,Kazakhstan, Uzbekistan, Saudi Arabia、UAE、Bahrain、Brazil, Chile, Argentina, Peru etc and received good feedback from them. Very happy to be friends with each other come from all of the world and hope to establish long-terms good cooperation.

    KOREGCRANES has steel pre-treatment production lines, automatic welding production lines, machining centers, assembly workshops, electrical workshops, and anti-corrosion workshops. Can independently complete the whole process of crane production.
